Manual Stitching Machine With Double Servo Control High Speed
Manual Stitching Machine With Double Servo Control High Speed
Specifications
Brand Name :
GERUN
Model Number :
GR
Certification :
ISO,CE
Place of Origin :
Dongguang，China
MOQ :
1
Price :
USD1000~2000/set
Payment Terms :
T/T
Supply Ability :
30set/month
Delivery Time :
10~15 work days
Packaging Details :
Plastic film covering or wooden case packaging(choosed)
Product name :
Manual Stitching Machine With Double Servo
Model :
DX-600/900/1200/1400/1600/1800
Stitching speed :
120~250 nails/min
Material thickness :
3/5/7layers
Length of arm :
600/900/1200/1400/1600/1800
Dimension :
1100*600*1760~2300*700*1820
Weight（Kg） :
300/400/600/800/900/1000
Power :
0.25/0.37/0.37/0.75/0.75/1.1 Kw
Stitching wire :
16#/17#/18#/20#
Description

Manual Stitching Machine with Double Servo

The machine uses advanced electronic brake and clutch electronic devices (from Taiwan) to replace the traditional mechanical clutch operation to be controlled. With high efficiency, energy-less novel, electronic assembly, the failure rate is low, and made reference, easy to operate and so on. Available for one-way or two-binding, medium-sized carton boxes.

Main Features:

1. Servo motor and driver improve the accuracy and service life of the nail box machine.
2. Speed control function, 150-450 nails per minutes, there is no limit to the proficiency of workers.
3. The head structure is simple and easy to maintain, Using cam drive, The blade uses an alloy

blade, connecting rod with bearing connection, reducing wear and provide service life.
4. The feeder adopts servo control, the pitch is accurate, No technical requirements for the operator

Speicifcations:

Model Staling speed Thickness of stapling Length of arm Shape size(mm) Weight(kg) Power required(KW) Flat wire
DX-600 120 3,5 layer 600 1100*600*1760 300 0.25 18#,20#
DX-900 250 3,5,7 900 1400*600*1760 400 0.37 16#,17#,18#
DX-1200 250 3,5,7 1200 1700*700*1820 600 0.37 16#,17#,18#
DX-1400 250 3,5,7 1400 1900*700*1820 800 0.75 16#
DX-1600 250 3,5,7 1600 2100*700*1820 900 0.75 16#
DX-1800 250 3,5,7 1800 2300*700*1820 1000 1.1 16#
Manual Stitching Machine With Double Servo Control High Speed
Manual Stitching Machine With Double Servo Control High Speed

Our company
Manual Stitching Machine With Double Servo Control High SpeedManual Stitching Machine With Double Servo Control High Speed

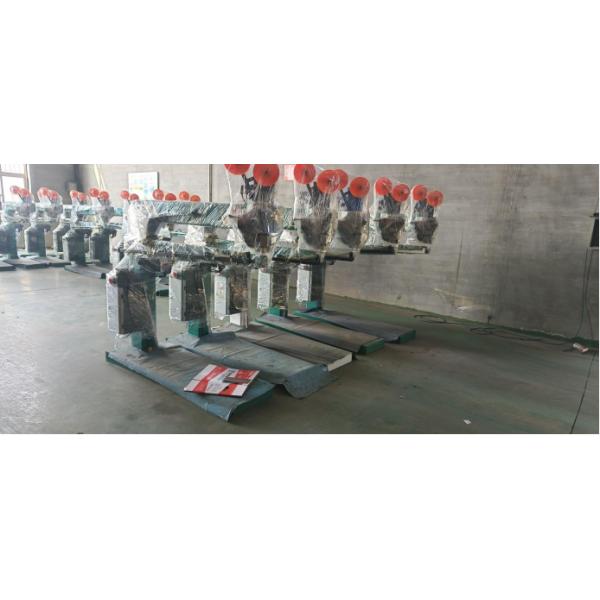

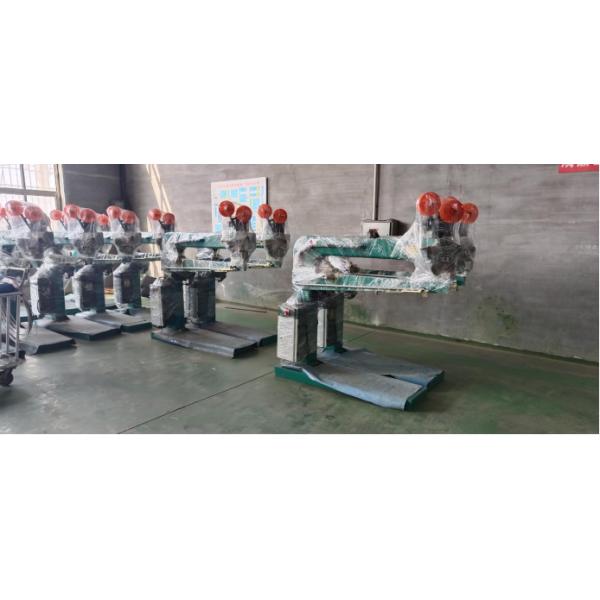

Product packaging
Manual Stitching Machine With Double Servo Control High Speed
