Specifications
Brand Name :
GERUN
Model Number :
GR
Certification :
ISO,CE
Place of Origin :
Dongguang，China
MOQ :
1
Price :
USD10,000~100,000/set
Payment Terms :
T/T
Supply Ability :
30set/month
Delivery Time :
30-60days
Packaging Details :
Plastic film covering or wooden case packaging(choosed)
Working width :
1600mm
Design speed :
150m/min
Economic speed :
180-230m/min
Hot plate number :
600mm X 10piece
Cooling section length :
5m
Temperature requirements :
160-200℃
Steam pressure :
0.8-1.3Mpa
Air pressure :
0.5-0.6Mpa
Pneumatic pressure plate :
13 groups
Working power :
380V 50Hz 90KW
Description

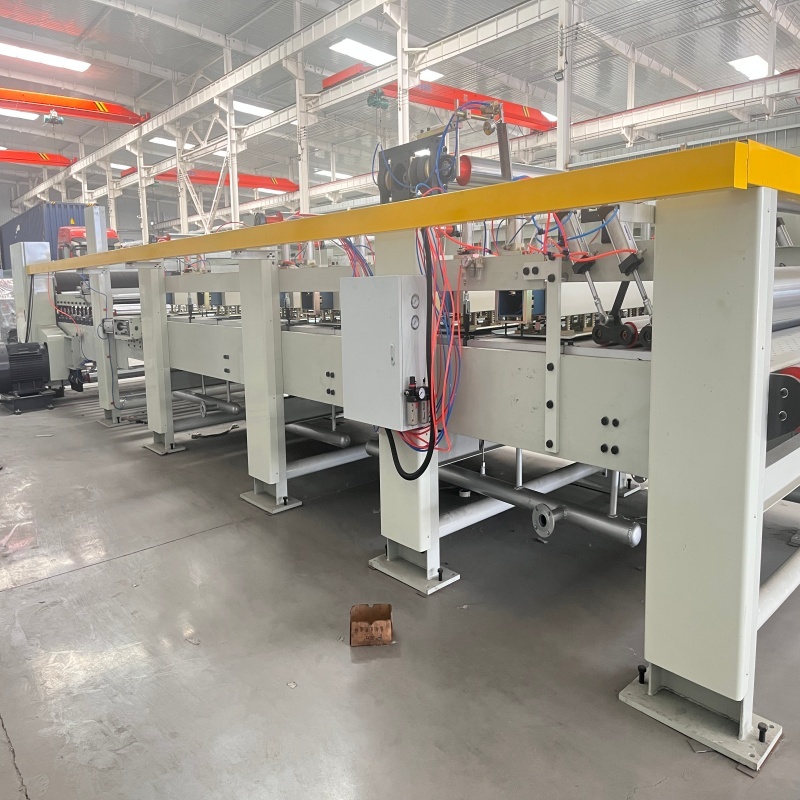

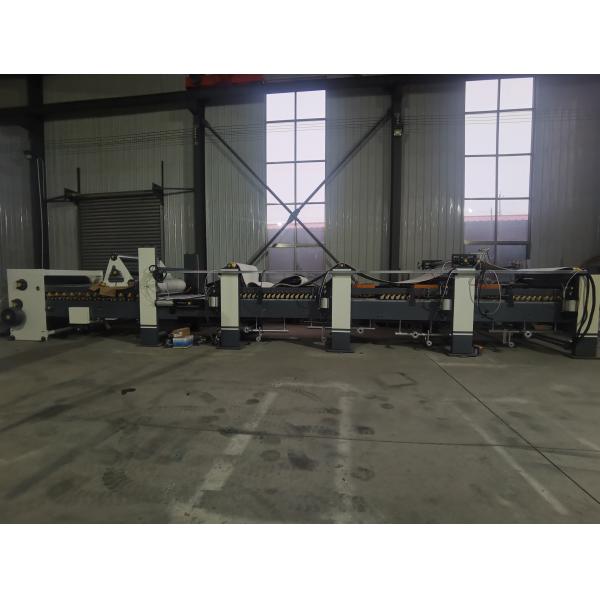

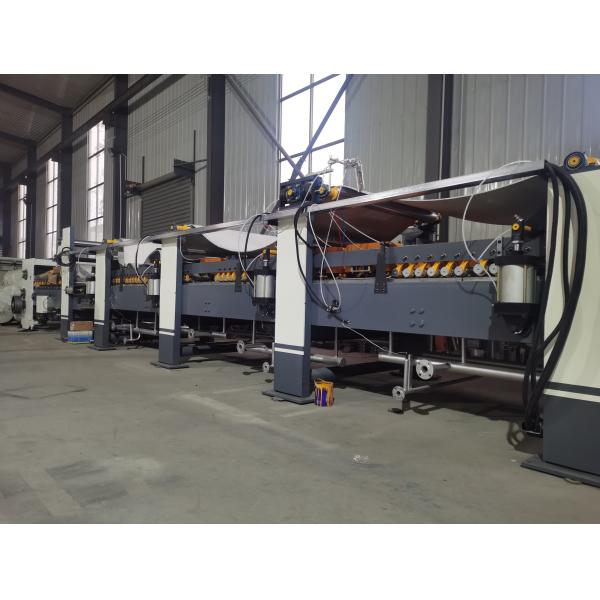

Double Facer For Corrugated Cardboard Production Line
The double facer, also known as the double backer, is the "forming hub" of a corrugated board production line. It is responsible for bonding single-face corrugated board with a liner (face sheet) and pressing them into sturdy double-wall or multi-wall corrugated board. It is a key piece of equipment that determines the final physical strength and quality of the board.
Technical Specifications
Effective Width1600mmDesign Production Speed150m/min
Three Layer Economic Speed200-230m/minLongitudinal Separation Accuracy±1mm
Cross-cutting Precision±1mmWorking Width1600mm
Design Speed150m/minEconomic Speed120-130m/min
Hot Plate Number600mm×10 piecesCooling Section Length5 meters
Temperature Requirements160-200℃Steam Pressure0.8-1.3Mpa
Air Pressure0.5-0.6MpaPneumatic Pressure Plate13 groups
Working Power380V 50Hz 90KW
Double Facer For Corrugated Cardboard Production Line Heavy Pressing Rollers
Structural Features
  • The double-sided machine bonds single-sided corrugated paper and facial paper through laminated, heated platen heating, glue paste, and stereotypes to produce flat cardboard
  • Hot plate surface is ground finished, with 18 pieces of 600mm wide hot plates and 5m cooling stereotypes section
  • Hot plates made from container board with enclosed pressure container certification and inspection certificates
  • Internal thermal panels feature partition isolation structure with S-shaped steam flow and steam-water separation function

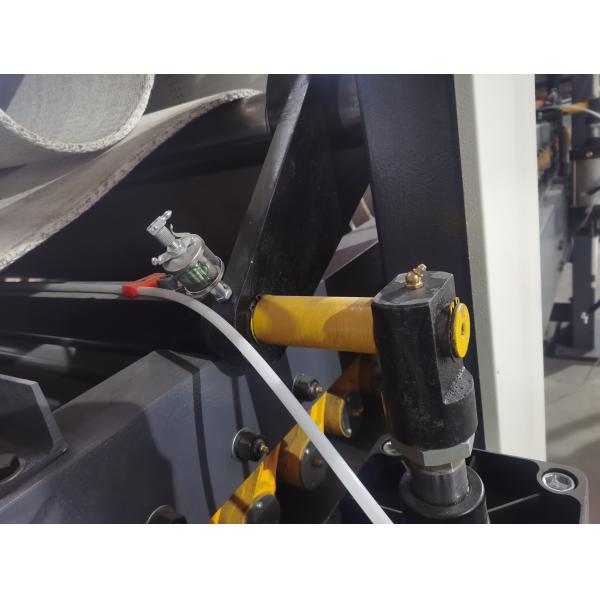

  • Pneumatic pressure plate structure with 14 sets of spring pneumatic pressure plates standard
  • Multi-section temperature control with temperature display for heating plate heat pipes

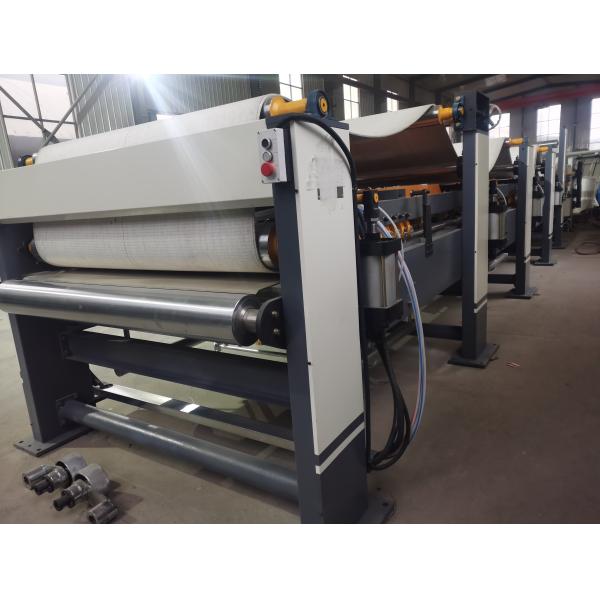

  • Upper cotton webbing automatically centered with double cylinder S-shaped cotton web tensioning device
  • Lower belt uses pneumatic tensioning mechanism with automatic left-right correction and manual adjustment capability
  • Independent gearbox drive unit with ZG-500 steel gears and oil-immersed lubrication
  • International brand electrical components for stable and reliable operation
  • Main drive motor features frequency energy, low-speed torque, wide speed range, and easy maintenance
  • High-intensity profile main backbone with solid structure suitable for high-speed operation
Production Line Position and Process Flow
The double facer is typically located after the single facer and before the dryer/cooler section, serving as a connecting link in the corrugated board production process.
Typical Production Flow:
Single-face corrugated board → Double facer (adhesive application, liner lamination, heating/pressing) → Drying and Cooling → Slitting and Scoring → Stacking
Main Types and Selection Reference
  • Heated-Plate Double Facer: Most common type using upper and lower heated plates for pressure. Large contact area, suitable for medium- to high-speed production lines
  • Vacuum-Assisted Double Facer: Uses vacuum belt for transport, reducing friction between board and heated plates. Suitable for heavyweight, high-strength boards
  • Air-Cushion Double Facer: Provides even pressure, suitable for producing thin or lightweight boards, effectively preventing flute crush
Key Operational and Maintenance Points
  • Temperature Control: Heated plate temperature must match line speed. Higher speeds require higher temperatures to ensure complete adhesive gelatinization
  • Pressure Adjustment: Excessive pressure flattens flutes (flute crush), reducing strength; insufficient pressure leads to poor bonding
  • Routine Maintenance: Focus on cleaning heated plate surfaces to prevent carbon buildup affecting heat transfer; check canvas belt or conveyor belt tension to ensure smooth transport
Double Facer For Corrugated Cardboard Production Line Heavy Pressing Rollers Double Facer For Corrugated Cardboard Production Line Heavy Pressing Rollers Double Facer For Corrugated Cardboard Production Line Heavy Pressing Rollers Double Facer For Corrugated Cardboard Production Line Heavy Pressing Rollers Double Facer For Corrugated Cardboard Production Line Heavy Pressing Rollers
Packing and Shipping
Adopts moisture-proof and shock-proof packaging suitable for long-distance road transportation and various weather conditions. A full set of maintenance and operation manuals is included.
Double Facer For Corrugated Cardboard Production Line Heavy Pressing Rollers
Our Services
Double Facer For Corrugated Cardboard Production Line Heavy Pressing Rollers Double Facer For Corrugated Cardboard Production Line Heavy Pressing Rollers
