Double Facer For Corrugated Cardboard Production Line Pressing Plate Hot Plate
Double Facer For Corrugated Cardboard Production Line Pressing Plate Hot Plate
Double Facer For Corrugated Cardboard Production Line Pressing Plate Hot Plate
Double Facer For Corrugated Cardboard Production Line Pressing Plate Hot Plate
Double Facer For Corrugated Cardboard Production Line Pressing Plate Hot Plate
Double Facer For Corrugated Cardboard Production Line Pressing Plate Hot Plate
Double Facer For Corrugated Cardboard Production Line Pressing Plate Hot Plate
Double Facer For Corrugated Cardboard Production Line Pressing Plate Hot Plate
Double Facer For Corrugated Cardboard Production Line Pressing Plate Hot Plate
Double Facer For Corrugated Cardboard Production Line Pressing Plate Hot Plate
Double Facer For Corrugated Cardboard Production Line Pressing Plate Hot Plate
Double Facer For Corrugated Cardboard Production Line Pressing Plate Hot Plate
Specifications
Brand Name :
GERUN
Model Number :
GR
Certification :
ISO,CE
Place of Origin :
Dongguang，China
MOQ :
1
Price :
USD10,000~100,000/set
Payment Terms :
T/T
Supply Ability :
30set/month
Delivery Time :
30-60days
Packaging Details :
Plastic film covering or wooden case packaging(choosed)
Working width :
1600mm
Design speed :
150m/min
Economic speed :
180-230m/min
Hot plate number :
600mm X 10piece
Cooling section length :
5m
Temperature requirements :
160-200℃
Steam pressure :
0.8-1.3Mpa
Air pressure :
0.5-0.6Mpa
Pneumatic pressure plate :
13 groups
Working power :
380V 50Hz 90KW
Description
Double Facer for Corrugated Cardboard Production Line
The double facer, also known as the double backer, serves as the forming hub of a corrugated board production line. This critical equipment bonds single-face corrugated board with a liner (face sheet) and presses them into sturdy double-wall or multi-wall corrugated board, determining the final physical strength and quality of the finished product.
Core Function: Transforming Semi-Finished to Finished Product
While the single facer produces corrugated medium with one liner attached (single-face board), the double facer completes the manufacturing process:
  • Bonding and Curing: Applies adhesive to flute tips and precisely laminates with another liner
  • Shaping and Pressing: Applies pressure and heat through heated plates to gelatinize and cure adhesive, forming stable arch bridge structures
Key Performance Specifications
Effective Width1600mm
Design Production Speed150m/min
Three Layer Economic Speed200-230m/min
Longitudinal Separation Accuracy±1mm
Cross-Cutting Precision±1mm
Technical Parameters
Working Width1600mm
Design Speed150m/min
Economic Speed120-130m/min
Hot Plate Configuration600mm × 10 pieces
Cooling Section Length5 meters
Temperature Requirements160-200℃
Steam Pressure0.8-1.3Mpa
Air Pressure0.5-0.6Mpa
Pneumatic Pressure Plate13 groups
Working Power380V 50Hz 90KW

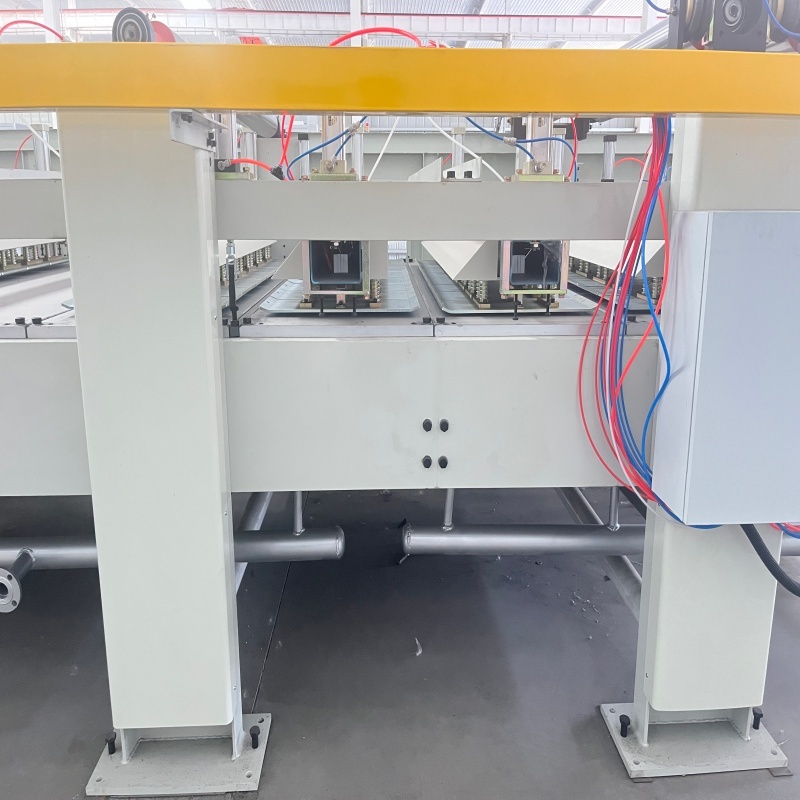

Double Facer For Corrugated Cardboard Production Line Pressing Plate Hot Plate
Structural Features
★The double-sided machine laminates glued single-sided corrugated paper with facial paper using heated platen heating for glue paste application and stereotyping to produce flat cardboard.
★Hot plate surface is ground finished, with 18 pieces total at 600mm width each, featuring 5-meter cooling stereotypes. Hot plates use container board construction with enclosed pressure certification.
★Internal thermal panels feature partition isolation structure with S-shaped steam flow and steam-water separation for improved efficiency.
★Pneumatic pressure plate structure with 14 sets of spring pneumatic pressure plates as standard.
★Multi-section temperature control with display for heating plate heat pipes.
★Upper cotton webbing with automatic centering and double cylinder S-shaped tensioning device.
★Lower belt with pneumatic tensioning and automatic/manual correction alignment.
★Independent gearbox drive unit with ZG-500 steel gears and oil-immersed lubrication.
★International brand electrical components for stable, reliable operation.
★Frequency energy main drive motor with low-speed torque and wide speed range.
★High-intensity profile main backbone with solid construction suitable for high-speed operation.
Main Component Parameters
Part NameSpecificationSurface Treatment
Upper Drive Rubber Roller￠800mmWear-resistant rubber cover
Lower Drive Rubber Roller￠600mmWear-resistant rubber cover
Front/Rear Driven Belt Roller￠215mmChrome plating polishing
Top Tension Roller￠155mmChrome plating polishing
Upper Belt Adjustment Roller￠130mmChrome plating polishing
Equipment Gallery
Double Facer For Corrugated Cardboard Production Line Pressing Plate Hot Plate Double Facer For Corrugated Cardboard Production Line Pressing Plate Hot Plate Double Facer For Corrugated Cardboard Production Line Pressing Plate Hot Plate Double Facer For Corrugated Cardboard Production Line Pressing Plate Hot Plate Double Facer For Corrugated Cardboard Production Line Pressing Plate Hot Plate
Packing and Shipping
Equipment is packaged with moisture-proof and shock-proof materials suitable for long-distance road transportation and various weather conditions. Complete set of maintenance and operation manuals included with each shipment.
