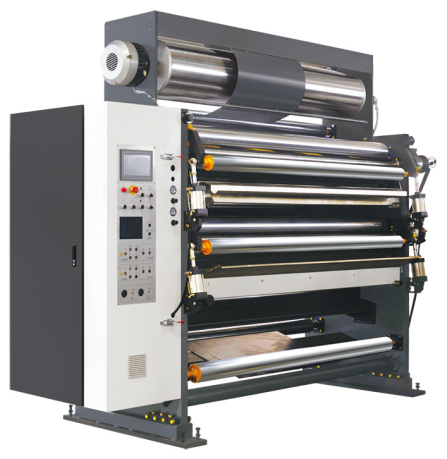

Double Glue Machine For 5 Layers Corrugated Cardboard Production Line
Double Glue Machine For 5 Layers Corrugated Cardboard Production Line
Specifications
Design speed :
200m/min
Brand Name :
GERUN
Model Number :
GR-DG
Certification :
ISO,CE
Place of Origin :
Dongguang，China
MOQ :
1
Price :
USD1000~10,000/set
Payment Terms :
T/T
Supply Ability :
30set/month
Delivery Time :
25-60days
Packaging Details :
Plastic film covering or wooden case packaging(choosed)
Working width :
2200mm
Number of anilox roller :
32lines
Pressing method :
Pneumatic
Preheating cylinder Temperature range :
150-200℃
Economic speed :
130-200m/min
Glue volume adjustment range :
0.08-0.6mm
Working power :
380V 50Hz 9KW
Air source system :
0.4-0.9Mpa
Description

Double Glue Machine For 5 Layers Corrugated Cardboard Production Line

A,Technical parameters:

Working width 2200mm
Design speed 200m/min
Economic speed 130--200m/min
Glue volume adjustment range 0.08-0.6mm
Number of anilox roller 32 lines
Preheating cylinder temperature range 150—200℃
Working power 380V 50Hz 9KW
Air source system 0.4—0.9Mpa
Pressing method Pneumatic


B,Structural feature:

★The double glue machine is a corrugated paper conveyed from the flyover. After preheating, it is coated again with glue and then pasted into the double-sided machine to paste and bond to produce three-layer five-layer cardboard.
★Frame cast iron structure, stable performance, upper middle layer preheater diameter 400mm, increase paper temperature to facilitate glue paste, double pressure roller design glue evenly, stainless steel glue groove, automatic circulation glue supply.
★after quenched of the glue roller surface,the hole machining, surface grinding and doing balancing engraved anilox pit type, coating evenly, less consumption of plastic.
★The transmission of the glue unit is directly connected by the frequency conversion motor through the reducer, and the frequency conversion control ensures that the linear speed of the glue roller is synchronized with the double-sided machine and can operate independently. Use angle sensor, PLC, touch screen man-machine interface display. According to different paper quality, different speeds automatically control the amount of glue, according to the different corrugated shape automatically adjust the gap between the pressure rollers, without accumulating errors.


C,Main component parameters:


Part name

Craftsmanship

 Specification Surface treatment
Glue roller ￠268mm Round grinding and pressing pit mesh chrome plating
Fixed paste roller ￠146mm Round grinding chrome
Pressure roller ￠150mm Round grinding chrome
Paper shaft ￠110mm Round grinding chrome
Preheating cylinder ￠400mm Round grinding chrome


D,Main dynamic parameters:

Name Power Voltage Frequency
Rubber roller active motor 3KW*2 380V 50HZ
Glue adjustment speed reducer 200W 380V 50HZ
Roller gap adjustment motor 200W 380V 50HZ
Rubber pump motor 2.2KW 380V 50HZ


E,Main parts brand and origin:

Serial number Name of main parts Brands or place of origin Remarks
01 Glue roller and paste roller Tiangang 45# steel
02 Preheat roller Tiangang or Jigang Q235B Container board
03 Bearing Japan NSK
04 Bearing with seat FuJian
05 Pneumatic Components AirTac
06 Low-voltage electrical appliances SIMENS Contactor, relay, button
07 Glue reducer Taiwan city-state or Wanxin
08 Main reducer Taiwan city-state or Wanxin
09 Touch screen Taiwan Vinylon or Kunlun Tongtai 10.4 inch
10 PLC and inverter SIMENS
11 Timing belt Germany OPTIBELT
12 Trap Armstrong, United States Float
