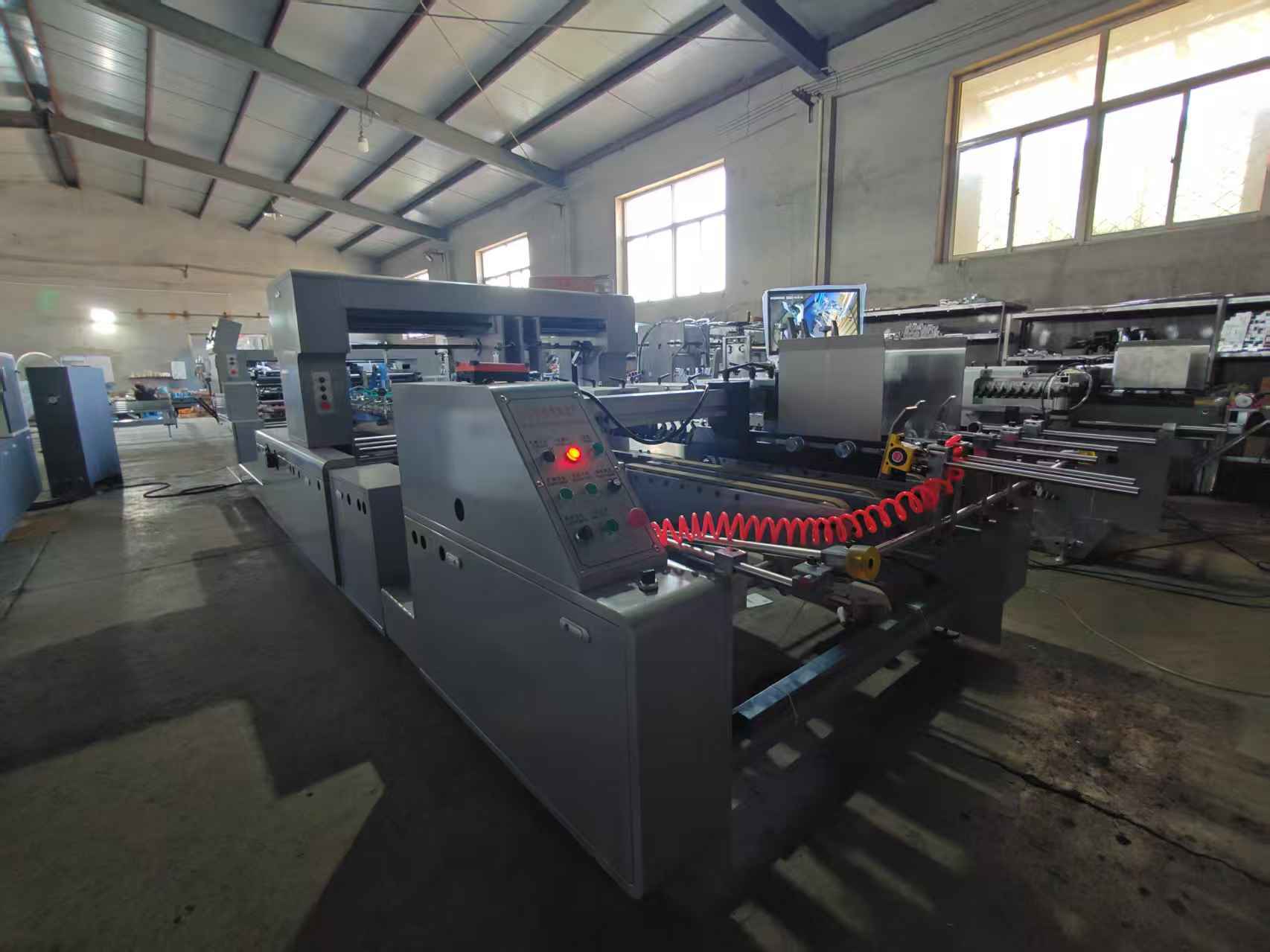

PT-A1250 Fully Automatic Double-correction Model Box Folding Gluing Machine with 0-300m/min Speed
PT-A1250 Fully Automatic Double-correction Model Box Folding Gluing Machine with 0-300m/min Speed
Specifications
Certification :
CE,ISO
keywords :
cosmetic box folding gluing
Model Number :
PT-A1250
Function :
paperboard folding gluing
MOQ :
1 sets
Delivery Time :
30-60days
Automatic grade :
Fully automatic
Payment Terms :
L/C,T/T,Western Union
Price :
To be negotiated
Color :
as request
Supply Ability :
10 sets/month
Brand Name :
GR
Warranty :
1 year
Packaging Details :
Wooden case packaging(optional) or well packed plastic film packaing
Place of Origin :
Hebei province,China
Speed :
0-300m/min
Description
PT-A1250 Double-correction Model Box Folding Gluing Machine
Product Overview

Automatic Crash Bottom Lock Potato Chips Boxes Folder Gluer Gluing Machine is the most competitive multi-functional folder gluer machine designed by our company independently. It can fold and glue many simple and complicated carton boxes.

Its ease of use, attractive pricing and broad scope of application make a new leap in folder gluer machine field. It combines a variety of folder gluer characteristics and changes many disadvantages of crash lock bottom folder gluer machines, such as complicated structure, difficult operating and high cost.

This machine is ideal for the current packaging and printing industry-competitive business with variety, small quantities, and tight delivery schedules.

PT-A1250 Fully Automatic Double-correction Model Box Folding Gluing Machine with 0-300m/min Speed
Technical Specifications
Parameter Specification
Line Speed 0-180m/min, Continuous adjustment
Usage Paper 210-800 g/ms, paperboard A/B/C/E/F 3-fly corrugated cardboard and 5-fly corrugated cardboard
Box Forming Bottom-lock, straight line box, double walls box
Fold Method 1st folds 180°, 3rd folds 90°, 2nd & 4th folds 180°
Paper Feeding Automatic feeding, grinding unit
Electric Power 11kw
Dimension 14*2*1.6m
Weight 5600kg
Condition New
PT-A1250 Fully Automatic Double-correction Model Box Folding Gluing Machine with 0-300m/min Speed
Machine Components & Features
PT-A1250 Fully Automatic Double-correction Model Box Folding Gluing Machine with 0-300m/min Speed
Paper Feeding Section

6pcs adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding. Continuously Variable Speeder to ensure feeding internal and stable transmission. One-touch Pneumatic knife for easy adjustment of feeding belts.

Aligner Section

Equipped with auto-correction device to correct the obliquity and ensure the correct feeding.

PT-A1250 Fully Automatic Double-correction Model Box Folding Gluing Machine with 0-300m/min Speed
PT-A1250 Fully Automatic Double-correction Model Box Folding Gluing Machine with 0-300m/min Speed
Pre-folding Section

Double-board structure with a set of pre-folding knife. Pre-fold angle is 180° and 135°, especially suitable for small but high cartons, more satisfactory while rapid prototyping.

Lower Gluing Tank

Equipped with the lower gluing tank for efficient adhesive application.

PT-A1250 Fully Automatic Double-correction Model Box Folding Gluing Machine with 0-300m/min Speed
PT-A1250 Fully Automatic Double-correction Model Box Folding Gluing Machine with 0-300m/min Speed
Folding and Closing

The folding is equipped with driving belt, folding belts have corrective function, extension work, making the box forming more stable.

Trombone Section

Adjust the pressure easily and reliably to ensure gluing quality. Equipped with pneumatic counting device for convenient counting. The press has independent speeder allowing operators to set collecting speed.

PT-A1250 Fully Automatic Double-correction Model Box Folding Gluing Machine with 0-300m/min Speed
Transmission System

Press: Equipped with one-touch pneumatic pressure adjustment for easy operation. Press has two functions: 1. Waiting Function - when feeding is paused, press will auto enter waiting state. 2. Travel switch - pauses the machine in case of wrong collecting.

PT-A1250 Fully Automatic Double-correction Model Box Folding Gluing Machine with 0-300m/min Speed
Packing and Shipping

Adopts moisture-proof and shock-proof packaging suitable for long-distance road transportation and various weather conditions. A full set of maintenance and operation manuals is included.
