Semi Automatic ML1500 Die Cutting and Creasing Machine with Electric Suction Plate Brake Clutch and Four Insurance Parts
Semi Automatic ML1500 Die Cutting and Creasing Machine with Electric Suction Plate Brake Clutch and Four Insurance Parts
Semi Automatic ML1500 Die Cutting and Creasing Machine with Electric Suction Plate Brake Clutch and Four Insurance Parts
Semi Automatic ML1500 Die Cutting and Creasing Machine with Electric Suction Plate Brake Clutch and Four Insurance Parts
Specifications
MOQ :
1 sets
Delivery Time :
30 days
After-sales service provided :
Online support; Video technical support
Price :
To be negotiated
Usage :
Die Cutting Papercard
Packaging Details :
Wooden case packaging(optional) or well packed plastic film packaing
Model Number :
ML1500
Type :
Manual
Payment Terms :
L/C,T/T,Western Union
Color :
Dark Blue
Supply Ability :
50 sets/month
Packaging type :
Wooden
Certification :
CE, ISO
Speed :
0-20pieces/min
Place of Origin :
China
Condition :
New
Brand Name :
GR
Warranty :
1 year
Description

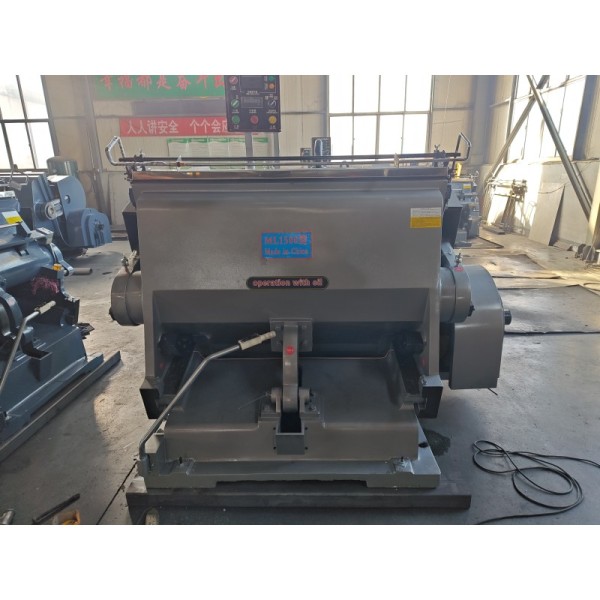

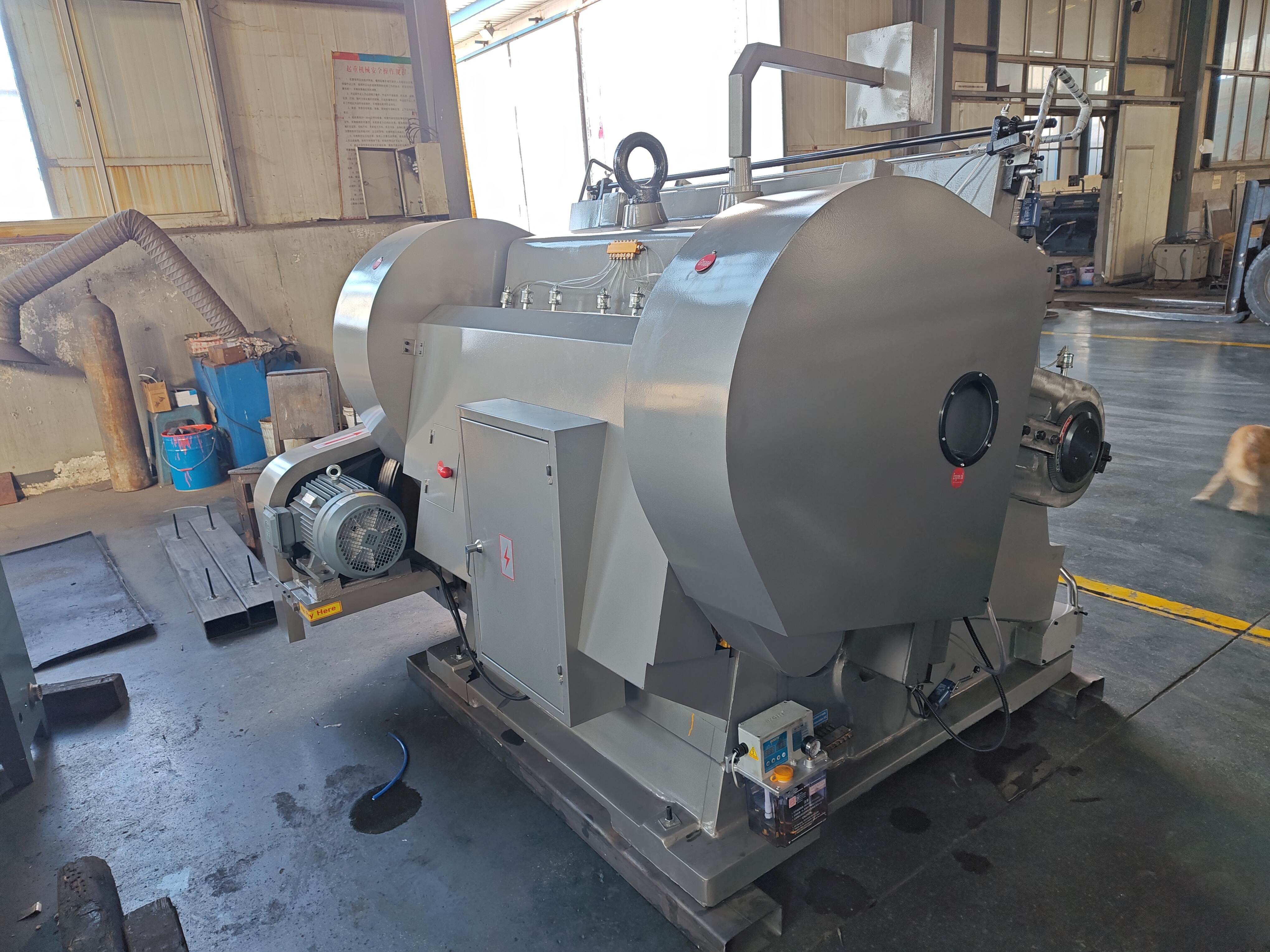

Semi Automatic ML1500 Die Cutting Machine And Creasing Machine

Semi Automatic Corrugated Carton Die Cutting Machine ML1500 With Electric Suction Plate Brake Clutch And Four Insurance Parts For Operation

ML1500 Semi Automatic Corrugated Carton Die Cutting Machine featuring four insurance parts and electric suction plate brake clutch. This semi-automatic die cutting and creasing machine delivers reliable performance for corrugated carton production.

Semi Automatic ML1500 Die Cutting and Creasing Machine with Electric Suction Plate Brake Clutch and Four Insurance Parts
Key Features & Functions
  • Equipped with four insurance parts for enhanced safety: gantry insurance, triangle insurance, hand shank insurance, and automatic light-operated insurance
  • Electric suction plate brake clutch provides sensitive and reliable braking performance
  • Adjustable template system for easy plate loading and unloading with automatic centralized oil supply
  • Three operational modes: single piece pressing cutting, continuous pressing cutting, and adjustable time-delay when starting
Semi Automatic ML1500 Die Cutting and Creasing Machine with Electric Suction Plate Brake Clutch and Four Insurance Parts
Technical Specifications
Model ML1500
Maximum Effective Size 1500 * 1050 mm
Working Speed 18 ± 2 sheets/min
Creasing Length < 45 m
Motor Power 7.5 kW
Net Weight 6100 kg
Overall Size 2000 * 2500 * 1930 mm
Packaging & Shipping
  • Moisture-proof and shock-proof packaging suitable for long-distance road transportation
  • Designed to withstand various weather conditions during transit
  • Includes complete set of maintenance and operation manuals
Semi Automatic ML1500 Die Cutting and Creasing Machine with Electric Suction Plate Brake Clutch and Four Insurance Parts
