Specifications
Production Capacity: :
7500pcs/hour
Type: :
Die-cutting Machine
Size :
1300x980mm
Warranty :
12 months
After-sales Service Provided: :
YES
Product name :
Die Cutting Machine,carton box platform die cutting machine/ cardboard platform die-cutter
Brand Name :
GERUN
Model Number :
1300
Certification :
CE,ISO
Place of Origin :
Hebei province,China
MOQ :
1 sets
Price :
To be negotiated
Payment Terms :
Western Union
Supply Ability :
10 sets/month
Delivery Time :
30-60days
Packaging Details :
Wooden case packaging(optional) or well packed plastic film packaing
Function :
Creasing and die cutting
Computerized: :
YES
Warranty: :
1 year
Type :
Die-cutting Machine,Punching Machine
Voltage :
380V
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Online support
Application :
For cardboard die cutting
Condition :
New
Computerized :
Yes
Description

Auto Carton Platform Paper Punching Die Cutting &Creasing Press Machine Price

Introduction


Auto Carton Platform Paper Punching Die Cutting &Creasing Press Machine Price can process flat paper,

cardboard and corrugated paper.

It is suitable for die cutting indentation and cold pressing of paper boxes, cartons, paper trademarks, etc.

In particular, all kinds of high-end and exquisite printed materials (such as wine boxes,

gift boxes, cosmetic boxes, etc.) can be die-cut and indented on this machine to obtain three-dimensional,

exquisite and beautiful packaging products.

This machine realizes the automation of the paper feeding, die cutting, and paper delivery processes.

Use the "human-machine interface" to display the machine's working speed, the number of processed

sheets, the total running time and working status of the machine; Realize dynamic monitoring of the

input points, output points and various faults of the programmable controller, so as to troubleshoot and

operate more convenient.


Advantage:
1 Complete design, accurate installation, high stability, high security, low noise.
2 Adopt worm, worm gear, crankshaft transmission, high cutting pressure, high durability.
3 High precision intermittent mechanism, high cutting precision, running steadily.
4 Adopt European technology feeder, suction adjustable, steadily, precise, good paper applicability.
5 Non-stop feeding, pre-stacking and delivery device can shorten the auxiliary time, improve the efficiency.
6 Automatic pressure adjust system, pressure digital display.
7 Human-friendly designed die frame and baseplate, makes installation, adjustment convenient.
8 Pneumatic die locking device, die frame fixed more steadily, accurately, time saving.
9 Front lay, side lay, feeding device fine tuning device, paper positioning more accurate,
10 Double, crooked, empty optoelectronic position control, ensure the paper in the right position, reduce waste.
11 Electronic control module design, adopt imported electronic components, ensure the accuracy and reliability.
12 Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, trouble clearing more convenient.
13 Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.

Auto Carton Paper Press Die Cutter Stacker Flat Bed Die Punching Machine

Parameters


Main technical specifications
Max. paper size 1320*980mm
Min. paper size 350 x 450mm
Max. die-cutting size 1300*960 mm
Feeding materials 200~2000g/m²cardboard,corrugated paper board <8mm

Min.

Size in mouth

8mm
Max. cutting speed 5500sheets/hr
Max. die-cutting pressure 350ton
Power required 18kw
Compressed air pump Air compressor discharge capacity 0.36m3 / min (cubic / minute) --- User-supplied
Power supply 380V triple phase 50HZ
Net weight 16.5ton
Dimensions 6500x 2300 x 2346 mm(length x width x height)

Detailed Images

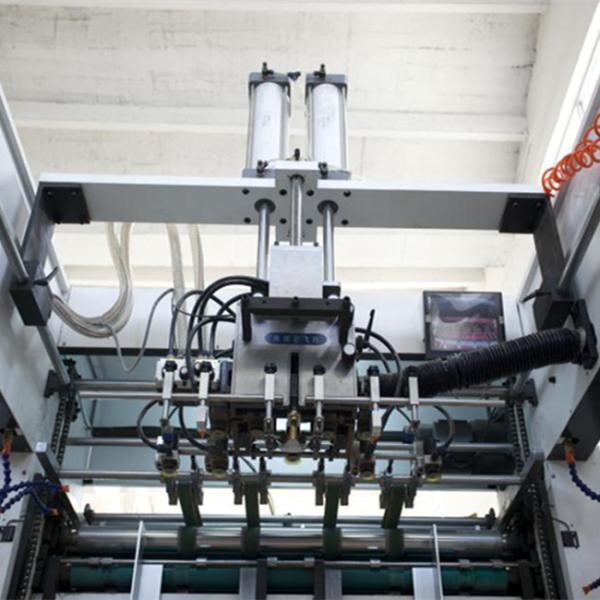

Feeder feeding unit

Host machine unit

German IWIS chain & aviation aluminum tooth row

Die cutting unit

Waste remove unit(Optional)

Stacking unit

Packing and Shipping

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road

transportation and various types of weather conditions. A full set of maintenance and operation

manuals is included.
