Speed 150 Pcs / Min Automatic Feeding Flexo Carton Printer Slotter Die Cutter Packing Machine
Speed 150 Pcs / Min Automatic Feeding Flexo Carton Printer Slotter Die Cutter Packing Machine
Speed 150 Pcs / Min Automatic Feeding Flexo Carton Printer Slotter Die Cutter Packing Machine
Speed 150 Pcs / Min Automatic Feeding Flexo Carton Printer Slotter Die Cutter Packing Machine
Specifications
Brand Name :
ZhaoLI
Model Number :
2600 * 1200 mm
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 55000 Per Set
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
3 Set Per Month
Delivery Time :
50- 70 work days
Packaging Details :
PE film packing . the whole machine is all wrapped with PE film
Machine Name :
Automatic Corrugated Flexo Printing Slotting Machine
Speed :
150 pcs / min
Max feeding area :
2600 * 1200 mm
Max Printing Area :
1400 * 1200 mm
Machine color :
as customers wish
Die cutting :
Dependent servo motor
Description

Speed 150 Pcs / Min Automatic Feeding Flexo Carton Printer Slotter Die Cutter Packing Machine

The machine introduction and function

1 The whole machine adpots famous electricity appliances , france Shediner .

2 The machine gears adopts 40GR by high frequency hardening , which can achieve six level of accuacty.

3 In order to increas the hardness of the shaft , all the shaft adopt high frequency quenching and polishing - gear .

4 The machine PLC touch screen adopt international brand .

5 Automatically changes return zero and correct the plate position .

6 The side baffle plate of feeding department and the grooving department are adjust by PLC electrically .

The machine main paremeter

Item 2600 * 1200 model type
Wallboard medial width 50 mm
The diameter of the anilox 405 mm
Max feeding paperboard size 2600 mm*1200 mm
Max effective printing size 240 mm*1200 mm
Min process paperboard size 280 mm*600 mm
Thickness of the printing plank 7.2 mm
Max speed 150 pieces/min
Economical speed 80-100 pieces/min
Precision of the printing ±0.75 mm
Precision of the slotting ±1 mm
Max depth of slotting 300 mm
Min grooving space 300mm*100mm*300mm*100mm
Printing rolling axle circle-oriented regulating 360 degree revolving
Printing rolling axle-oriented regulating +/-10mm
Power 22 kw
Power supply as customer’s wish

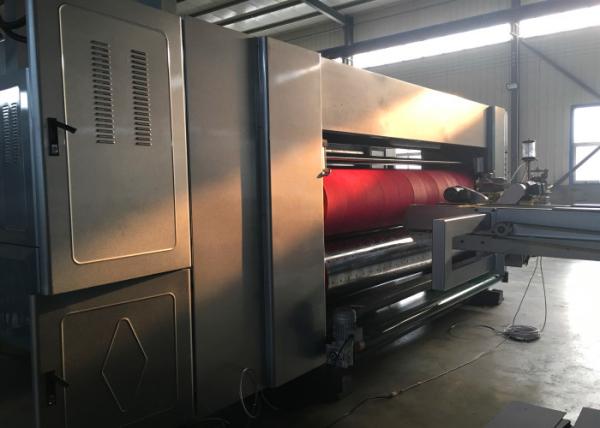

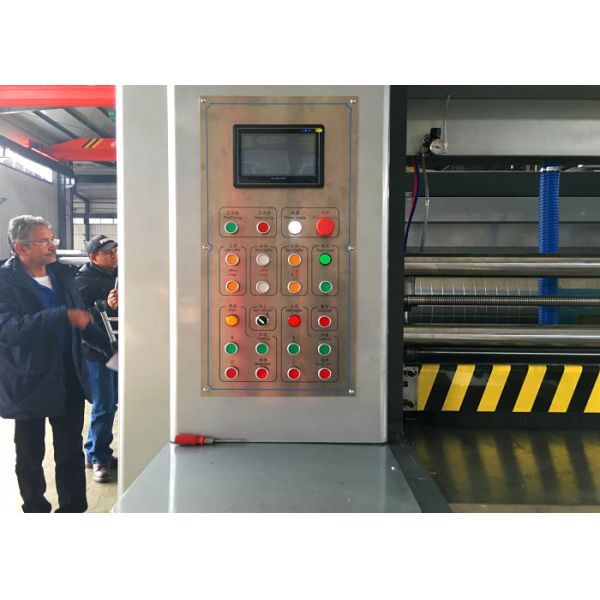

The Machine photo ( lead edge feeding department PLC control pannel )
