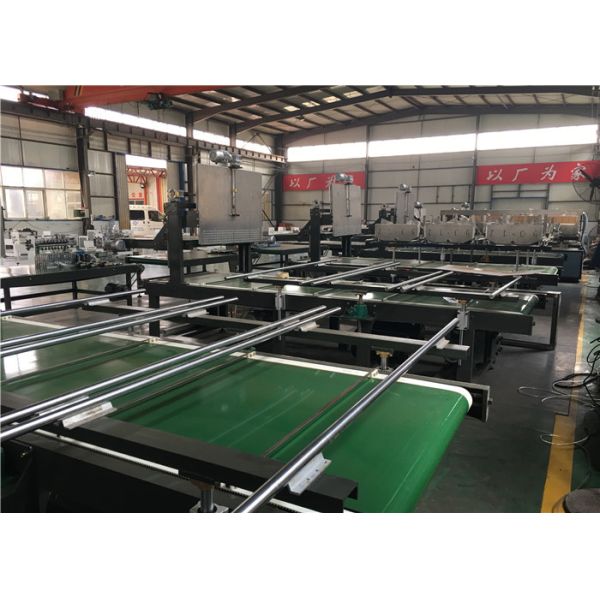

Automatic Carton Clapboard Partition Inserting Machine 30 - 50 Groups / Min Speed
Automatic Carton Clapboard Partition Inserting Machine 30 - 50 Groups / Min Speed
Automatic Carton Clapboard Partition Inserting Machine 30 - 50 Groups / Min Speed
Automatic Carton Clapboard Partition Inserting Machine 30 - 50 Groups / Min Speed
Automatic Carton Clapboard Partition Inserting Machine 30 - 50 Groups / Min Speed
Automatic Carton Clapboard Partition Inserting Machine 30 - 50 Groups / Min Speed
Automatic Carton Clapboard Partition Inserting Machine 30 - 50 Groups / Min Speed
Automatic Carton Clapboard Partition Inserting Machine 30 - 50 Groups / Min Speed
Specifications
Brand Name :
ZHAOLI
Model Number :
BL-500
Certification :
CE CERTIFICATION
Place of Origin :
HEBEI PROVINCE , CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, Western Union, D/A, D/P
Supply Ability :
10 sets / month
Delivery Time :
1 - 1.5 months
Packaging Details :
plastic film packing , load to container and fixed with steel wire rope
product name :
automatic carton clapboard partition inserting machine
other name :
clapboard partition assembly machine
working speed :
30-50 groups/min
working station :
single station and double station
container :
need one 20GP container
warranty :
1 year for whole structure
Description

automatic carton clapboard partition inserting machine

introduction :

this machine is used to make the clapboard insert to each other . to packing the bottles , fruit , etc .

Automatic Carton Clapboard Partition Inserting Machine 30 - 50 Groups / Min Speed

Power supply 380V / 50Hz 3 phases - 4 lines
Power 10 KW Not including the air compressor
Host belt speed 15-30m/min
Clapboard combining form 3 * (1~N) In double working station
Longitudinal clapboard feeding track number 6
Horizontal clapboard feeding track number 1-12
Clapboard size Length L=120-500mm Clapboard thickness 1.5-7mm
Height H=75-300mm

Width W=120-450mm

(double station)

Width W=450-900mm

(single station)
Lattice spacing C=50~150mm
Lattice spacing D=40~150mm
Working speed 30~60 groups / min Working speed is connected with clapboard size and clapboard combining form .
Machine weight 3000 KG
Overall dimension Length * Width * Height : 5500mm * 2200mm * 2000mm

Note : when the width of clapboard is greater than 450mm , the machine just can work in single station .

Air compressor or air compression station requirement : 6kgf/cm2 .

For the special type of clapboard , we can customize the machine as client’s wish .
