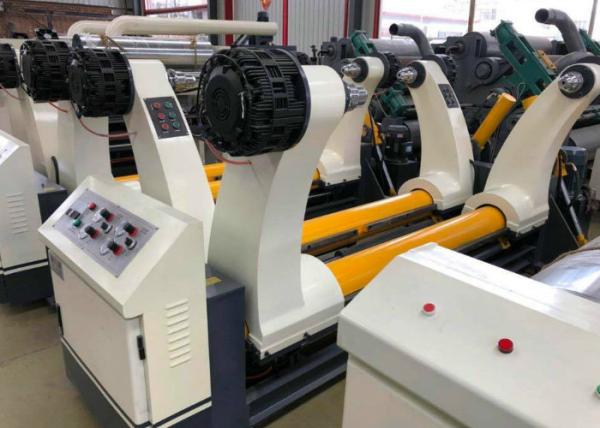

Shaftless Corrugated Cardboard Making Machine Hydraulic Drive Width 1400-2800mm 0.8Mpa
Shaftless Corrugated Cardboard Making Machine Hydraulic Drive Width 1400-2800mm 0.8Mpa
Shaftless Corrugated Cardboard Making Machine Hydraulic Drive Width 1400-2800mm 0.8Mpa
Shaftless Corrugated Cardboard Making Machine Hydraulic Drive Width 1400-2800mm 0.8Mpa
Specifications
Brand Name :
Quanheng
Model Number :
QH-HS
Certification :
CE ISO
Place of Origin :
Cangzhou City,Hebei Province,China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
10 SETS/PER MONTH
Delivery Time :
20 DAYS
Packaging Details :
NORMAL PACKAGING
Expiry width :
1400-2800mm
Maximum paper roll diameter :
1500mm
Single side Max.Load :
2.5T
Main axis diameter :
270mm
After sales service :
Engineer available service overseas factory
Warranty :
one year
Description

Structural feature:

★ adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.

★ brake adjustable adopts multipoint braking system.

★ every stand matched two sets paper car , and they can paper on the both sides at the same time.

Technical parameters:

1, the range of clamping paper:MAX1600mm MIN1000mm

2, clamping diameters:MAX￠1500mm MIN￠350mm

3, main shaft diameter of paper holder:￠240mm

4, gas source work pressure(Mpa):0.4---0.8Mpa

※ Hydraulic system parameters:

1. Work pressure(Mpa):16---18Mpa

2. lifting hydraulic cylinder:￠100×440mm

3. Clamping hydraulic cylinder:￠63×1300m

4. hydraulic station motor power:3KW --380V -- 50Hz

5. solenoid valve voltage:220V 50 Hz

※ Mainly purchased parts, raw materials and origin:

Name of main parts Brands or place of origin material
Main shaft Day steel production diameter242mm
Swing arm Production by own Resin sand gray ironHT200
wallboard Jigang prduction Q235AWelding parts
bearing HRB,ZWZ,LYC
Toothed chuck Zhejiang xusheng 3,4inch shared
Main electrical appliance France Schneider
button CHINT NP2series
Air switch French Schneider
Pneumatic components Zhejiang Sonor CSM
Hydraulic station Shandong zaozhuang
Brake pump zhejiang
