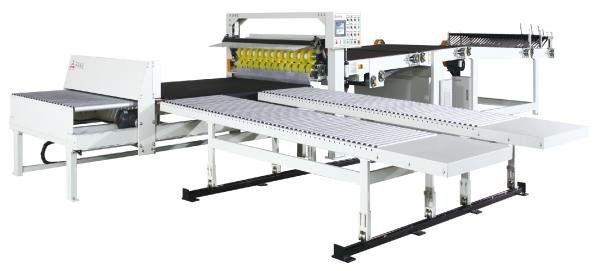

Dpack corrugator High Efficiency Automatic Stacking Machine , Corrugated Cardboard Stacker
Dpack corrugator High Efficiency Automatic Stacking Machine , Corrugated Cardboard Stacker
Dpack corrugator High Efficiency Automatic Stacking Machine , Corrugated Cardboard Stacker
Dpack corrugator High Efficiency Automatic Stacking Machine , Corrugated Cardboard Stacker
Specifications
Brand Name :
Dpack
Model Number :
CF-200
Certification :
IOS9001
Place of Origin :
China Hebei Dongguang
MOQ :
1Set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
2 Sets/Month
Delivery Time :
According To Product
Packaging Details :
Wooden case or wrapping film
Max sheet length :
3500mm
The stacking height :
250mm
Stacking speed :
150m/min
Effective width :
2500mm
Description

Function characteristics

  • Frequency motor with inverter double control the sheets transfer, ensure working speed and stack speed in-phase
  • Automatic counter, change order, change stack, higher precision, and non-stop machine do automatic change order, non-break the sheets.
  • Lift-down frame, working steady, non-break the edge of stack sheets
  • Belt type stack table, after get required sheets, automatic output the stack sheets, frequency control, working steady.
  • Back-baffle automatic position function, automatic work, fast and higher speed and high precision
  • Output part install two group sheets transfer rolls for upper & lower output part
  • Install 7 inch colorful touch screen, easy to check working status
  • Install manage system joint, could be connect with manage system, easy to check working status
  • Automatic circle working, save labors.

Technical indicators

  • Max sheet length: 3500mm;
  • The stacking height: 250mm;
  • Stacking speed: 150m/minute;
  • Effective width: 2500mm.

CF-200 Auto Small Gantry Cardboard Feeding Machine

Automatic level Fully automatic Working width 1400-2500mm
Speed 150m/min Stacker length 3500mm
Maximum stacker height 250mm Material Steel parts
Drive type Electric/Pneumatic Voltage Determined according to client’s voltage.
Power 11.3kw Weight 1800type 4.5T
Size 11150*2900*2000mm Packaging type Split package
Usage for line 3/5/7 ply Certification IOS9001

Double-deck Small Gantry Stacker:

Dpack corrugator High Efficiency Automatic Stacking Machine , Corrugated Cardboard Stacker
Dpack corrugator High Efficiency Automatic Stacking Machine , Corrugated Cardboard Stacker
