Dpack corrugated SF-280S Single Facer Corrugated Machine With 1400mm-2000mm Working Width industrial manufacturing
Dpack corrugated SF-280S Single Facer Corrugated Machine With 1400mm-2000mm Working Width industrial manufacturing
Specifications
Brand Name :
DPACK
Model Number :
SF-280S
Certification :
IOS9001
Place of Origin :
China Hebei Dongguang
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
T/T, L/C
Delivery Time :
According To Product
Packaging Details :
Wooden case or wrapping film
Supply Ability :
10 Sets/Month
Automatic grade :
Automatic
Speed :
120m/min
Working Width :
1400mm-2000mm
model number :
SF-280S
Main driven roller bearing :
Japan NSK
The main electrical equipment :
Chinese Zhengtai,or Schneider,ABB optionqal
Description

Manufacture 3/5/7 Laywers' Corrugated Cardboard Common Speed Machine/SF-280S Single Facer Machine

SF-280S Single Facer

Main Machines Characteristics:

Automatic Level Fully automatic Working Width 1400mm-2000mm
Speed 120m/min Flute Profile A,C,B,E,F,G available
Material HT250 Drive Type Electric, Pneumatic
Power 22.7kw Weight 1800 type 7.5T
Voltage Determined according to client’s voltage Size 4000*1200*1850mm(1800 type)
Use for (3/5/7 ply) Types Of Corrugating Chrome plated / tungsten carbide
Color RAL1013 Packing Type Overall packing

Type(Vacuum Suction/Another)Outer Suction

 Outer suction Certification

IOS9001

Main Parts Brand and Materials:

Mainly Purchased Parts Raw Materials and Origin
Corrugated Roller Alloy Steel 48CrMo/Chinese Haili
Motor Taiwan Taida
Driven Engine China
Pressure Roller China
Gluing Roller China
Frequency Converter Taiwan Taida
Bearing Japan NSK

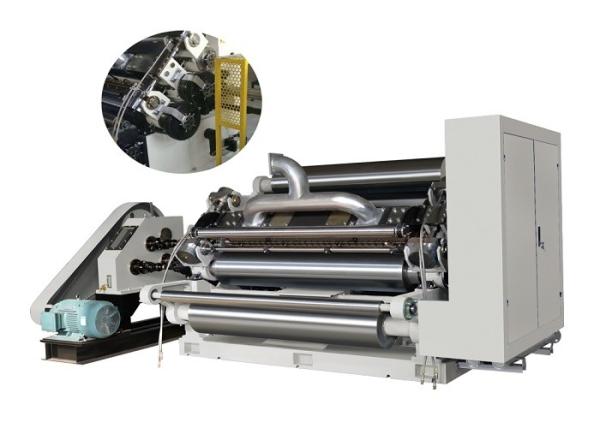

Dpack corrugated SF-280S Single Facer Corrugated Machine With 1400mm-2000mm Working Width industrial manufacturing

Usage: The machine presses the raw paper into corrugated core paper and glue it together with a smooth piece of paper, come into being single corrugated paper.

Flute profile:A,C,B,E,F,G available

Flooding system lubrication of the reduction gearbox, three axis gimbal transmission, isolated power supply, frequency converter control of the main unit.

Pneumatic control of the flute roll,press roll and gluing roll.

Vacuum suction guiding of paper provide perfect flute shape in high speed, blast volume controller is equipped.

The bearing of corrugated roll and press rolls are lubriated by high temperature lubricating grease.

Auto-circulating glue feeding system is provided.

The corrugated roll is made of special alloy steel of 48CrMo with grinding process and induction with hardness of HRC56-60.

Surface of gluing roll is embossed with netting design and chrome plated.
