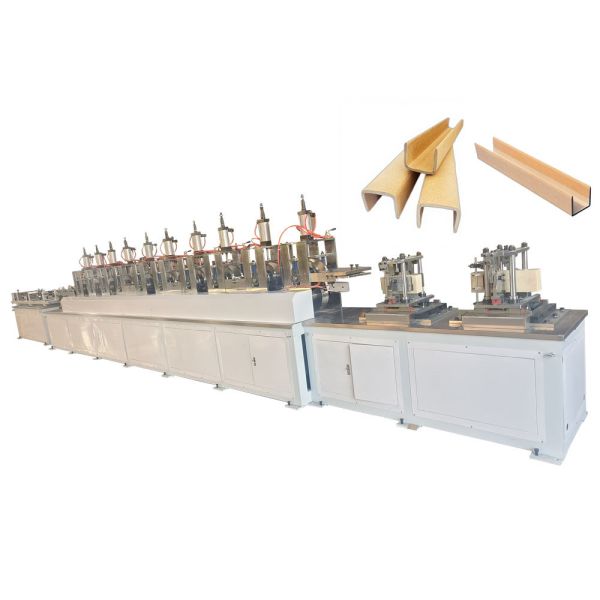

Paper U Channel Machine Cardboard U Shape Craft Paper Edge Protector Paper Corner Board Making Machine
Paper U Channel Machine Cardboard U Shape Craft Paper Edge Protector Paper Corner Board Making Machine
Paper U Channel Machine Cardboard U Shape Craft Paper Edge Protector Paper Corner Board Making Machine
Paper U Channel Machine Cardboard U Shape Craft Paper Edge Protector Paper Corner Board Making Machine
Paper U Channel Machine Cardboard U Shape Craft Paper Edge Protector Paper Corner Board Making Machine
Paper U Channel Machine Cardboard U Shape Craft Paper Edge Protector Paper Corner Board Making Machine
Paper U Channel Machine Cardboard U Shape Craft Paper Edge Protector Paper Corner Board Making Machine
Paper U Channel Machine Cardboard U Shape Craft Paper Edge Protector Paper Corner Board Making Machine
Paper U Channel Machine Cardboard U Shape Craft Paper Edge Protector Paper Corner Board Making Machine
Paper U Channel Machine Cardboard U Shape Craft Paper Edge Protector Paper Corner Board Making Machine
Specifications
Brand Name :
KSPACK
Model Number :
KSHJJ
Certification :
CE ISO
Place of Origin :
China(Mainland)
MOQ :
1
Price :
19800
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
30 sets per month
Delivery Time :
30 days
Packaging Details :
processed wooden case package
Type :
Paper U Channel Machine
Size :
can be adjusted
Speed :
60 meter per min
video outgoing-inspection :
Provided
Machine name :
U shape paper corner machine
Plc brand :
Schneider, Delta, Siemens
Working width :
100mm
Machine model :
U shaped paper corner making machine
Description
Paper U Channel Machine
Professional cardboard U-shape craft paper edge protector and paper corner board making machine designed for industrial manufacturing applications.
Technical Specifications
Paper Angle Protection Specification Width: 20-100mm
Thickness × Length: 50-9000mm
Production Speed 0-30 m/min
Host Power 7.5kW + 4.3kW
Control Mode Numerical Control
Raw Material Surface Paper: 150g-200g
Core Paper: 300g-700g
Cutting Mode Servo Tracking Cutting
Number of Operators 1-2 People
Configuration & Equipment
  • Octagonal Device: Seven Groups
  • Paper Holder Type: Right Angle Fixed Hoisting Paper Holder
  • Glue Supply: Stainless Steel Heating Automatic Circulation Double-Sided Gluing
  • Top Paper Device: Stainless Steel, Paper Basin with Transmission
  • Host Mesa: Stainless Steel
  • Transmission Device: Conveyor Belt and Receiving Table
  • Table Cutting Device: Numerical Control
  • Application Tools: One Set of Inner Hexagonal Wrenches
Dimensions & Weight
Host Size (L×W×H) 5100 × 840 × 1400 mm
Coverage Area (L×W) 32m × 3m
Host Weight 2780 kg
Total Weight 4500 kg
