Automatic Yellow Sticky Trap Making Machine with Hot Melt Glue and PP Material for Pest Control
Automatic Yellow Sticky Trap Making Machine with Hot Melt Glue and PP Material for Pest Control
Automatic Yellow Sticky Trap Making Machine with Hot Melt Glue and PP Material for Pest Control
Automatic Yellow Sticky Trap Making Machine with Hot Melt Glue and PP Material for Pest Control
Specifications
Brand Name :
KSPACK
Model Number :
HG-818
Certification :
CE ISO
Place of Origin :
China (mainland)
MOQ :
1
Price :
15000
Payment Terms :
T/T,D/P,D/A,Western Union
Supply Ability :
30 sets
Delivery Time :
20 days
Packaging Details :
processed wooden case
Machine name :
Insect glue roll traps making machine
Mahine function :
for insect glue roll traps making
Glue type :
Hot melt glue
Traps material :
PP
Coating amount :
Can be adjusted
Glue melting device :
Included
Control panel :
PLC touch screen
Glue coating type :
one side glue coating
Machine kewords :
Blue Insect Sticky Traps making machine
machine type :
AUtomatic
Description

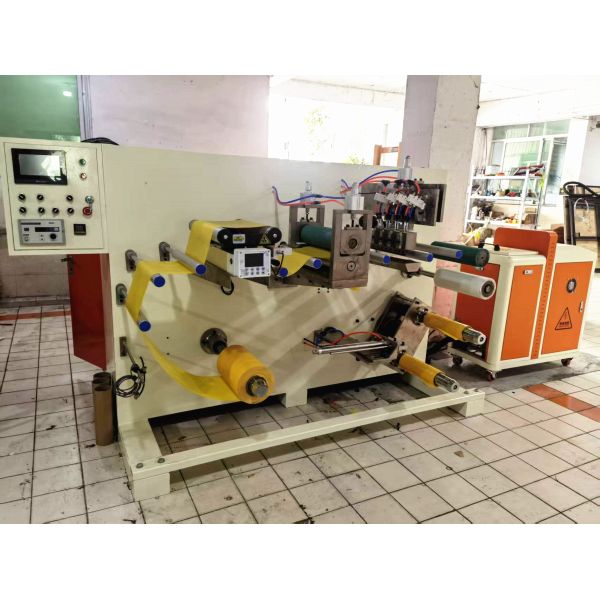

Automatic Yellow Sticky Trap Making Machine
Complete insect glue trap production line for manufacturing pest control traps with automated continuous operation using hot melt glue and PP material.
Production Process
The insect sticky board production process begins with roll material being straightened by the guide rail, then entering the gluing station for adhesive application. The material is conveyed to the winding shaft via conveyor belt for winding. When the winding length reaches the preset value, the material shaft automatically switches (cutting and feeding material). The equipment operates continuously without stopping, requiring operators only to collect finished products and replace paper cores.
Technical Specifications
Parameter Specification
Total Power 21.75 kW
Maximum Unwinding Diameter 800 mm
Maximum Cardboard Width 300 mm
Paper Tube Inner Diameter 76 mm
Effective Maximum Glue Coating Width 290 mm
Glue Coating Uniformity ±5%
Production Speed 0-75 m/min
Rewinding Edge Neatness ±2 mm
Coating Basis Weight Range 20-80 g/m²
Air Compressor 5-7 kgf/cm²
Power Supply AC380V
Equipment Features
  • Continuous operation without stopping
  • Automatic material switching and feeding
  • Precise glue coating control
  • High production efficiency
  • Suitable for yellow and blue insect sticky traps
  • Minimal operator intervention required
