1400mm 2500mm 45m/Min Corrugated Board Production Line
1400mm 2500mm 45m/Min Corrugated Board Production Line
1400mm 2500mm 45m/Min Corrugated Board Production Line
1400mm 2500mm 45m/Min Corrugated Board Production Line
Specifications
Brand Name :
Kingsun
Model Number :
WJ
Certification :
CE
Place of Origin :
China Hebei
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1 set 40-60 per days
Delivery Time :
7-9 work days
Packaging Details :
Wrapped in plastic film and placed in wooden box
Name :
1400mm-2500mm Automatic 3 Ply 5 Ply Corrugated Board Production Line
Service :
1 Year warranty
Feature :
Easy operation
Size :
1400mm-2500mm
Weight :
Customize
Usage :
Making corrugated cardboard
Working speed: :
30-45m/min,60-80m/min,80-100m/min,100-120m/min
Communication :
English/ Turkish/ Russian/ Spanish/German etc
Warranty :
1 Year
Marketing Type :
Ordinary Product
Description

1400mm-2500mm Automatic 3 Ply 5 Ply Corrugated Board Production Line

Complete corrugated paperboard production line is compose of shaftless mill roll stand,fingerless type single facer

(vacuum suction type).preheater,double bridge,gluer machine,double facer machine,cut off machine,slitter scorer machine,stacker and glue making system.Our company to absorb advanced technology from other countries,we get feed back from our users and on the base of our experience more years for develop the new production.The feature of our machine;high automatization,easy operation&maintenance,high efficiency,good quality of paperboarf,compact structure and nice appearance

Remark:The size and requirement acording the clent need.

1400mm-2500mm Automatic 3 Ply 5 Ply Corrugated Board Production Line Parameter:

Design speed:100m/min Normal work speed:60-80m/min
No. Machine name Qty Remarks
1 Mill roll stand 5 Electric swing
2 Railing and tracks 10

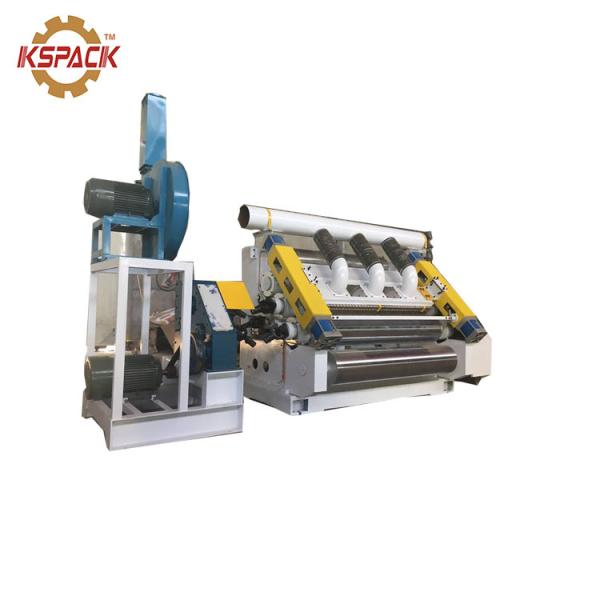

3 Single facer 2 Corrugating roller ￠280mm, electric adjust gluing width, pneumatic control
4 Pre-heater 2 ￠600mm, electric adjust wrapping angle
5 Pre-conditioner 2 ￠600mm electric adjust wrapping angle
6 Bridge conveyer 1 Adsorption type, electric deviation-correcting
7 Triplex pre-heater 1 ￠600mm electric adjust wrapping angle
8 Gluing machine 1 Pneumatic adjust pressing roller
9 Double facer 1 Heating plants: 520mm×16, with cooling section
10 Slitter scorer 1 5 blades with 8 scorers
11 NC cutoff 1 Helical knives Blade made in Taiwan
12 Cardboard feeing machine 1
13 Main drive 1
14 Glue making system 1 Automatic circle glue, pipeline provided by buyer
15 Electric system 1
16 Steam system 1 Pipeline on valves provided by buyer
17 Pneumatic system 1

1400mm-2500mm Automatic 3 Ply 5 Ply Corrugated Board Production Line Application field:

1400mm 2500mm 45m/Min Corrugated Board Production Line


1400mm 2500mm 45m/Min Corrugated Board Production Line
