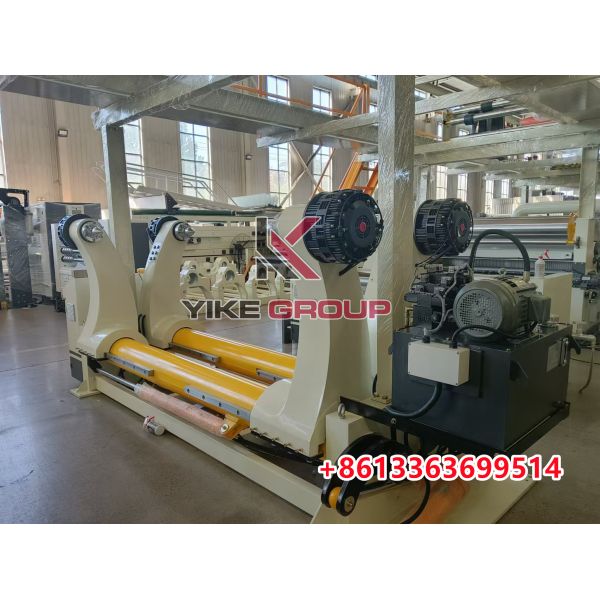

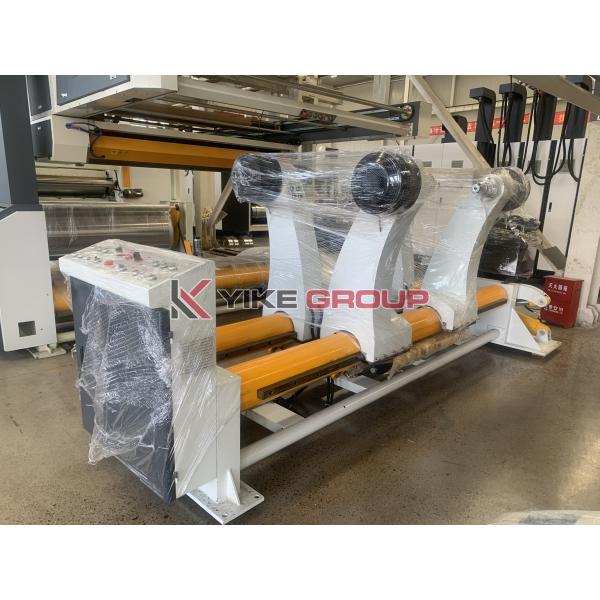

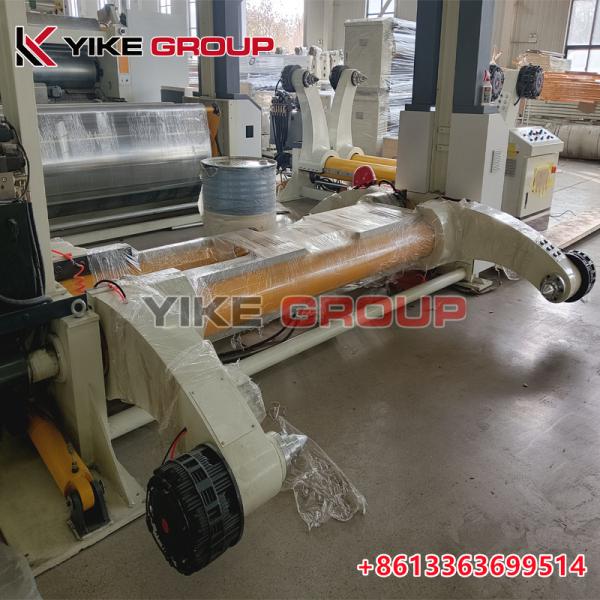

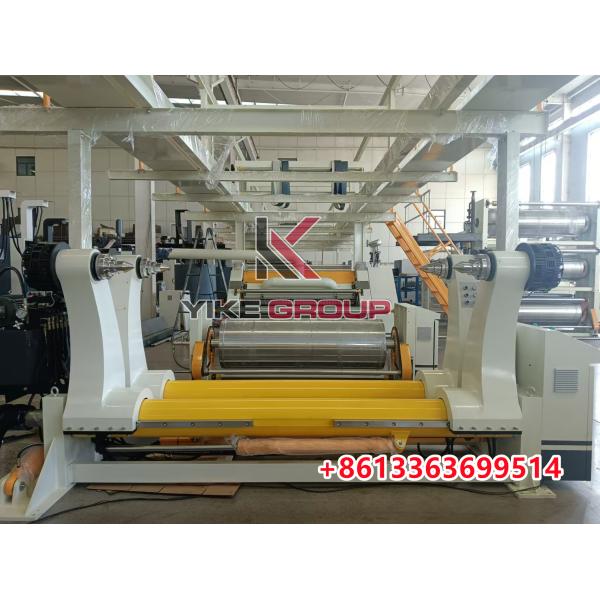

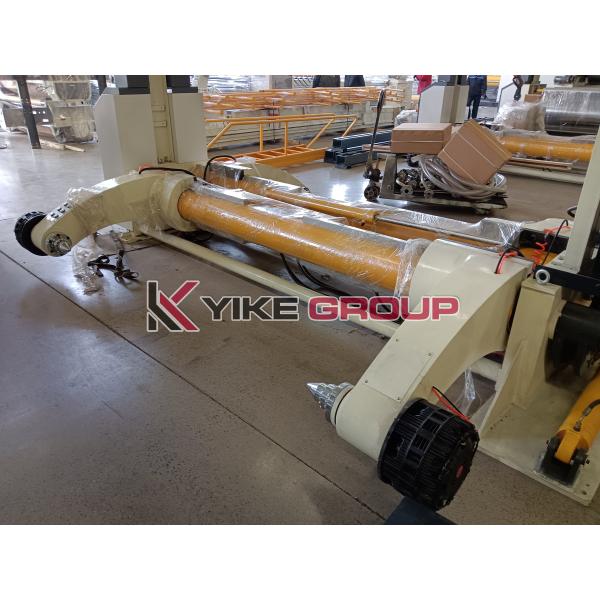

YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine
YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine
YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine
YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine
YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine
YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine
YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine
YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine
YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine
YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine
YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine
YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine
Specifications
Brand Name :
YIKE GROUP
Model Number :
YK-2200
Certification :
ISO CE
Place of Origin :
China
MOQ :
1
Price :
USD 6800/set
Payment Terms :
D/A, L/C, D/P, T/T
Supply Ability :
1000set/month
Delivery Time :
20 working days
Packaging Details :
Plastic Packaging
Description

YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine

STRUSTURAL FEATURE:

1.Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.

2.brake adjustable adopts multipoint braking system.

3.every stand matched two sets paper car , and they can paper on the both sides at the same time.

YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine

Technical parameters:

  • The range of clamping paper:MAX2200mm MIN1000mm
  • clamping diameters:MAX￠1500mm MIN￠350mm
  • main shaft diameter of paper holder:￠240mm
  • gas source work pressure(Mpa):0.4---0.8Mpa
  • equipment size:Lmx4.3*Wmx1.8*Hmx1.6
  • single weight:MAX 4000Kg

YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine

  • Hydraulic system parameters:
  • Work pressure(Mpa):16---18Mpa
  • lifting hydraulic cylinder:￠100×440mm
  • Clamping hydraulic cylinder:￠63×1300m
  • hydraulic station motor power:3KW --380V -- 50Hz
  • solenoid valve voltage:220V 50 Hz

YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine

Mainly purchased parts, raw materials and origin

Name of main parts

 Brands or place of origin material

Main shaft

 Day steel production diameter242mm

Swing arm

 Production by own Resin sand gray ironHT200

wallboard

 Jigang prduction Q235AWelding parts

bearing

 HRB,ZWZ,LYC

expand chuck

 Zhejiang xusheng 3,4inch shared

Main electrical appliance

 France Schneider

button

 CHINT NP2series

Air switch

 French Schneider

Pneumatic components

 Zhejiang Sonor CSM

Hydraulic station

 Shandong zaozhuang

Brake pump

 zhejiang
YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine
YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine
YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine
