Specifications
Brand Name :
YIKE GROUP
Model Number :
YK-1600
Certification :
ISO,CE
Place of Origin :
Hebei, China
MOQ :
1 Set for Hydraulic Mill Roll Stand
Price :
USD8500
Payment Terms :
L/C, T/T, T/T, Western Union
Supply Ability :
Reel Stand Mill Roll Stand 50 Sets per Month
Delivery Time :
30days
Packaging Details :
Plastic Film
Product name :
Hydraulic Mill Roll Stand
Item :
Corrugated Paperboard Carton Line
Size Available :
1400-3200mm
Usage :
Kraft Paper Stand
Application :
Carton Line
Voltage :
220v/380v/415v/440v
Color :
Customized Color
Suitable for :
Corrugated Cardboard Plant
Description

YK-1600 ZJ-V5B Hydraulic Shaftless Mill Roll Stand For Corrugated Paperboard Carton Line

YK-1600 ZJ-V5B Hydraulic Shaftless Mill Roll Stand For Corrugated Paperboard Carton Line

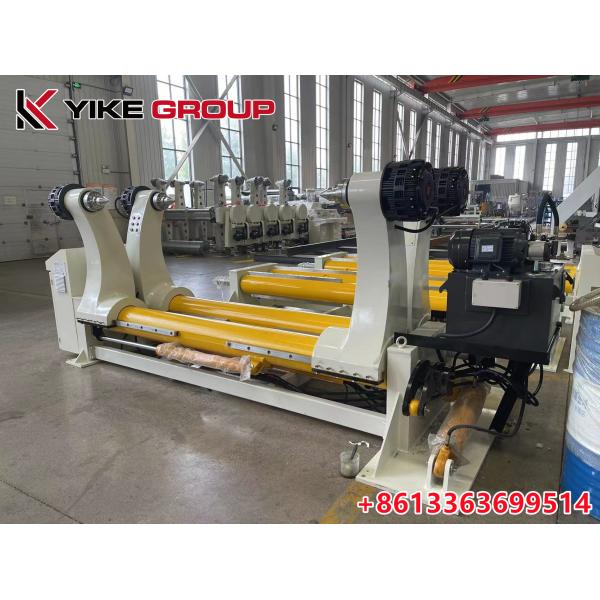

※ZJ-V5B hydraulic shaftless mill roll stand

※structural feature:

★adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right

and others,the lifting of the paper adopts hydraulic drive.

★brake adjustable adopts multipoint braking system.

★every stand matched two sets paper car , and they can paper on the both sides at the same time.

YK-1600 ZJ-V5B Hydraulic Shaftless Mill Roll Stand For Corrugated Paperboard Carton Line

※Technical parameters:

1.the range of clamping paper:MAX1600mm MIN1000mm

2,clamping diameters:MAX￠1500mm MIN￠350mm

3,main shaft diameter of paper holder:￠240mm

4,gas source work pressure(Mpa):0.4---0.8Mpa

5,equipment size:Lmx4.3*Wmx1.8*Hmx1.6

6,single weight:MAX4000Kg

※Hydraulic system parameters:

1.Work pressure(Mpa):16---18Mpa

2,lifting hydraulic cylinder:￠100×440mm

3.Clamping hydraulic cylinder:￠63×1300m

4,hydraulic station motor power:3KW --380V -- 50Hz

5,solenoid valve voltage:220V 50 Hz

Automatic Grade
Automatic
Key Machines
Hydraulic Shaftless Mill Roll Stand, corrugated production line, single facer line
Packaging Material
Plastic film
Condition
New
Brand Name
YIKE GROUP
Year
2024
Place of Origin
Hebei, China
Voltage
220v/380v/415v/440v
Product name
Hydraulic Mill Roll Stand
Color
Customized Color
MOQ
1set
Design
Customer'requirement
Type
1600mm Hydraulic Shaftless Mill Roll Stands Machines
Working wide
1600MM
Weight capacity
4T
design speed
100m/min.
Suitable for
Corrugated Cardboard Plant
Advantage
High Effiency
