YK-1600H High Accurate Flute Laminate For 3 ply corrugated sheet
YK-1600H High Accurate Flute Laminate For 3 ply corrugated sheet
Specifications
Brand Name :
YIKE GROUP
Model Number :
YK-1300H
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 Set for Flute Laminator
Price :
$10,000.00 /set
Payment Terms :
L/C, T/T
Supply Ability :
50 Sets per Month
Delivery Time :
30 days after deposit
Packaging Details :
Plastic Film, FCL
Automatic grade :
Manual feeder Flute Laminator
After-sales service provided :
Engineers available to service machinery overseas
Type :
Laminating Machine
Application :
Machinery & Hardware
Voltage :
380V/50HZ
Product name :
Flute Corruagated Cardboard Laminating Machine
Warranty :
1 Year
Name :
Automatic Flute Carton Board Laminate Machine with Auto Delivery
Function :
Gluing Corrugated Carton Board
Description

YIKE GROUP

Anna Tang

Director of YIKE GROUP

Email: Anna@yikegroup.net

Whatsapp: 008613363699514

Product Description

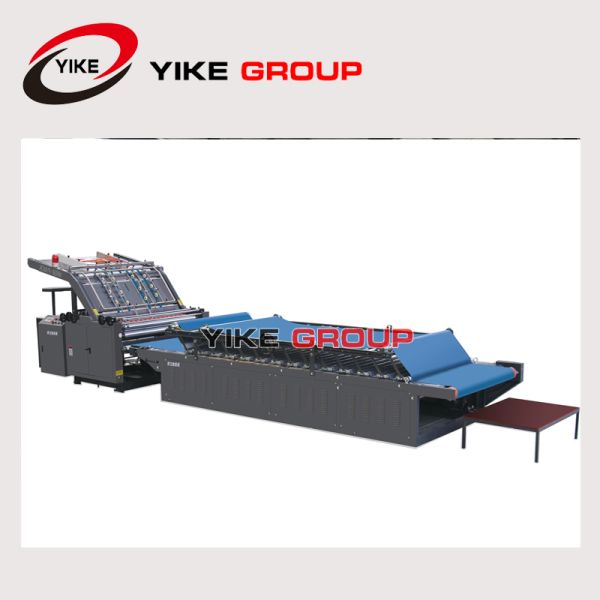

Instruction of Flute Laminator Machine:

This manual flute laminating machine use bottom sheet automatically sent by suction device, and top sheet feeding manually. This humanized design makes paper feeding easier and more efficient. It is suitable for color top sheet and corrugated paper laminating, color top sheet and grey cardboard laminating.

Specification:

Model YK-1300H Semi Flute Laminator YK-1600HSemi Flute Laminator
Max size of cover face 1300mmX1100mm 1600mmX1150mm
Mix size of cover face 360mmX360mm 360mmX360mm
Economic speed 0-80 piece/min 0-80 piece/min
Precision +-1 +-1
Power 6kw 6kw
Size 8.8m x 1.95m x 1.7m 8.8m x 2.25m x 1.7m
Weight About 3T About 3T

Main electric:

No Name Brand Add
1 AC DRIVE DELTA TAIWAN
2 INVERTER DELTA TAIWAN
3 MAIN MOTOR MENGNIU CHINA
4 TOUCH SCREEN MCGS CHINA
5 PLC XINJIE CHINA
6 TRANSFORMER RENMIN SHANGHAI
7 OTHER ELECTRIC SYSTERM CHINT CHINA
8 BEARING Rhonda CHINA
9 BELT MEGAPOWER ITALY
10 COMPRESSOR JINZENG CHINA
