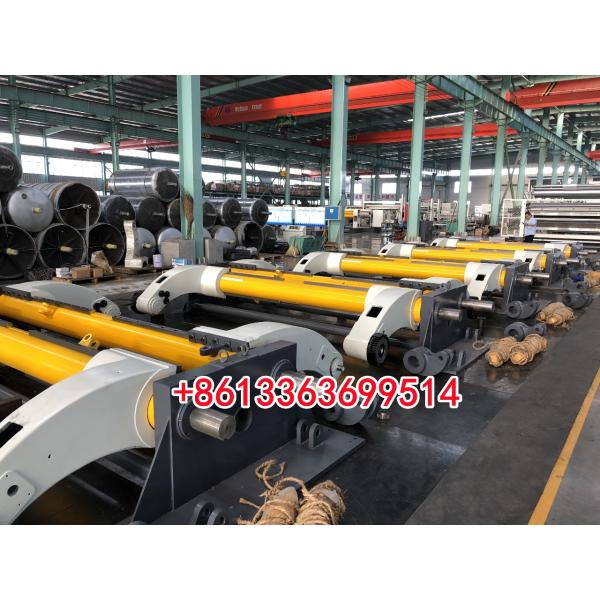

YK-2500 Reel Paper Unwinder Hydraulic Shaftless Mill Roll Stand Use For Corrugated Cardboard Plant
YK-2500 Reel Paper Unwinder Hydraulic Shaftless Mill Roll Stand Use For Corrugated Cardboard Plant
YK-2500 Reel Paper Unwinder Hydraulic Shaftless Mill Roll Stand Use For Corrugated Cardboard Plant
YK-2500 Reel Paper Unwinder Hydraulic Shaftless Mill Roll Stand Use For Corrugated Cardboard Plant
YK-2500 Reel Paper Unwinder Hydraulic Shaftless Mill Roll Stand Use For Corrugated Cardboard Plant
YK-2500 Reel Paper Unwinder Hydraulic Shaftless Mill Roll Stand Use For Corrugated Cardboard Plant
YK-2500 Reel Paper Unwinder Hydraulic Shaftless Mill Roll Stand Use For Corrugated Cardboard Plant
YK-2500 Reel Paper Unwinder Hydraulic Shaftless Mill Roll Stand Use For Corrugated Cardboard Plant
YK-2500 Reel Paper Unwinder Hydraulic Shaftless Mill Roll Stand Use For Corrugated Cardboard Plant
YK-2500 Reel Paper Unwinder Hydraulic Shaftless Mill Roll Stand Use For Corrugated Cardboard Plant
YK-2500 Reel Paper Unwinder Hydraulic Shaftless Mill Roll Stand Use For Corrugated Cardboard Plant
YK-2500 Reel Paper Unwinder Hydraulic Shaftless Mill Roll Stand Use For Corrugated Cardboard Plant
Specifications
Brand Name :
YIKE GROUP
Model Number :
YK-1600mm
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1 Set Mill Roll Stand
Price :
NEGOTIATION
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 SETS PER MONTH
Delivery Time :
30 Days After Deposit of Mill Roll Stand
Packaging Details :
FCL, PLASTIC FILM
SPINDLE DIAMATER :
270MM
WEIGHT :
3.5T
WIDTH :
1400MM-2800MM
WARRANTY :
1 YEAR
CONDITION :
Hydraulic Shaftless Mill Roll Stand
Type :
Packaging Line
Automatic grade :
Automatic
Application :
Machinery & Hardware
Packaging type :
Film
Usage :
Making Corrugated Cardboard
Description

YK-2500 Reel Paper Unwinder Hydraulic Shaftless Mill Roll Stand Use For Corrugated Cardboard Plant

YK-2500 Reel Paper Unwinder Hydraulic Shaftless Mill Roll Stand Use For Corrugated Cardboard Plant

Main performance characteristics:

1.Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.

2.The brake uses a multi-point brake system, a gear disc structure, equipped with a cooling fan, Yadeke pneumatic components, stable tension, and long life.

3.The large-diameter spindle design, the swing arm slides smoothly, and the steel guide rails are treated with high frequency treatment, which is super wear-resistant.

4.The hydraulic cylinder is installed on a twisted shaft, which does not bear radial force and is easy to maintain.

YK-2500 Reel Paper Unwinder Hydraulic Shaftless Mill Roll Stand Use For Corrugated Cardboard Plant

Working wide

2500mm

Paper diameter

MAX: 1500mm MIN:300mm

Paper width

MAX: 2550mm MIN:800mm

Weight capacity

3.5T

Paper head size

Teeth 3 inches 4 inches

brake

Spur gear type more points pneumatic

Working air pressure

0.4---0.8Mpa

Mainly purchased parts, raw materials and origin:

Name of main parts

Brands or place of origin

material

Main shaft

Day steel production

diameter242mm

Swing arm

Production by own

Resin sand gray ironHT200

wallboard

Jigang prduction

Q235AWelding parts

bearing

HRB,ZWZ,LYC

Toothed chuck

Zhejiang xusheng

3,4inch shared

Main electrical appliance

France Schneider

button

CHINT NP2series

Air switch

French Schneider

Pneumatic components

Zhejiang Sonor CSM

Hydraulic station

Shandong zaozhuang

Brake pump

zhejiang

YK-2500 Reel Paper Unwinder Hydraulic Shaftless Mill Roll Stand Use For Corrugated Cardboard Plant
