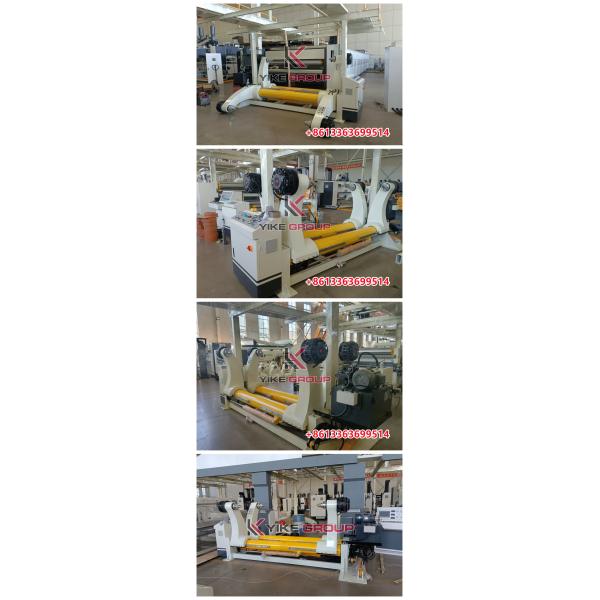

Hydraulic Mill Roll Stand For 1800MM BHS, TCY, CHAMPION Corrugated Cardboard Production Line
Hydraulic Mill Roll Stand For 1800MM BHS, TCY, CHAMPION Corrugated Cardboard Production Line
Hydraulic Mill Roll Stand For 1800MM BHS, TCY, CHAMPION Corrugated Cardboard Production Line
Hydraulic Mill Roll Stand For 1800MM BHS, TCY, CHAMPION Corrugated Cardboard Production Line
Hydraulic Mill Roll Stand For 1800MM BHS, TCY, CHAMPION Corrugated Cardboard Production Line
Hydraulic Mill Roll Stand For 1800MM BHS, TCY, CHAMPION Corrugated Cardboard Production Line
Hydraulic Mill Roll Stand For 1800MM BHS, TCY, CHAMPION Corrugated Cardboard Production Line
Hydraulic Mill Roll Stand For 1800MM BHS, TCY, CHAMPION Corrugated Cardboard Production Line
Hydraulic Mill Roll Stand For 1800MM BHS, TCY, CHAMPION Corrugated Cardboard Production Line
Hydraulic Mill Roll Stand For 1800MM BHS, TCY, CHAMPION Corrugated Cardboard Production Line
Hydraulic Mill Roll Stand For 1800MM BHS, TCY, CHAMPION Corrugated Cardboard Production Line
Hydraulic Mill Roll Stand For 1800MM BHS, TCY, CHAMPION Corrugated Cardboard Production Line
Specifications
Brand Name :
YIKE GROUP
Model Number :
V5-1400
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 Set Mill Roll Stand
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
50 Sets Per Month
Delivery Time :
30 Days After Deposit of Mill Roll Stand
Packaging Details :
Plastic film,FCL
Name :
Hydraulic Mill Roll Stand
Condition :
New Mill Roll Stand
Type :
Corrugated Cardboard Production Line
Warranty :
1 Year
Width :
1400mm-2800mm
Weight :
2.5T
Function :
cardboard making production line
Color :
Customized Color
Packaging type :
Cartons
Description

Hydraulic Mill Roll Stand For 1800MM BHS, TCY, CHAMPION Corrugated Cardboard Production Line

structural feature:

★adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.

★brake adjustable adopts multipoint braking system.

★every stand matched two sets paper car , and they can paper on the both sides at the same time.

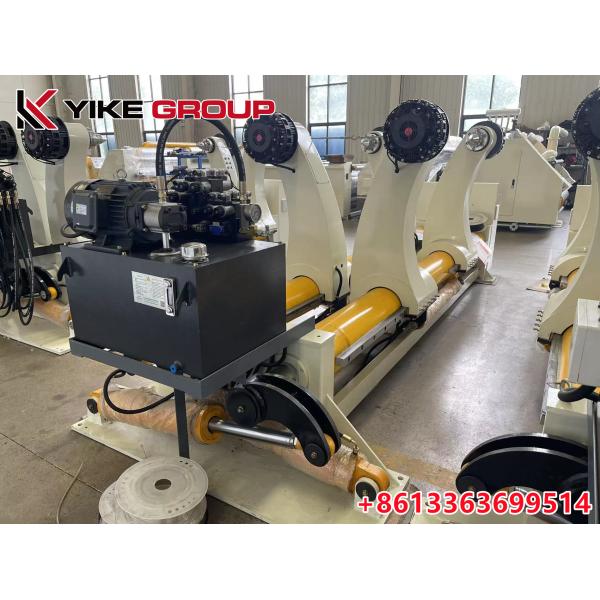

Hydraulic Mill Roll Stand For 1800MM BHS, TCY, CHAMPION Corrugated Cardboard Production Line

technical parameters:

1,the range of clamping paper:MAX1800mm MIN1000mm

2,clamping diameters:MAX￠1500mm MIN￠

350mm 3,main shaft diameter of paper holder:￠240mm

4,gas source work pressure(Mpa):0.4---0.8Mpa

Hydraulic system parameters:

1.Work pressure(Mpa):16---18Mpa

2,lifting hydraulic cylinder:￠100×440mm

3.Clamping hydraulic cylinder:￠63×1300m

4,hydraulic station motor power:3KW --380V -- 50Hz

5,solenoid valve voltage:220V 50 Hz

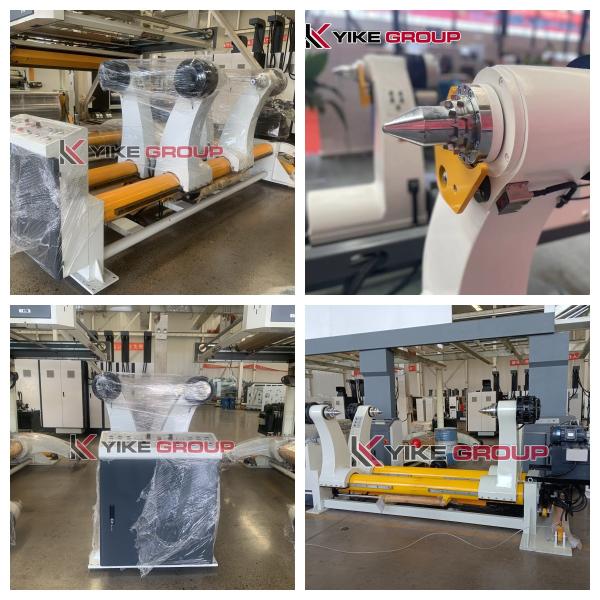

Hydraulic Mill Roll Stand For 1800MM BHS, TCY, CHAMPION Corrugated Cardboard Production Line

Mainly purchased parts, raw materials and origin:

Name of main parts Brands or place of origin material
Main shaft Day steel production diameter242mm
Swing arm Production by own Resin sand gray ironHT200
wallboard Jigang prduction Q235AWelding parts
bearing HRB,ZWZ,LYC
Toothed chuck Zhejiang xusheng 3,4inch shared
Main electrical appliance France Schneider
button CHINT NP2series
Air switch French Schneider
Pneumatic components Zhejiang Sonor CSM
Hydraulic station Shandong zaozhuang
Brake pump zhejiang

Hydraulic Mill Roll Stand For 1800MM BHS, TCY, CHAMPION Corrugated Cardboard Production Line

Hydraulic Mill Roll Stand For 1800MM BHS, TCY, CHAMPION Corrugated Cardboard Production Line
