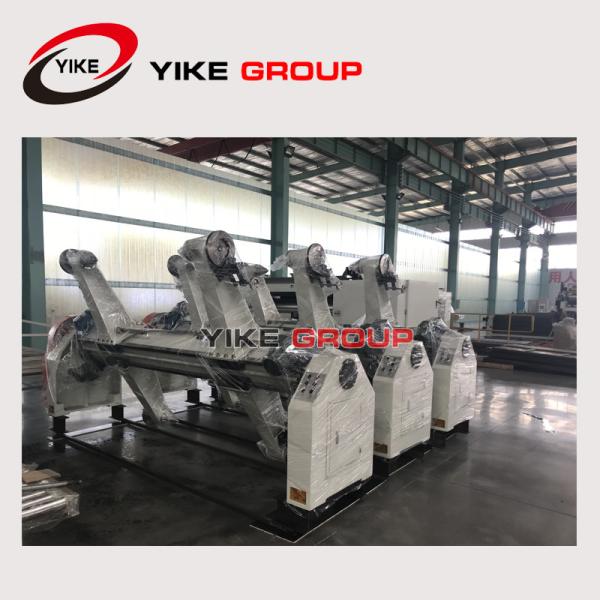

Electric Shaftless Mill Roll Stand Of Corrugation Line
Electric Shaftless Mill Roll Stand Of Corrugation Line
Specifications
Brand Name :
YIKE GROUP
Model Number :
YK-1600
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1 Set Mill Roll Stand
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 Sets Per Month
Delivery Time :
30 Days After Deposit of Mill Roll Stand
Packaging Details :
Plastic Film,FCL
After-sales Service Provided :
Engineers Available To Service Machinery Overseas,Online Support
Automatic Grade :
Semi Automatic Electric Mill Roll Stand
Usage :
3&5&7 Ply High Speed Corrugated Cardboard Production Line
Condition :
New Mill Roll Stand
Weight :
2T
Packaging Type :
Plastic Film
Description

Electric Shaftless Mill Roll Stand Of Corrugation Line

Structural features:

★Symmetrical structure can also install two bundles of paper at the same time,Paper can be used for non-stop for a job；Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.

★each shaftless mill roll stand is equipped with two pieces of paper guide, two set of paper car；paper guide the use of channel 14 and the guide post weld,paper car adopt 10mmwelded stell,the length of track is 4500mm.

★manual dics brake,add screw following

★electric elements centralized control the electric elements,expand chuck.

technical parameters:

1,Backstands action mode:mechanical electric operation

2,the range of paper jams:maximum:1400mm minimum:600mm

3,the diameter of paper jams:maximum:￠1400mm minimum:￠400mm

4,Unilateral maximum load:maximum2000Kg

5,Powered motor parameters:

①Paper jams motor550W×4set 380V 50HZ short(S2)working standard

②lift motor 1.5Kw 380V 50HZ short(S2)working standard

Mainly purchased parts, raw materials and origin:

Name of main parts

Brands or place of origin

material

motor

Hebei Hengshui

reducer

Shandong Dezhou Jin bu huan

contacts

Chint or De li xi

chuck

Xusheng

3 inches, 4 inches shared

wallboard

Production own

HT200

Electric Shaftless Mill Roll Stand Of Corrugation Line

Electric Shaftless Mill Roll Stand Of Corrugation Line
