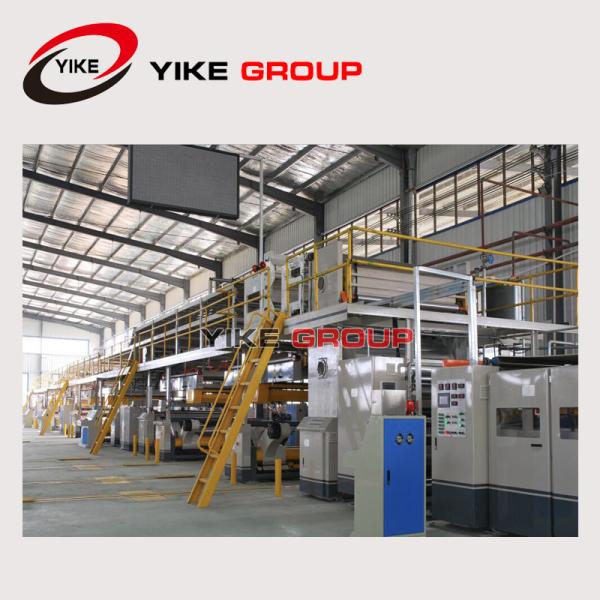

1

Effective width

1800mm

2

Design produce speed

150m/min

3

Three layer work speed

100-140m/min

4

Five layer work speed

90-130m/min

5

Seven layer work speed

-------------------

6

The highest change single speed

100m/min

7

Longitudinal separation accuracy

±1mm

8

Cross-cutting precision

±1mm

note

Speed the above targets required to achieve:effective width1800mm,Comply with the following standards and ensure the paper's equipment condition 175 ℃ heating surface temperature.

Top paper index

100g/㎡--180g/㎡ Ring crush index(N.m/g)≥8 (Water containing8-10%)

Core paper index

80g/㎡--160g/㎡ Ring crush index(N.m/g)≥5.5 (Water containing8-10%)

In paper index

90g/㎡--160g/㎡ Ring crush index(N.m/g)≥6 (Water containing8-10%)

9

Flute combination

10

Steam requirement

The maximum pressure 16kg/cm2

Common pressure10-12kg/cm2

use4000kg/Hr

11

Electricity demand

AC380V 50Hz 3PH

Total power≈220KW

Running Power≈150KW

12

Compressed air

The maximum pressure 9kg/cm2

Common pressure4-8kg/cm2

use1m3/min

Customer-owned section

1, steam heating system:proposal with 4000Kg / Hr of a steam boiler pressure:1.25Mpa steam pipeline.

2, air compressed machine,air pipeline,glue conveying pipe.

3, power supply,wires connected to the operation panel and line pipe.

4, water sources,water pipelines,buckets and so on.

5, Water, electricity, gas flush mounting civil foundation.

Name of main parts

Brands or place of origin

material

Main shaft

Day steel production

diameter242mm

Swing arm

Production by own

Resin sand gray ironHT200

wallboard

Jigang prduction

Q235AWelding parts

bearing

HRB,ZWZ,LYC

Toothed chuck

Zhejiang xusheng

3,4inch shared

Main electrical appliance

France Schneider

button

CHINT NP2series

Air switch

French Schneider

Pneumatic components

Zhejiang Sonor CSM

Hydraulic station

Shandong zaozhuang

Brake pump

zhejiang
