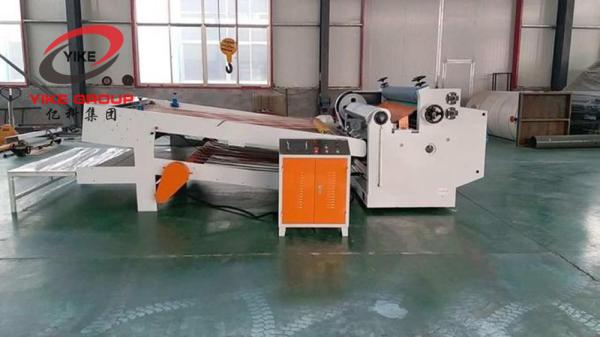

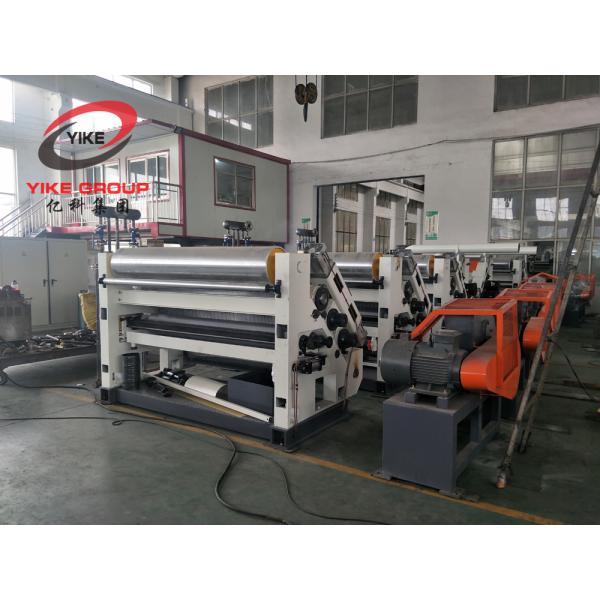

YIKE GROUP Semi Auto Single Facer Corrugation Machine For 2 Ply Corrugated Sheets

Specification

ZJ-F shaftless mill roll stand

• Technical parameters:

1,Backstands action mode:mechanical electric operation

2,the range of paper jams:maximum:1600mm minimum:600mm

3,the diameter of paper jams:maximum:￠1400mm minimum:￠400mm

4,Unilateral maximum load:maximum2000Kg

5,Powered motor parameters:

①Paper jams motor550W×4set 380V 50HZ short(S2)working standard

②lift motor 1.5Kw 380V 50HZ short(S2)working standard

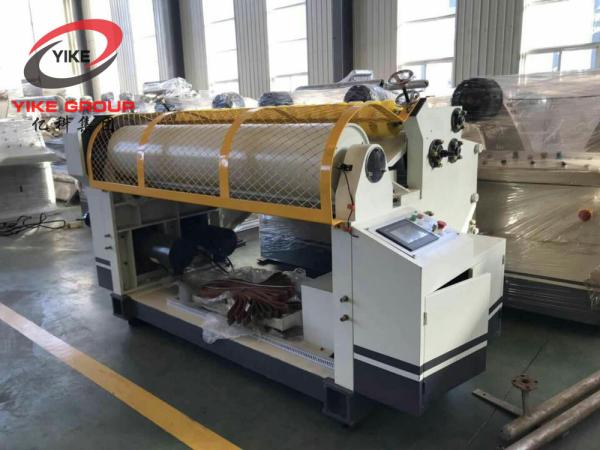

SF-280S fingerless type single facer

• Structural features:

• Electric heating model with 18 heating tube (If steam hearting, ignore this item)
• Adopt vacuum suction structure, with high pressure strong blower. Suction with silencer.
• base and wallboard cast iron wall,Wallboard thickness130mm.universal Joints.
• Regular technical parameters:

1,Effective width:1800mm

2,Operation direction:left or right(determined in accordance with customer plant)

3,Design speed:100m/min working speed:40m/min

4,Temperature range:200—260℃

5,Corrugated flute:(UV type or UVV type)

• Roller diameters parameters:

1,diameter of corrugated roller: ￠280mm

2,diameter of pressure roller: ￠284mm

3,diameter of glue roller: ￠216mm

4,diameter of preheat roller: ￠320mm

• Powered motor parameters:

1,main drive motor:7.5Kw rated voltage:380V 50Hz Continuous (S1) working standard

2,suction motor:7.5Kw rated voltage:380V 50Hz Continuous (S1) working standard

• Main purchased parts,materials and place of origin:

NC-1600 COMPUTER SHEET CUTTER MACHINE

• General technical parameters

• Working width:1600mm
• Mechanical speed:60m/min
• Minimum cut length:300mm
• Maximum cutting length:9000mm
• Cutting accuracy: uniform speed ±1.5mm

• Power motor and electrical parameters:

• Main drive motor power:3KW
• Full AC Synchronous Servo Control
• Papermaking motor power:3KW(Frequency)

Rotary paper receiving machine

• The machine receiving the highest speed 70m / min.
• The maximum length of the machine to receive paper 1600mm.
• The machine can achieve automatic points without stopping, automatic stacking, automatic sub-stacker.
• The maximum stacking height of the local stacking unit is 100mm.
• The automatic stacking machine covers an area of small, and save manpower, is the best choice for low-speed machine.
