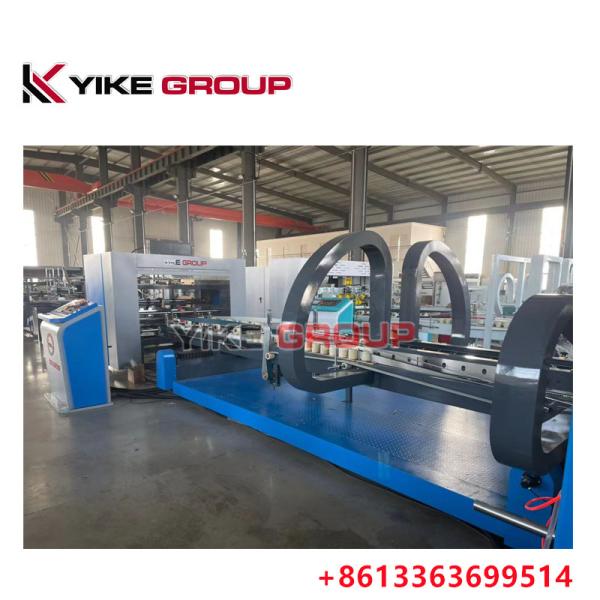

YK- 1224 Computer Type Auto Corrugated Box Gluing Machine From YIKE GROUP

Paper supply department

1.The paper feeding wheel is linked with the folding part, the speed is controlled by frequency conversion, and the paper feeding speed is 0-230m/min.

2.The front baffle and the paper feeding belt of the paper feeding section are adjustable from left to right, and equipped with an air cylinder clapping device, which claps the cardboard at regular intervals to ensure that the paper is fed neatly.

.3. The pressing roller is linked with the folding part, the height is adjustable, and the thickness of the cardboard is 2-8mm.

Gluing and folding part

1. The main motor adopts frequency conversion speed regulation system without noise, flexible and stable speed regulation.

4. The folding part is equipped with a cardboard correction device and an indentation correction device.

5. There are two rows of adjustable inner positioning guide wheel system in the folding part, which has higher forming precision.

6. Folding speed 0-230m/min.

Counting and stacking department

1.Pneumatic method is used for counting and ejection, PLC electric control, reliable action, accurate and fast.

2.It adopts PLC programming controller and touch screen digital control, which is easy to operate, reliable in action, input data without stopping, and automatically count.

3. The output part adopts the synchronous pressing method of the bottom conveyor belt and the upper pressing belt, so that the finished cartons are firmly glued and output neatly.

4.Differential gear adjustment is used to forcibly and effectively correct fishtail scissors and other phenomena.

Electric box control department

1. Ergonomically designed, the console is designed with an inclined plane, which is beautiful in appearance and comfortable to use.

2. The layout of the internal electrical components is reasonable, the wiring is neat, and the labels are clear.

3. The electrical components use Taiwan Delta as the main controller and frequency converter, with precise and stable control.

Equipment installation and power distribution

1. The installation requires a space of 15×4.2×3 (meters). For the convenience of operation and production, the two sides must be at least 1 meter away from the wall. The ground must be flat, and the equipment working surface must be adjusted horizontally.

2. This equipment uses 415V AC power supply. The power supply is directly connected to the input end of the distribution box. Please refer to the circuit schematic diagram for details. (If 110V voltage is required, please inform in advance).
