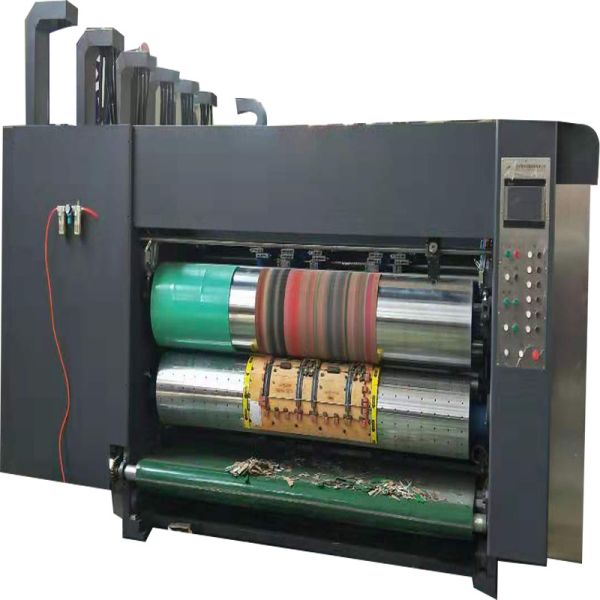

Full Automatic Cardboard Flexo Ink Printer Slotting Die-cutter Machine
Full Automatic Cardboard Flexo Ink Printer Slotting Die-cutter Machine
Full Automatic Cardboard Flexo Ink Printer Slotting Die-cutter Machine
Full Automatic Cardboard Flexo Ink Printer Slotting Die-cutter Machine
Full Automatic Cardboard Flexo Ink Printer Slotting Die-cutter Machine
Full Automatic Cardboard Flexo Ink Printer Slotting Die-cutter Machine
Full Automatic Cardboard Flexo Ink Printer Slotting Die-cutter Machine
Full Automatic Cardboard Flexo Ink Printer Slotting Die-cutter Machine
Full Automatic Cardboard Flexo Ink Printer Slotting Die-cutter Machine
Full Automatic Cardboard Flexo Ink Printer Slotting Die-cutter Machine
Specifications
Brand Name :
ZHENXING
Model Number :
INSIT922
Certification :
CE ISO9001
Place of Origin :
Hebei, China (Mainland)
MOQ :
1 set
Price :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
101 Sets Per Year
Delivery Time :
Delivered 120 days after receiving the deposit
Packaging Details :
Stretch film and wooden case,container
Condition :
New
After-sales Service Provided :
Engineers available to service machinery overseas
Color :
Customized
Application :
Machinery & Hardware
Packaging Type :
Bags, Cartons, Case
Automatic Grade :
Automatic
Driven Type :
Mechanical
Voltage :
Customized
Power :
30-50KW
Warranty :
1 year
Description

Full Automatic Cardboard Flexo Ink Printer Slotting Die-cutter Machine
Full Automatic Cardboard Flexo Ink Printer Slotting Die-cutter Machine
Technical parameters:

Parameter Unite Model
SYKM4218-2200 SYKM4218-2400 SYKM5215-2600 SYKM5215-2800 SYKM5215-3000
Max.machinery speed pcs/min 200 200 180 180 180
Economic printing speed pcs/min 180 180 150 150 150
Max.size of paperboard mm 1300×2400 1300×2600 1600×2800 1600×3000 1600×3200
Min.size of paperboard mm 270×600 370×600 420×650 420×650 420×650
Min.space
of slotting		 Obverse knife mm

160×160×160×160

 160×160×160×160
Reverse knife mm 280×80×280×80 280×80×280×80
Max.depth of slot mm 320 320 400 400 400
Skip feed size mm 1500×2400 1500×2600 1800×2800 1800×3000 1800×3200
Max.printing area m㎡ 1250×2200 1250×2400 1850×2600 1850×2800 1850×3000
Thickness of standard printing plate mm 7.2 7.2 7.2 7.2 7.2


Function of the whole machine:

  • Designed according to high request and for reliable function ,the operation of the machine is humanized ,which can accomplish the setting ,revision ,implement ,replacing and memory function in a short time with a exact date displayed
  • All the driving rollers adopt the high quality steel with hard chromium plated and the surface is polished
  • The driving gears adopt 20CrMnti high quality alloy steel which is heat treated and polished
  • Lubricate oil automatic balance device can keep the oil level in each unit
  • The machine is controlled by PLC with the function of “Automatic zero return” and memory function of printing location and carton size
  • lead edge feeding (kick feeding is optional)
  • The customer can choose steel anilox roller or ceramic anilox roller ,the lines of the anilox roller can also be chosen according to customer’s requirement
    Full Automatic Cardboard Flexo Ink Printer Slotting Die-cutter Machine
    About our factory:
    All mechanical parts are processed by our own factory.such massive costs are devoted to one purposes:to meet the highest quality standard,to produce the best machines.therefore, our machines are of exceptional quality and have a long service life.
    Full Automatic Cardboard Flexo Ink Printer Slotting Die-cutter MachineFull Automatic Cardboard Flexo Ink Printer Slotting Die-cutter MachineFull Automatic Cardboard Flexo Ink Printer Slotting Die-cutter MachineFull Automatic Cardboard Flexo Ink Printer Slotting Die-cutter Machine
