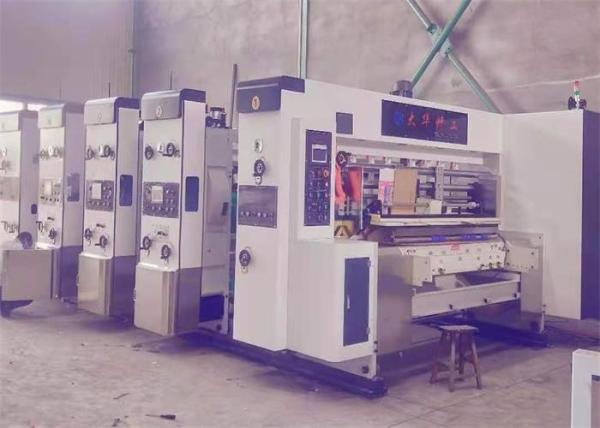

Corrugated Carton Box Printing Slotting Die Cutting Machine Water Ink
Corrugated Carton Box Printing Slotting Die Cutting Machine Water Ink
Corrugated Carton Box Printing Slotting Die Cutting Machine Water Ink
Corrugated Carton Box Printing Slotting Die Cutting Machine Water Ink
Corrugated Carton Box Printing Slotting Die Cutting Machine Water Ink
Corrugated Carton Box Printing Slotting Die Cutting Machine Water Ink
Specifications
Brand Name :
DAHUA
Model Number :
GYK1270
Certification :
CE , ISO, SGS
Place of Origin :
Hebei,China
MOQ :
1 set
Price :
usd 50000-200000 per set
Payment Terms :
T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability :
10 sets per Month
Delivery Time :
45-70 working days after order confirm
Packaging Details :
PP film wrapped outside,fix on the container by rope
Automatic grade :
Automatic
Warranty :
1 year
Voltage :
220V 380V 440V as customized
Printing material :
3-11mm thickness Corrugated Paperboard
Product name :
Automatic High Speed High Definition Corrugated Box Printing Machine
Work Speed :
200 pcs/min
Print Color :
1-6 for optional
Function :
corrugated box printing forming machine
Description

Fast Speed High Efficiency Water Ink Corrugated Carton Box Printing Slotting Die-Cutting Machine

Characteristics

  1. Adopting the leading edge feeding method and equipped with the suction auxiliary system on the work table, the general bending uneven cardboard can pass through smoothly.
  2. The transmission gear is a helical gear transmission system.
  3. Printing and slotting phase adjustment using electric digital 360 degree adjustment,save time and improve work efficiency.
  4. Driven by variable frequency motor, users can adjust the speed in a certain range according to their needs.
  5. The gap adjustment range of the pressing roller is large, suitable for three, five, seven layers of different thickness of cardboard, and the printing handwriting is clear, beautiful patterns, accurate color.
  6. The machine adopts electric detachable structure, the user can complete monochrome, two-color or multi-color printing separately according to the different needs of the product, and easy to maintain, and has the function of pneumatic locking, separate positioning, accurate, convenient and fast operation.
  7. Continuous paper feeding function.
  8. The function of stopping paper feeding when the stated number of sheets arrives.
  9. Set the function of early warning when the stated number of sheets arrives.
  10. Lack of paper stop feed function, anilox roller lifting at the same time, feed roll drop function, to ensure that each board is not empty printing.
  11. It has the function of cardboard test printing, the number of test printing sheets can be set.
  12. Each group is provided with a liquid crystal phase controller, which can adjust the phase.
  13. Plate changing function, can make the roller stop at the fixed position, hanging plate slot exposed, convenient for plate changing.
  14. Erasing one-key return function, this function can be used to remember the phase before erasing, and after erasing can make the roller back to the position previously remembered.
  15. Equipped with the function of rubber roller does not close to anilox roller and not inking, to prevent ink leakage.
  16. Printing roller is electrically driven horizontally.

Parameters:

No.
Item
Unit
Specification
GYK1270*2200
GYK1270*2500
GYK1270*2800
1
Machine inside width
mm
2400
2700
3000
2
Machine design speed
piece/min
200
200
200
3
Maximum feeding size
mm
1200*2200
1200*2500
1200*2800
4
Minimum feeding size
mm
380*700
380*700
380*700
5
Feeding by partition
mm
1600*2200
1600*2500
1600*2800
6
Maximum printing area
mm
1200*2040
1200*2340
1200*2640
7
Printing accuracy
mm
±0.5/±0.5/±0.75
±0.5/±0.5/±0.75
±0.5/±0.5/±0.75
8
Thickness of standard printing plate
mm
7.2
7.2
7.2
9
Thickness of printing paperboard
mm
3-11
3-11
3-11
10
Adjustment of printing roller
degree
360°
360°
360°
11
Axial adjustment of printing roller
mm
±10
±10
±10
12
Maximum Die cutting size
mm
1200*2150
1200*2450
1200*2750
13
Minimum slotting space
mm
290*60*290*60
290*60*290*60
290*60*290*60
14
Maximum slotting depth
mm
300
300
300
15
Die cutting thickness
mm
3-8
3-8
3-8

Corrugated Carton Box Printing Slotting Die Cutting Machine Water Ink

Corrugated Carton Box Printing Slotting Die Cutting Machine Water Ink

Corrugated Carton Box Printing Slotting Die Cutting Machine Water Ink
