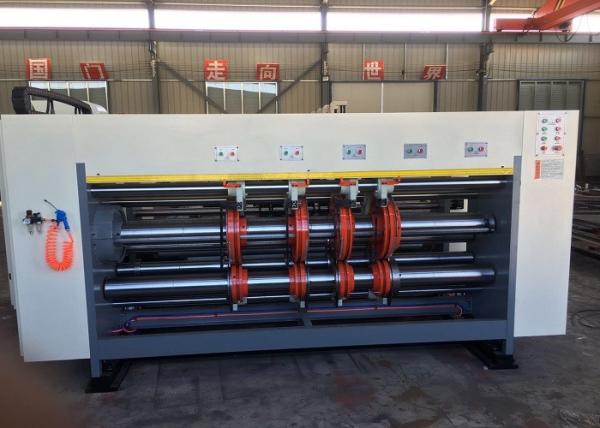

Automatic Feeding Rotary Slotter Machine 100 Pcs / Min
Automatic Feeding Rotary Slotter Machine 100 Pcs / Min
Specifications
Brand Name :
Dahua
Model Number :
LD-2500,2600,2800,3000
Certification :
CE,ISO,SGS
Place of Origin :
Hebei
MOQ :
1 Set
Price :
USD 13000-20000 per set
Payment Terms :
T/T, L/C, D/P, Western Union, MoneyGram, D/A
Supply Ability :
50 sets per month
Delivery Time :
25-40 days
Packaging Details :
Export standard package
Feeding way :
Independent Lead edge feeder
Work speed :
80-100pcs/min
Voltage :
220V/380V/440V 50HZ/60HZ
Warranty :
1 Year
Blade Material :
9CrSi
Product Name :
Economic type rotary slotter machine for corrugated carton box
Weight :
6 Tons
Control system :
Electric control by buttons
Description

Automatic Feeding Economic Type Rotary Slotter Machine 100 Pcs / Min

characteristic:

  1. The machine adopts Lead edge feeding structure,vacuum adsorption paper feeding,frequency conversion of suction can adjust the wind volume,increase the thin board and thebend board convey stability and accurately.
  2. Axial and vertical movement of the knife seat and height of the carton are controled and adjusted by electric.
  3. Interval is adjusted by high precise worm box with a range of 0-11mm. convenient and swift.
  4. Slotting Phase And Height Adjusting: Planetary gear structure; Slotting phase applies by electric digital adjusting with 360 degree in both running and stop situation.
  5. The slotter knives with crease adjust same time by electric.

Technical parameter:

Lead edge feeding unit

Independent lead edge feeding unit, adopt 4 units of feeding wheels
Max.feeding size 1450 x2600mm
Min feeding size 380x650mm
Wall thickness 50mm
Design speed 120pcs/min
Economic speed 80-100pcs/min

Blades up and down movement by electrical

Blades & creasing movement synchrounous by electric adjustment

Automatic Feeding Rotary Slotter Machine 100 Pcs / Min

Automatic Feeding Rotary Slotter Machine 100 Pcs / Min
