B C E Flute Corrugated Cardboard Production Line For Two Layer Corrugating Paperboard
B C E Flute Corrugated Cardboard Production Line For Two Layer Corrugating Paperboard
Specifications
Brand Name :
Dahua
Model Number :
SF-280
Certification :
CE,ISO
Place of Origin :
Hebei,China
MOQ :
1 set
Price :
USD 15000 - 50000 per set
Payment Terms :
T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
25-40 days
Packaging Details :
Export standard package
Flute type :
A, B, C, E, F, UV
Heating mode :
steam heating,electric heating
Voltage :
380V 50HZ
Warranty :
1 Year
Corrugated roller :
diameter 320
Speed :
60-80 meters/min
Function :
making 2 ply corrugated cardboard
Product name :

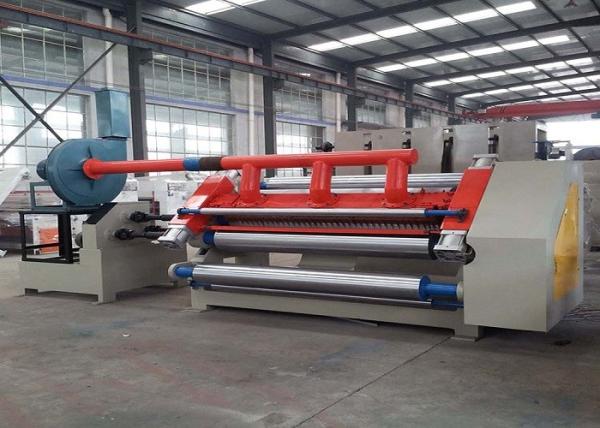

single facer corrugated cardboard machine
Description

B C E Flute Corrugated Board Prodcuion Line For Two Layer Corrugating Paperboard

B C E Flute Corrugated Cardboard Production Line For Two Layer Corrugating Paperboard

Characteristics:

  • 1. Vacuum suction type pulling cardboard with wind control device.
  • 2. Glue roller and fixed roller are designed to groups guide way slippage load-unload, convenient and swift.
  • 3. Use Gimbal drive with independent gear box, transmission more stable, close style gear transmission oiliness lubricated, prolong the use life of gear.
  • 4. The upper corrugating roller, pressure roller and glue roller adopt pneumatic control.
  • 5. Flute roller and pressure roller adopt high temperature resistant lubrication grease.
  • 6. Manual adjust the gluing quantity or electric adjustment.
  • 7. The upper-lower corrugating roller are made of 48CrMo high quality alloy steel, after heat-treatment. the rigidity is HRC58-60°, the surface are whetted and plating chrome.

Technical parameter:

Design speed 120-180m/min
Effective width

1400-2500mm
Corrugated roller diameter 280-360mm
Flute roller material 48CrMo alloy steel or tungsten is option
Flute type A, B, C, E flute are available
Flute roller hardness from 50-60degree
Warranty one year for spare parts change

B C E Flute Corrugated Cardboard Production Line For Two Layer Corrugating Paperboard

B C E Flute Corrugated Cardboard Production Line For Two Layer Corrugating Paperboard

B C E Flute Corrugated Cardboard Production Line For Two Layer Corrugating Paperboard
