PET Bottle Flakes Pet Granulator Machine Twin Screw Extruder
PET Bottle Flakes Pet Granulator Machine Twin Screw Extruder
PET Bottle Flakes Pet Granulator Machine Twin Screw Extruder
PET Bottle Flakes Pet Granulator Machine Twin Screw Extruder
PET Bottle Flakes Pet Granulator Machine Twin Screw Extruder
PET Bottle Flakes Pet Granulator Machine Twin Screw Extruder
PET Bottle Flakes Pet Granulator Machine Twin Screw Extruder
PET Bottle Flakes Pet Granulator Machine Twin Screw Extruder
PET Bottle Flakes Pet Granulator Machine Twin Screw Extruder
PET Bottle Flakes Pet Granulator Machine Twin Screw Extruder
PET Bottle Flakes Pet Granulator Machine Twin Screw Extruder
PET Bottle Flakes Pet Granulator Machine Twin Screw Extruder
PET Bottle Flakes Pet Granulator Machine Twin Screw Extruder
PET Bottle Flakes Pet Granulator Machine Twin Screw Extruder
Specifications
plastic processed :
PET
application :
Granules
Screw Design :
Double-screw
twin screw type :
Co-rotating Parallel Twin-screw
Screw Material :
W6Mo5Cr4V2
screw diameter (mm) :
62.4 mm
Screw L/D Ratio :
36:1
Screw Speed (rpm) :
400 rpm
Place of Origin :
Jiangsu, China
Brand Name :
Yongjie
voltage :
380V 50HZ
dimension(l*w*h) :
Model
power (kw) :
90
warranty :
1 Year
key selling points :
Competitive Price
video outgoing-inspection :
Provided
core components :
motor, PLC, Gearbox
machinery test report :
Provided
Brand :
YongJie
Color :
any color as your require
Material :
pet bottle flake
Function :
Cutting,pelletizing
Capacity :
200kg/h
Package :
According to your requirements
Input pet flake size :
<16mm
Input pet flake moisture :
0.2%-2%
IV loss :
5-10% according to materail
Super vacuum system :
5.5kw
After-sales Service Provided :
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
Egypt, Germany, Viet Nam, India, Argentina, South Korea
Marketing Type :
Ordinary Product
Certification :
CE ISO9001
Condition :
New
Showroom Location :
None
Applicable Industries :
Manufacturing Plant
Warranty of core components :
1 Year
Weight :
1t-10t
Description

PET bottle flakes pet granulator machine twin screw extruder

Product Description

Nanjing Yongjie started to make pet granules making machine since 2005.For PET flake moisture <=1%, IV loss is around 5%

Model type

Series

Barrel Diameter (mm)

Screw Diameter (mm)

Screw L/D

screw speed n(r/min)

Main motor power(Kw)

Screw torque T(N.m)

Torque rating (T/A3)

production capacity (kg/h)

SJSL-36

A/B/C/D

36

35.6

32-48

400/600

11/15/18.5/22

125-225

4.6-8.3

30-120

SJSL-51

A/B/C/D

51

50.5

32-52

500/600

45/55/75/90

405-680

5.1-8.5

120-400

SJSL-65

A/B/C/D

63

62.4

32-64

500/600

75/90/110/132

680-1200

4.8-8.5

180-750

SJSL-75

A/B/C/D

72

71

32-64

500/600

110/132/160/250

995-1890

4.6-8.7

300-1200

SJSL-95

A/B/C/D

94

93

32-64

500/600

250/315/450/550

2260-4510

4.7-8.7

700-2500

SJSL-135

A/B/C/D

135

133

32-48

400/500

550/750/900/1200

6200-10800

4.4-7.7

1550-6500
Image & Data

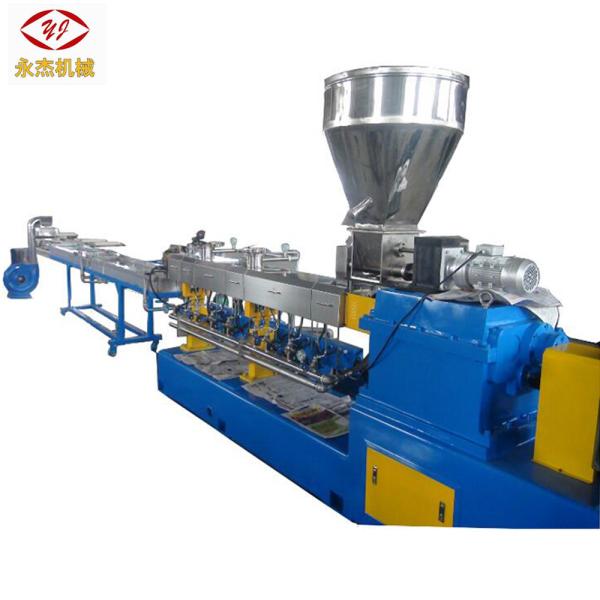

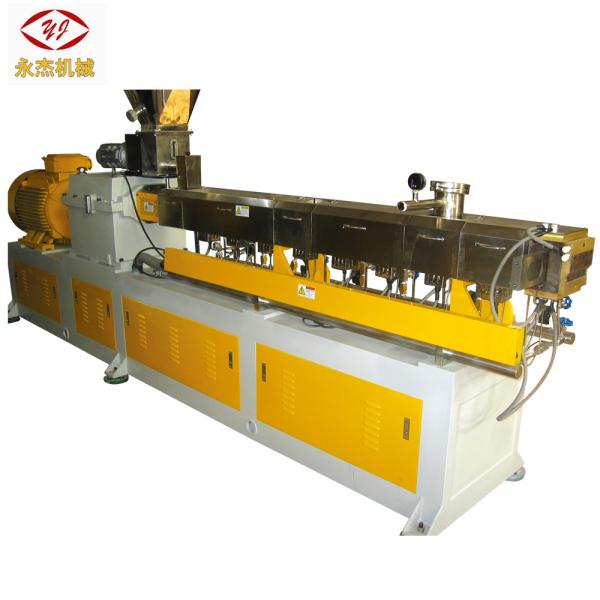

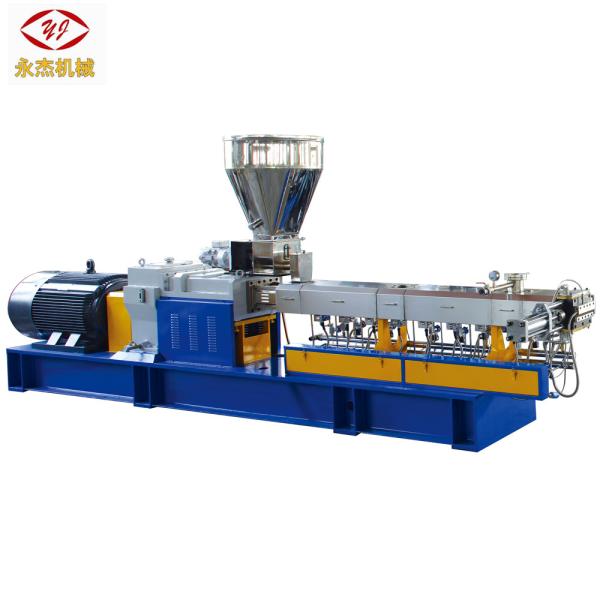

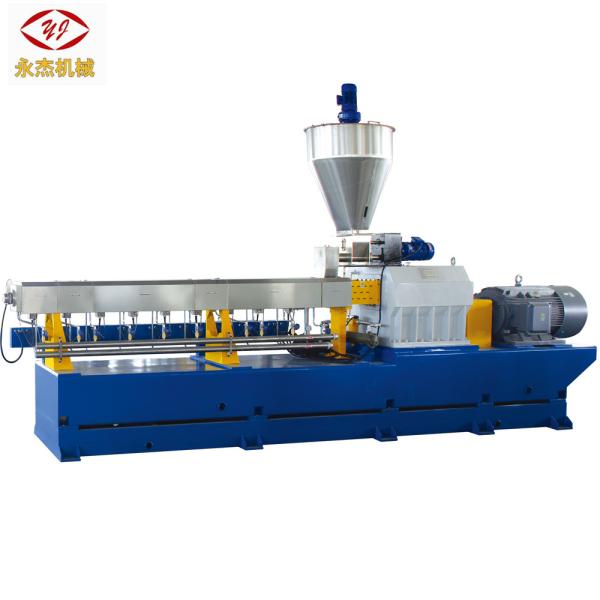

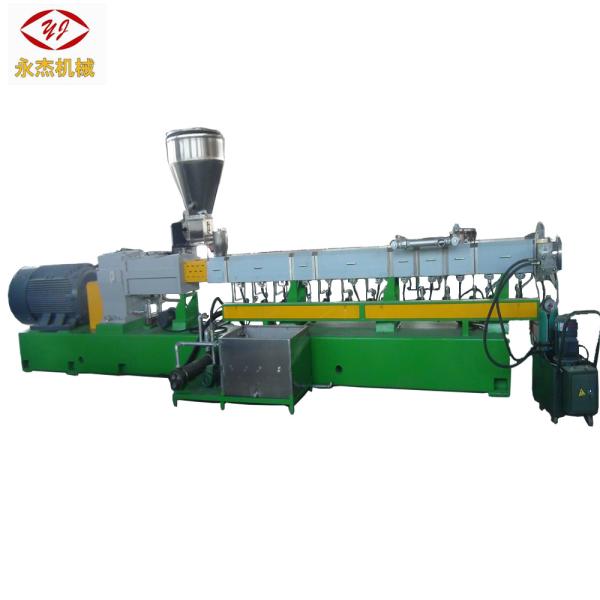

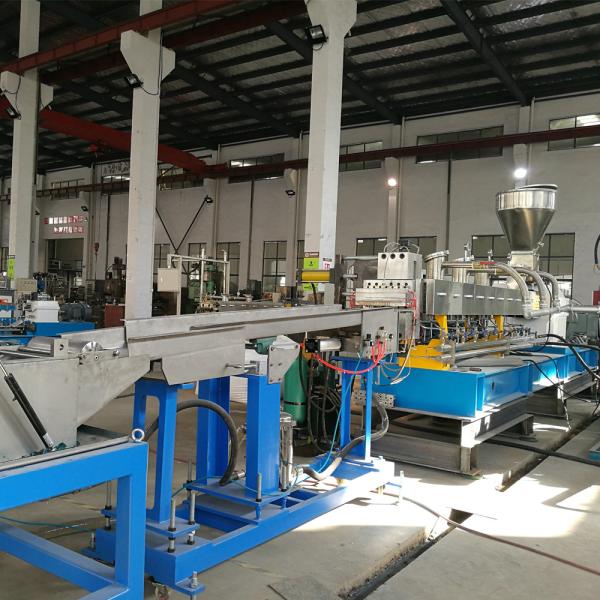

Photo of pet granulator machine

PET Bottle Flakes Pet Granulator Machine Twin Screw Extruder

PET Bottle Flakes Pet Granulator Machine Twin Screw Extruder
PET Bottle Flakes Pet Granulator Machine Twin Screw Extruder
PET Bottle Flakes Pet Granulator Machine Twin Screw Extruder

Application for water-ring hot face production line

1. Filling master batch: PE, EVA, etc. + caco3, talc, filling modified and carbon black etc.

2. LDPE, HDPE, LLDPE, MDPE, drivepipe, insulation material, crosslinking material,

cable coating material , thermal contraction pipe material.

3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic

elastomer, EVA and hot melt additives.

4. Color mater batch: PE, ABS, PS, EVA master batch, etc.

5. ABS, EVA flaming retarding master batch, etc.

6. PE, PP, PS filling and biodegradable masterbatch, etc.
