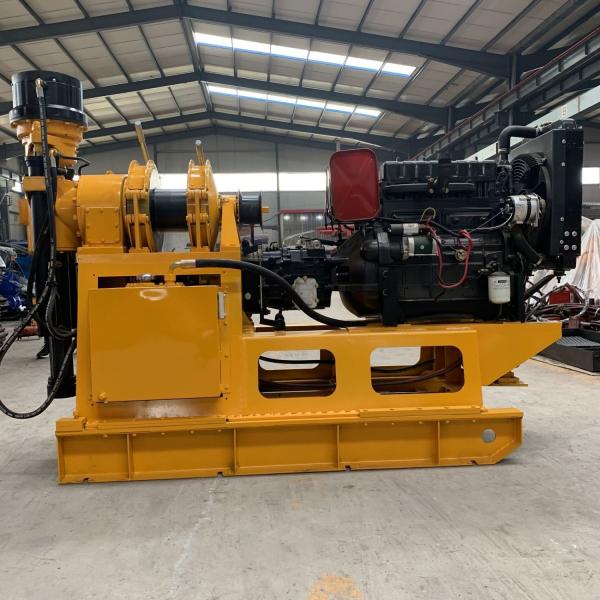

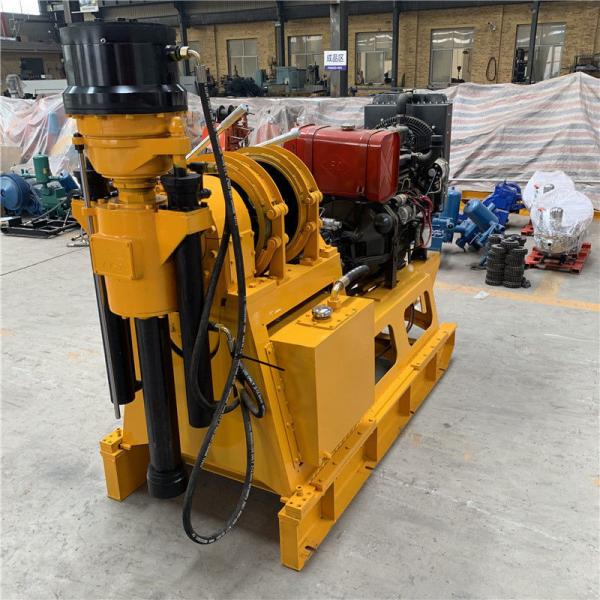

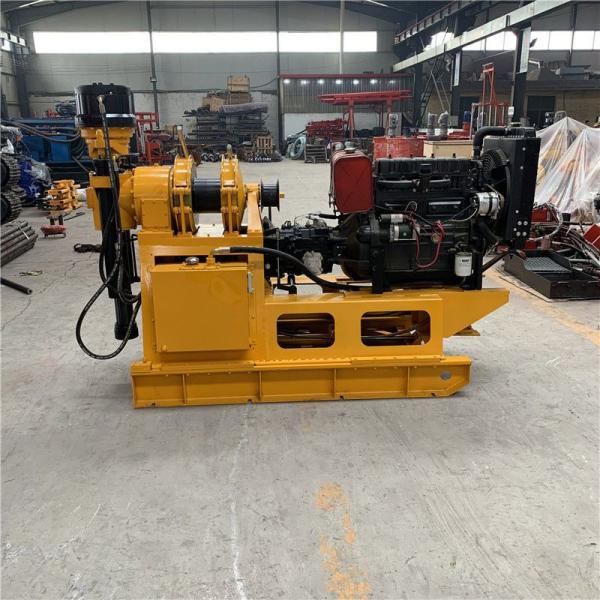

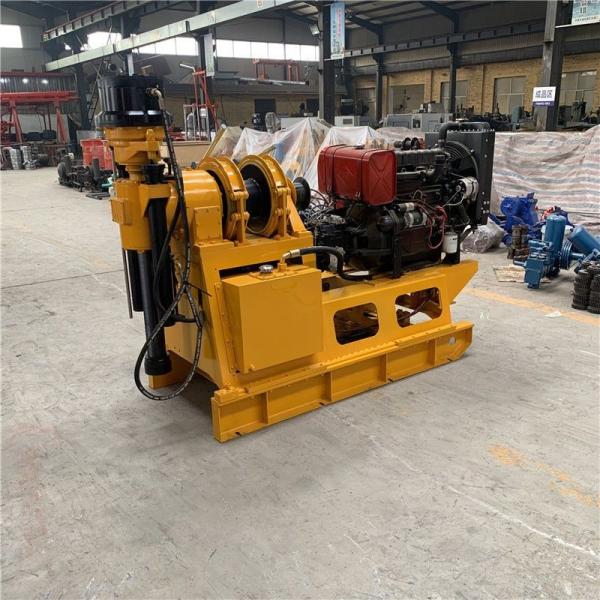

XY-2 Geological Hydraulic Core Drilling Rig With Vertical Shaft
XY-2 Geological Hydraulic Core Drilling Rig With Vertical Shaft
XY-2 Geological Hydraulic Core Drilling Rig With Vertical Shaft
XY-2 Geological Hydraulic Core Drilling Rig With Vertical Shaft
XY-2 Geological Hydraulic Core Drilling Rig With Vertical Shaft
XY-2 Geological Hydraulic Core Drilling Rig With Vertical Shaft
XY-2 Geological Hydraulic Core Drilling Rig With Vertical Shaft
XY-2 Geological Hydraulic Core Drilling Rig With Vertical Shaft
XY-2 Geological Hydraulic Core Drilling Rig With Vertical Shaft
XY-2 Geological Hydraulic Core Drilling Rig With Vertical Shaft
XY-2 Geological Hydraulic Core Drilling Rig With Vertical Shaft
XY-2 Geological Hydraulic Core Drilling Rig With Vertical Shaft
Specifications
Brand Name :
Aoxing
Model Number :
XY-2
Certification :
ISO9001
Place of Origin :
Hebei,China
MOQ :
1 Set
Supply Ability :
50 Sets/Month
Packaging Details :
in New Strong Plywood Case
Model NO :
XY-2
Motor :
Diesel Engine
Drill Hole Diameter :
76-300mm
Drill Hole Depth :
300m
Bit Type :
Diamond Bit
Drilling Way :
Rotary
Drilling angle :
90-65°
After-sales Service :
Provide Train Video or Remote
Warranty :
Main Parts Within Six Months
Description

Model XY-2 Widely Used Vertical Shaft Vertical Shaft Hydraulic Geological Core Drilling Rig with Strong Power

1. Scope of application of XY-2 hydraulic core drilling rig


XY-2 Drilling rig is suitable for industrial , civil construction and engineering geological survey work such as highways, railways, bridge foundations, dam sites, water conservancy, water wells, prospecting, shallow oil and natural gas mining, mine tunnel ventilation, drainage, and large-diameter foundations,Pile hole construction, etc. Depending on the layer, diamond, carbide, spiral and other drill bits can be used for configuration. This model of rig has the advantages of compact structure, light weight, small size and good detachability. This drilling rig is the rare and ideal equipment to adapt to new market demands.

2. Main features of XY-2 hydraulic core drilling rig

(1)The drilling rig adopts an automobile gearbox assembly with multiple speed stages and a reasonable speed adjustment range;

(2)With large torque and strong bearing capacity, it can realize remote control and speed change, and the operation is centralized and convenient;

(3)The drilling rig has high power and 2 reverse speeds, which is convenient for handling accidents;

(4)With a normally closed hydraulic chuck, it is convenient and flexible to operate;

(5)The vertical shaft through hole has a large diameter, which can be replaced with a large hexagonal active drill rod;

3. Technical parameters of XY-2 hydraulic core drilling rig

Model XY-2
Drilling depth 300m
Drilling diameter 300-75mm
Hole diameter 300mm
Final hole diameter 75mm
Drill rod Φ60
Drilling angle 90°--65°
Vertical axis
Vertical shaft forward speed 65-1172 r/min
Vertical shaft reverse speed 51-242 r/min
Vertical shaft reverse speed 560mm
Vertical shaft lifting capacity 6000kg
Main winch
Single rope lifting speed 0.5-1.9m/s
Wire rope diameter 12.5mm
Single rope lifting capacity 3000kg
Roll diameter 300mm
Roll capacity 50m
Gear pump
Gear oil pump CBF-F63/25
Front flow pressure 63L/min 20Mpa
After flow pressure 25L/min 20Mpa
Rig power
Diesel engine 33KW
Motor 22KW
Weight&Size
Rig weight 1480KG
Dimensions 2500*900*1800mm

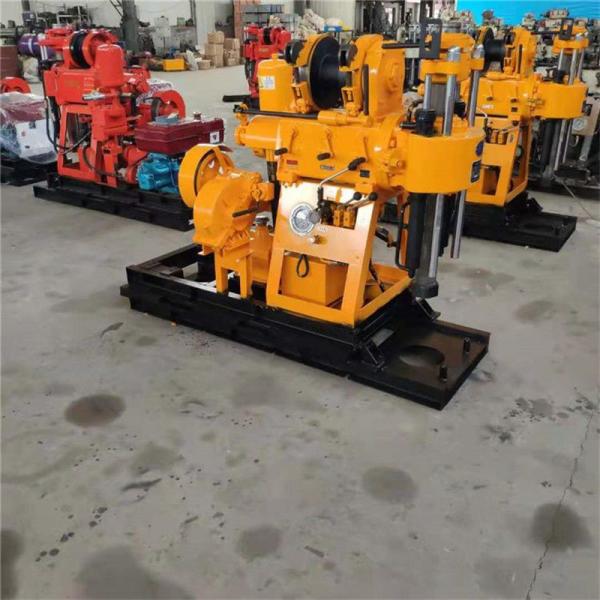

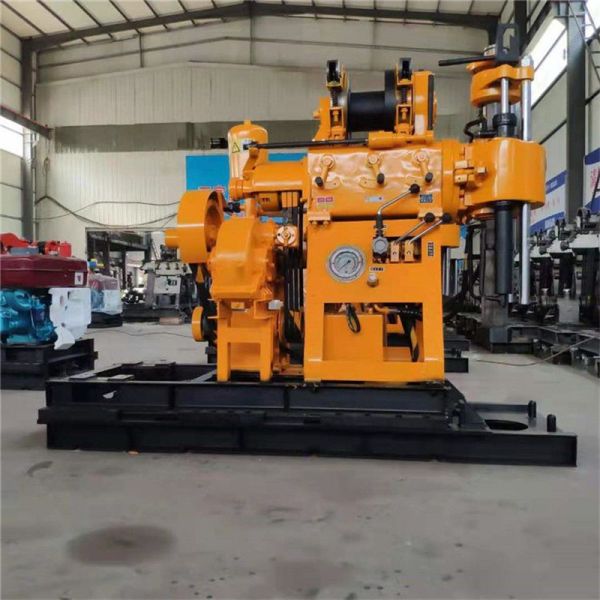

XY-2 Geological Hydraulic Core Drilling Rig With Vertical ShaftXY-2 Geological Hydraulic Core Drilling Rig With Vertical ShaftXY-2 Geological Hydraulic Core Drilling Rig With Vertical ShaftXY-2 Geological Hydraulic Core Drilling Rig With Vertical ShaftXY-2 Geological Hydraulic Core Drilling Rig With Vertical Shaft

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
