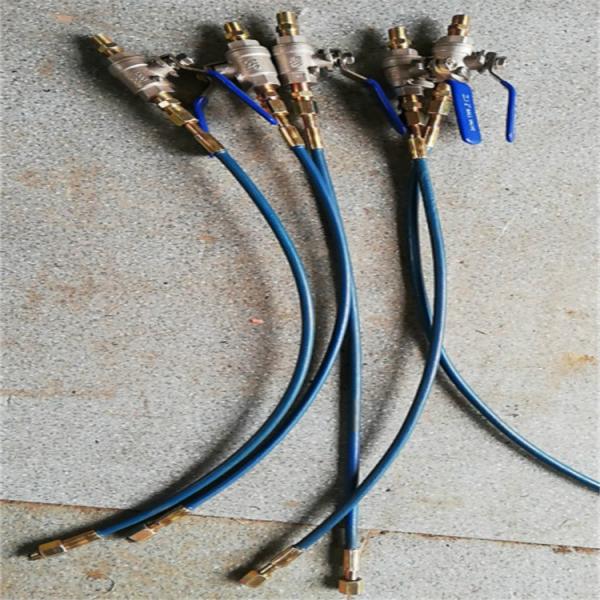

Water / Air Under Pressure Hose For Permeability Rock Lugeon Test
Water / Air Under Pressure Hose For Permeability Rock Lugeon Test
Water / Air Under Pressure Hose For Permeability Rock Lugeon Test
Water / Air Under Pressure Hose For Permeability Rock Lugeon Test
Water / Air Under Pressure Hose For Permeability Rock Lugeon Test
Water / Air Under Pressure Hose For Permeability Rock Lugeon Test
Water / Air Under Pressure Hose For Permeability Rock Lugeon Test
Water / Air Under Pressure Hose For Permeability Rock Lugeon Test
Water / Air Under Pressure Hose For Permeability Rock Lugeon Test
Water / Air Under Pressure Hose For Permeability Rock Lugeon Test
Water / Air Under Pressure Hose For Permeability Rock Lugeon Test
Water / Air Under Pressure Hose For Permeability Rock Lugeon Test
Specifications
Brand Name :
Aoxing
Model Number :
AQ、BQ、NQ、HQ、PQ、
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Packaging Details :
in Plywood Case
Model NO :
BQ/NQ/HQ/PQ
Type :
Single or Double Packer
Specification :
BQ/NQ/HQ/PQ
purpose :
Lugeon Test
Origin :
China
Description

Water/Air Under Pressure Hose for Permeability Rock Lugeon Test

Product Description

The Lugeon test, sometimes call also Packer test, is an in-situ testing method widely used to estimate the avarage hydraulic conductivity of rock mass. It is indeed In situ test of formation permeability performed by measuring the volume of water taken in a section of test hole when the interval is pressurized at given pressure (10 bars -150 psi). It is used primarily in variably permeable formations under evaluation of fracturating .

Deployment and operation is simple. The wireline permeability packer assemble is deployed down the drill rods until the bit seating sub lands on the drill rod bit. With the top seal assembly (tighthead) tightened, the packers are inflated and water is then pumped through the tighthead down the rods, through the packers and into the formation.
Model OD (mm) Expansion of scope (mm) Hole dia. (mm) Working pressure≤ (Mpa) Compressive strength (Mpa)
Test pressure Burst pressure
φ32-2 50±2.0 90 8-4 60 6 12 24
φ38-2 55±2.0 95 8-4 65 5 10 20
φ38-4 60±2.0 95 8-4 75 12 18 24
φ45-2 63±2.0 100 8-4 75 4 8 16
φ45-4 69±2.0 100 8-4 75 16 24 32
φ51-2 69±2.0 110 8-4 90 4 8 16
φ51-4 75±2.0 110 8-4 90 16 24 32
φ64-2 84±2.0 120 8-4 100 3 6 12
φ64-4 90±2.0 120 8-4 100 8 12 16
φ76-2 94±2.0 130 8-4 110 3 6 12
φ76-4 99±2.0 130 8-5 110 8 12 16
φ89-2 109±2.0 140 8-5 130 3 6 12
φ102-2 122±2.0 160 8-5 150 3 6 12

Water / Air Under Pressure Hose For Permeability Rock Lugeon TestWater / Air Under Pressure Hose For Permeability Rock Lugeon TestWater / Air Under Pressure Hose For Permeability Rock Lugeon TestWater / Air Under Pressure Hose For Permeability Rock Lugeon TestWater / Air Under Pressure Hose For Permeability Rock Lugeon Test
