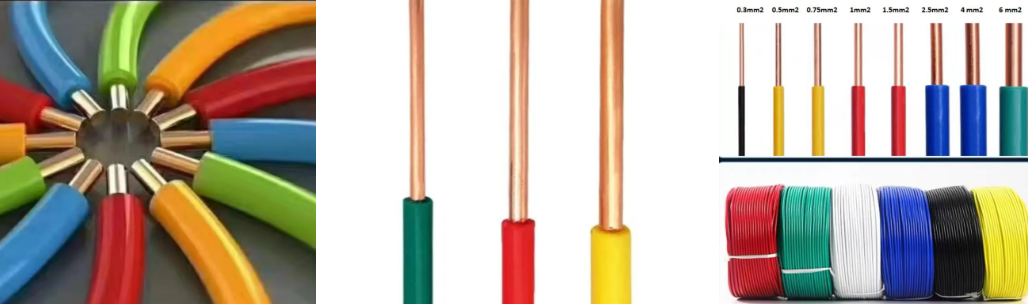

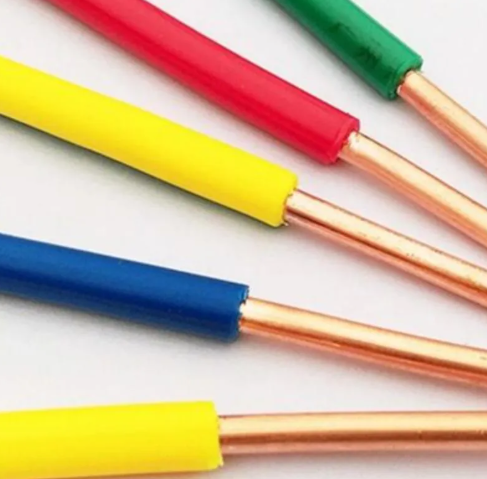

H07V-K H07V-U H07V-R 450/750V Single Core PVC Copper Cable | Building Wire
H07V-K H07V-U H07V-R 450/750V Single Core PVC Copper Cable | Building Wire
H07V-K H07V-U H07V-R 450/750V Single Core PVC Copper Cable | Building Wire
H07V-K H07V-U H07V-R 450/750V Single Core PVC Copper Cable | Building Wire
H07V-K H07V-U H07V-R 450/750V Single Core PVC Copper Cable | Building Wire
H07V-K H07V-U H07V-R 450/750V Single Core PVC Copper Cable | Building Wire
H07V-K H07V-U H07V-R 450/750V Single Core PVC Copper Cable | Building Wire
H07V-K H07V-U H07V-R 450/750V Single Core PVC Copper Cable | Building Wire
Specifications
Brand Name :
SYLAITH
Model Number :
H05V-K/H07V-K H07V-U
Certification :
ISO9001, CE, CCC, RoHS, VDE
Place of Origin :
JIANGSU,CHINA
MOQ :
100KG
Payment Terms :
30% TT DEPOSIT IN ADVANCE 70% BALANCE OF TT BEFORE LOADING
Supply Ability :
1000+ton/tons+month
Delivery Time :
7-15 days or as requirements
Packaging Details :
Standard Export Seaworthy Package. Suit for all kinds of transport, or as required
Model NO. :
H05V-K/H07V-K H07V-U
Conductor Material :
Copper
Insulation Material :
PVC
Material Shape :
Round Wire
Application :
Overhead, Heating, Underground
Transport Package :
Coil, Roll, Reel, Drum. 100m/Roll or More
Specification :
1.5mm2-300mm2
Description
H07V-K H07V-U H07V-R 450/750V Single Core PVC Copper Cable | Building Wire
Discover the H07V series of single-core PVC insulated copper cables, the reliable solution for fixed electrical installations in buildings and industrial equipment. Certified to CE, CCC, RoHS, and VDE standards, this 450/750V rated cable features 99.9% pure copper conductors and high-quality PVC insulation that ensures superior conductivity and durability. Available in cross-sections from 1.5mm² to 240mm² with customizable colors, our H07V cables offer excellent resistance to heat (70°C continuous), mechanical stress, and environmental factors. Perfect for housing electrical systems, control panels, and industrial lighting applications.
H07V-K H07V-U H07V-R 450/750V Single Core PVC Copper Cable | Building Wire
Technical Specifications
Nominal section mm² No. of Strands #/mm Insulation Thickness mm Overall Jacket Thickness mm Approx. Wt. kg/km Minimum insulation resistance at 70°C Ω*km
1.51/1.380.73.320.311.0
7/0.520.73.521.610.0
2.51/1.780.83.931.610.0
7/0.680.84.234.89.0
41/2.250.84.447.18.5
7/0.850.84.850.37.7
61/2.760.84.9657.0
7/1.040.85.471.26.5
107/1.351.07.01196.5
167/1.70181795.0
257/2.141.210.02815.0
357/2.521.211.53814.0
5019/1.781.413.05214.5
7019/2.141.4157343.5
9519/2.521.617.59623.5
12037/2.031.61911803.2
15037*2.251.821.014703.2
18537*2.52223.518103.2
24061*2522.226.523503.2
Basic Information
Model NO.
H05V-K/H07V-K H07V-U
Application
Overhead, Heating, Underground
Conductor Material
Copper
Sheath Material
PVC
Insulation Material
PVC
Material Shape
Round Wire
Certification
ISO9001, CE, CCC, RoHS, VDE
Brand
Sylaith
Color
as Requirement
Voltage
450V-750V
Number of Cores
Single Core
Feature
High Resistance
Transport Package
Coil, Roll, Reel, Drum. 100m/Roll or More
Specification
1.5mm2-300mm2
Trademark
Sylaith
Origin
China
HS Code
8544492100
Production Capacity
60000km/Year
H07V-K H07V-U H07V-R 450/750V Single Core PVC Copper Cable | Building Wire
Applications
  • Building Electrical Systems: Fixed wiring in residential and commercial buildings
  • Electrical Control Panels: Power distribution and control circuits
  • Industrial Lighting: Factory and workshop illumination systems
  • Power Installations: Fixed installations with AC rated voltage 450/750V and below
  • Equipment Wiring: Internal wiring for electrical appliances and machinery
H07V-K H07V-U H07V-R 450/750V Single Core PVC Copper Cable | Building Wire
Packing and Shipping
H07V-K H07V-U H07V-R 450/750V Single Core PVC Copper Cable | Building Wire
Frequently Asked Questions
Q1: What is the difference between H07V-K, H07V-U, and H07V-R?
A: These are different versions of the same cable standard with minor variations in construction and flexibility. H07V-K is typically more flexible, H07V-U is for fixed installations, and H07V-R refers to the general single-core construction.
Q2: What is the maximum temperature rating for H07V cables?
A: The standard H07V cables have a long-term allowable working temperature of 70°C, with short-term capability up to 105°C.
Q3: Can these cables be used outdoors or in conduit systems?
A: Yes, they are suitable for both indoor use and outdoor applications when properly protected in conduits or trunking systems.
Q4: What is the minimum bending radius for installation?
A: For cables with outer diameter less than 25mm, the minimum bending radius is 4* the diameter; for 25mm and above, it's 6* the diameter.
Q5: Are custom colors and lengths available?
A: Yes, we offer customizable colors and standard lengths of 100m/roll or as per customer requirements.
Q6: What certifications does this cable have?
A: Our H07V series is certified with ISO9001, CE, CCC, RoHS, and VDE standards, ensuring international quality and safety compliance.
