Specifications
Brand Name :
Coolmay
Model Number :
CMA860S
Place of Origin :
shenzhen china
MOQ :
1 unit
Payment Terms :
T/T,Western Union
Supply Ability :
100,000 set per month
Delivery Time :
3-7 work days
Packaging Details :
Packed with standard carton box
Dimensions :
151*97*48mm
Weight :
about 400g
Temperature :
-5℃~+50℃
Humidity :
40~90%RH
Vibration :
5.9m/s² MAX
Storage Temperature :
-20℃~80℃
Altitude :
Below 1000 meters
Description

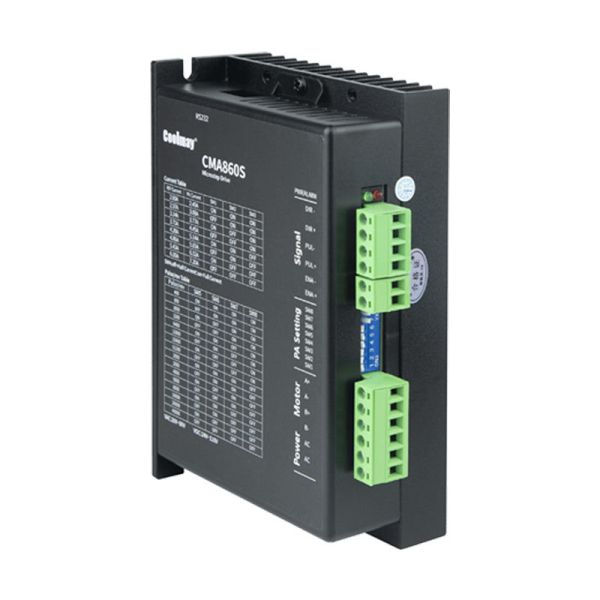

CM Series Open-Loop Stepper Motor Drive CMA860S
High-performance stepper motor drive featuring automatic setting function and variable current frequency conversion technology for precise motion control applications.
Technical Specifications
Parameter Specification
Model CMA860S
Output Current Operating Temperature -20°C to 60°C (no freezing)
Input Power AC24V-80V/DC24-110V; Typical value DC48V
Control Signal Input Current 6-16mA
Control Signal Interface Level DC4.5-28V
Pulse Frequency 0-200KHz
Input Minimum Pulse Width 1.5μs
Insulation Resistance 500MΩ
Number of Phases 2
Segmentation Any subdivision
Adapted Motor Base 86
Product Features
  • Advanced 32-bit DSP digital processing technology with variable current and frequency conversion
  • Low driver heat generation with minimal motor vibration for smooth operation
  • Built-in microstepping technology for high precision even under low microstepping conditions
  • Configurable microstepping values from 200 to 51200 and adjustable current within rated range
  • Filtering time adjustment via DIP switches for optimized performance
  • Power-on automatic parameter tuning for optimal operating parameters
Application Scenarios
Coolmay CM Series CMA860S Stepper Motor Driver with DC4.5-28V Input Automatic Setting Function and Variable Current Frequency Conversion Technology
About Coolmay
Coolmay CM Series CMA860S Stepper Motor Driver with DC4.5-28V Input Automatic Setting Function and Variable Current Frequency Conversion Technology
Founded in March 2006, Coolmay stands as a premier brand in industrial automation, serving over 10,000 customers across 200+ countries. Our team of 200+ global professionals, including 40+ R&D specialists, has completed 55,000+ projects and secured 60+ intellectual property rights. We deliver advanced, reliable solutions including PLC, HMI+PLC all-in-one machines, HMI, power supply, servodrives, stepperdrives, VFDs, and IoT modules engineered for precision and efficiency in smart manufacturing.
Our Partners
Coolmay CM Series CMA860S Stepper Motor Driver with DC4.5-28V Input Automatic Setting Function and Variable Current Frequency Conversion Technology
Industry Exhibitions
Coolmay CM Series CMA860S Stepper Motor Driver with DC4.5-28V Input Automatic Setting Function and Variable Current Frequency Conversion Technology
Certifications & Compliance
Coolmay products are fully compliant with CE and RoHS regulations, and are manufactured under ISO 9001-certified quality management systems.
Coolmay CM Series CMA860S Stepper Motor Driver with DC4.5-28V Input Automatic Setting Function and Variable Current Frequency Conversion Technology
Payment Methods
We accept a variety of secure payment methods on AliExpress, including Western Union, WeChat, AliPay, and PayPal (where available), as well as international bank transfers (T/T). All transactions are protected under AliExpress Buyer Protection for your peace of mind.
Warranty & After-Sales Service
18-Month Manufacturer Warranty
Covers hardware defects and system malfunctions under normal use.
Lifetime Technical Support
Remote assistance available for configuration, firmware, and integration.
Returns & Exchanges
For damaged shipments, please contact us within 3 days with photo evidence.
