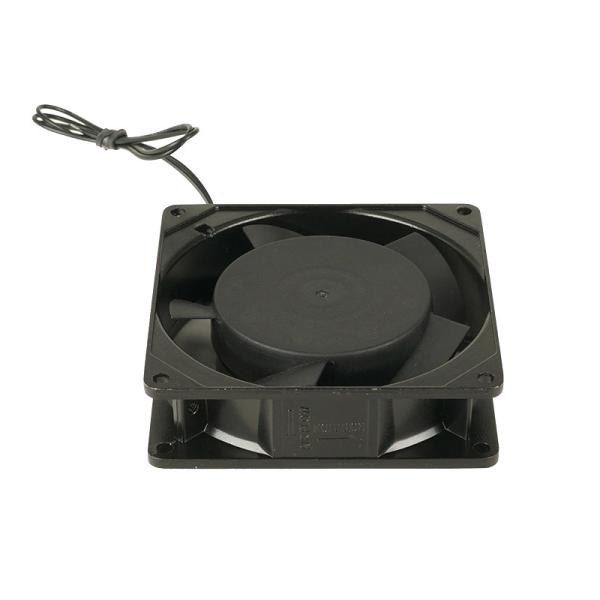

High CFM 92x92x25mm AC Axial Cooling Fan , Ball Bearing Cooling Fan Black
High CFM 92x92x25mm AC Axial Cooling Fan , Ball Bearing Cooling Fan Black
High CFM 92x92x25mm AC Axial Cooling Fan , Ball Bearing Cooling Fan Black
High CFM 92x92x25mm AC Axial Cooling Fan , Ball Bearing Cooling Fan Black
High CFM 92x92x25mm AC Axial Cooling Fan , Ball Bearing Cooling Fan Black
High CFM 92x92x25mm AC Axial Cooling Fan , Ball Bearing Cooling Fan Black
Specifications
Brand Name :
Surmount
Model Number :
RG9225
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
50PCS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
600 pieces per day
Delivery Time :
5~8 working days
Packaging Details :
Carton
Size :
92x92x25mm
Frame Material :
Aluminium Alloy
Impeller Material :
Plastic
Weight :
280g
Rated Voltage :
100~125V/220~240V
Noise :
17~35dBA
Rated Current :
0.05~0.12A
Rated Input Power :
8~14W
Speed :
2000~2900RPM
Bearing Type :
Ball/Sleeve
Air Flow :
21~37CFM
Lead Wire :
AWG#22 UL 1007(Optional)
Life Time :
50000 Hours
Mounting :
Free standing
Description

High CFM 92x92x25mm Long Life Cleaner Fan 9225 220V AC Ball Bearing Cooling Fan

What is an AC axial fan?

Axial AC fans are a type of fan that blows air along the axis of the fan—that is, the fan's curved blades force air to move in parallel with the shaft on which the blades rotate. ...

Some of the typical applications for AC cooling fans include Industrial equipment. Manufacturing machines. White goods.

What are axial fans used for?

In general, an axial-flow fan is suitable for a larger flow rate with a relatively small pressure gain and a centrifugal fan for a comparatively smaller flow rate and a large pressure rise. They are used to supply fresh air, suck air from return air trenches, suck air from rotary filters, exhaust air out, etc.


AC Axial Cooling Fan RG9225

Energy Saving Noise Reduction Soft Wind Long Lasting

Basic Parameter:

Model No. Bearing Frequency Voltage Current Rated Input Power Air Flow Static pressure Noise Speed
(Hz) (V) (A) (W) (CFM) (mm-H2O) (dBA) (RPM)
RG9225B(S)1H Ball/Sleeve 50/60Hz 100~125V 0.12/0.10 14/13.5 30/37 3.3/4.83 32/37 2500/2900
RG9225B(S)1M 0.09/0.08 11/10 25/30 3/3.5 25/33 2300/2600
RG9225B(S)1L 0.07/0.07 9/8

21/22

 2.7/2.6 22/24 2000/2200
RG9225B(S)2H 220~240V 0.07/0.06 14/13.5 30/37 3.3/4.83 32/37 2550/2900
RG9225B(S)2M 0.06/0.06 11/10 25/30 3/3.5 25/33 2300/2600
RG9225B(S)2L 0.05/0.05 9/8 21/22 2.7/2.6 22/24 2000/2200

All designs and specifications are for reference only and are subject to change without prior notice.

The different customer requirements and different raw materials will lead to different data.

The provider data are used for reference only. For future information, please contact us.

Customized Support: OEM, ODM.

After-sales Service Provided: Free Spare Parts

Storage Temperature: -20℃~80℃

Operating Temperature: -10℃~70℃

Insulation Class: Class B

Motor: Shaded Pole Induction Motor

Waterproof Class: IP55

Applicable:

High CFM 92x92x25mm AC Axial Cooling Fan , Ball Bearing Cooling Fan Black

Power Connection:

Terminal

High CFM 92x92x25mm AC Axial Cooling Fan , Ball Bearing Cooling Fan Black

Lead Wire

High CFM 92x92x25mm AC Axial Cooling Fan , Ball Bearing Cooling Fan Black

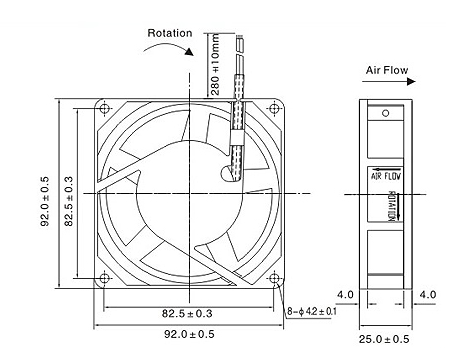

Drawing:

High CFM 92x92x25mm AC Axial Cooling Fan , Ball Bearing Cooling Fan Black

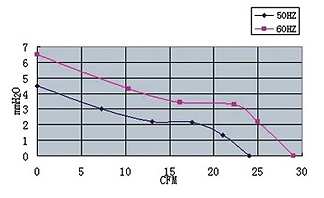

Characteristic Curve:

High CFM 92x92x25mm AC Axial Cooling Fan , Ball Bearing Cooling Fan Black

Parts:

High CFM 92x92x25mm AC Axial Cooling Fan , Ball Bearing Cooling Fan Black

Payment:

1.Trade Assurance: In the first order, we suggest you use Trade Assurance.

2.T/T: If stocks,100% payment before shipping; if customized order, 30% deposit before production and balance 70% should be paid before delivery.

3.Western Union, Money Gram, Paypal, all available.

4.L/C: for large order.
High CFM 92x92x25mm AC Axial Cooling Fan , Ball Bearing Cooling Fan Black

Shipping:

1.ln general, we use international express, DHL, UPS,FedEx,EMS,TNT, etc.Large order: by air or sea, you should choose it.

2. if you have your own forwarder, please tell us the detailed information.

High CFM 92x92x25mm AC Axial Cooling Fan , Ball Bearing Cooling Fan Black

FAQ

1.What is a bearing?
A: Fan bearing includes Sleeve Bearing and Ball Bearing, the life expectancy of sleeve bearing fan is 30000hours, while ball bearing is 50000hours or more.

2.How do we carry out quality control?
A: Usually, there are two ways to monitor reliability during the manufacturing process.

3.Are you a manufacturer?
A: Sure, We are manufacturer specialized in a large variety of Cooling fan for over 10 years, Our products include axial flow fan, blower fan


4.Do you provide samples? is it free or extra?
A: Yes, sample cost will be returned once place a regular order.
