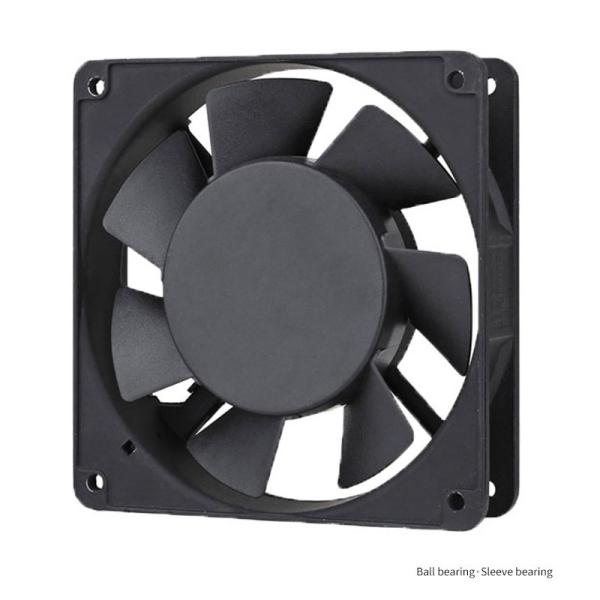

240V 120x120x25mm AC Axial Cooling Fan Aluminium Alloy With 7 Leaves
240V 120x120x25mm AC Axial Cooling Fan Aluminium Alloy With 7 Leaves
240V 120x120x25mm AC Axial Cooling Fan Aluminium Alloy With 7 Leaves
240V 120x120x25mm AC Axial Cooling Fan Aluminium Alloy With 7 Leaves
240V 120x120x25mm AC Axial Cooling Fan Aluminium Alloy With 7 Leaves
240V 120x120x25mm AC Axial Cooling Fan Aluminium Alloy With 7 Leaves
Specifications
Brand Name :
Surmount
Model Number :
RG12025(7 leaves)
Certification :
CE
Place of Origin :
China
MOQ :
50PCS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
600 pieces per day
Delivery Time :
5~8 working days
Packaging Details :
Carton
Size :
120x120x25mm
Frame Material :
Aluminium Alloy
Impeller Material :
Plastic
Weight :
320g
Rated Voltage :
100~125V/220~240V
Noise :
29~40dBA
Rated Current :
0.05~0.19A
Rated Input Power :
13~19W
Speed :
1700~2400RPM
Bearing Type :
Ball/Sleeve
Air Flow :
48~78CFM
Lead Wire :
AWG#22 UL 1007(Optional)
Life Time :
50000 Hours
Mounting :
Free standing
Description

AC Axial Cooling Fan 120x120x25mm 110V 220V 12025 7 Leaves Shaded Pole Induction Motor

What is an AC axial fan?
Axial AC fans are a type of fan that blows air along the axis of the fan—that is, the fan's curved blades force air to move in parallel with the shaft on which the blades rotate. ...
Some of the typical applications for AC cooling fans include Industrial equipment. Manufacturing machines. White goods.

What are axial fans used for?
In general, an axial-flow fan is suitable for a larger flow rate with a relatively small pressure gain and a centrifugal fan for a comparatively smaller flow rate and a large pressure rise. They are used to supply fresh air, suck air from return air trenches, suck air from rotary filters, exhaust air out, etc.


AC Axial Cooling Fan RG12025

Energy Saving Noise Reduction Soft Wind Long Lasting

Basic Parameter:

Model No. Bearing Frequency Voltage Current Rated Input Power Air Flow Static pressure Noise Speed
(Hz) (V) (A) (W) (CFM) (mm-H2O) (dBA) (RPM)
RG12025B(S)1H Ball/Sleeve 50/60Hz 100~125V 0.19/0.18 19/18 66/78 3.56/4.06 38/40 2200/2400
RG12025B(S)1M 0.16/0.15 16/15 58/58 3/3.2 35/35 2000/2000
RG12025B(S)1L 0.13/0.11 14/13 50/48 2.78/2.68 30/29 1800/1700
RG12025B(S)2H 220~240V 0.09/0.09 19/18 66/78 3.56/4.06 38/40 2200/2400
RG12025B(S)2M 0.07/0.07 16/15 58/58 3/3.2 35/35 2000/2000
RG12025B(S)2L 0.05/0.05 14/13 50/48 2.78/2.68 30/29 1800/1700

All designs and specifications are for reference only and are subject to change without prior notice.

The different customer requirements and different raw materials will lead to different data.

The provider data are used for reference only. For future information, please contact us.

Customized Support: OEM, ODM.

After-sales Service Provided: Free Spare Parts

Storage Temperature: -20℃~80℃

Operating Temperature: -10℃~70℃

Insulation Class: Class B

Motor: Shaded Pole Induction Motor
Power Connection: Lead wire, Terminal

Applicable: Manufacturing Plant, Machinery Repair Shops, etc

240V 120x120x25mm AC Axial Cooling Fan Aluminium Alloy With 7 Leaves

Power Connection:

Terminal

240V 120x120x25mm AC Axial Cooling Fan Aluminium Alloy With 7 Leaves

Lead Wire

240V 120x120x25mm AC Axial Cooling Fan Aluminium Alloy With 7 Leaves

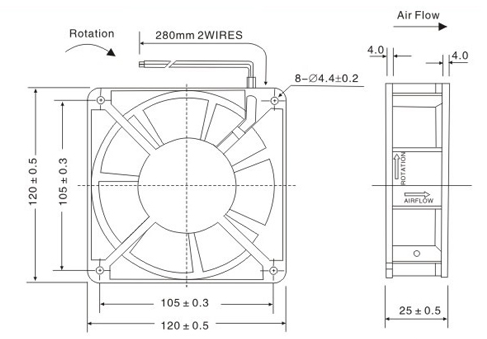

Drawing:

240V 120x120x25mm AC Axial Cooling Fan Aluminium Alloy With 7 Leaves

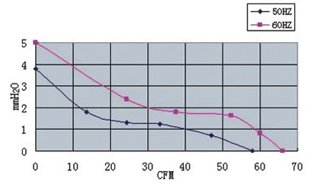

Characteristic Curve:

240V 120x120x25mm AC Axial Cooling Fan Aluminium Alloy With 7 Leaves

Parts:

240V 120x120x25mm AC Axial Cooling Fan Aluminium Alloy With 7 Leaves
