High CFM Circular Cooling Fan
High CFM Circular Cooling Fan
High CFM Circular Cooling Fan
High CFM Circular Cooling Fan
High CFM Circular Cooling Fan
High CFM Circular Cooling Fan
Specifications
Brand Name :
Surmount
Model Number :
RGW17051B2HT
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
50PCS
Price :
Negotiable
Supply Ability :
30 pieces per day
Delivery Time :
5~8 working days
Packaging Details :
Carton
Frame Material :
Aluminium Alloy
Impeller Material :
Aluminium Alloy
Mounting :
Free standing
Motor :
Outer Rotor Motor
Bearing Type :
Ball bearing
Size :
170x170x51mm
Rated Voltage :
220V
Weight :
842g
Noise :
49/79 dBA
Rated Input Power :
65/75 W
Frequency :
50/60Hz
Rated Current :
0.22A
Speed :
2600/3000RPM
Airflow :
170/196CFM
Lifetime :
4000 Hours
Description

AC Axial All-Metal Cooling Fan 170x170x51mm 220V 17051 Heat Dissipation For Cabinets

What is an AC axial fan?
Axial AC fans are a type of fan that blows air along the axis of the fan—that is, the fan's curved blades force air to move in parallel with the shaft on which the blades rotate. ...
Some of the typical applications for AC cooling fans include Industrial equipment. Manufacturing machines. White goods.

What are axial fans used for?
In general, an axial-flow fan is suitable for a larger flow rate with a relatively small pressure gain and a centrifugal fan for a comparatively smaller flow rate and a large pressure rise. They are used to supply fresh air, suck air from return air trenches, suck air from rotary filters, exhaust air out, etc.

Overview

Color
Black
Bearing Type
Dual ball
Power Source
AC 220V
Impeller
7 Leaves
Motor
Outer Rotor Motor
Motor Protection
Impedance protected
Frame Material
Aluminum alloy
Impeller Material Aluminum alloy
Size
170x170x51mm
Frequency
50/60Hz
Current
0.22A
Operating Temperature
-10℃~70℃
Storage Temperature
-40℃~80℃
Weight
842g
Lifetime
50000 hours
Specification
Model
RGW17050B2HL
Bearing
Dual Ball
Rated current (A)
0.22
Nominal Voltage(V)
220
Power(W)
18.4
Frequency (Hz)
50/60
Nominal speed (RPM)
2600/3000
Air flow(CFM)
170/196
Noise (dBa)
49/79
static air pressure (Inch-H2O)
11.5/14

Applicable: Garment Shops, Building Material Shops, etc

High CFM Circular Cooling Fan

Power Connection(Optional):

Terminal

High CFM Circular Cooling Fan

Lead Wire

High CFM Circular Cooling Fan

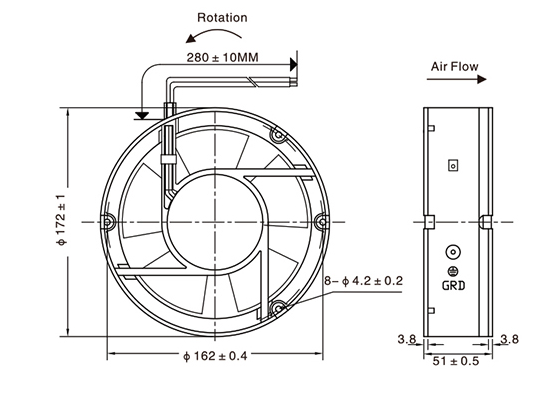

Drawing:

High CFM Circular Cooling Fan

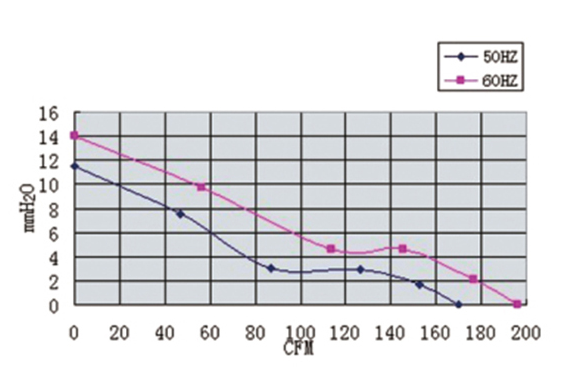

Characteristic Curve:

High CFM Circular Cooling Fan


Parts:

High CFM Circular Cooling Fan

Applicable: Manufacturing Plant, Machinery Repair Shops, etc

Payment:

1.Trade Assurance: In the first order, we suggest you use Trade Assurance.

2.T/T: If stocks,100% payment before shipping; if customized order, 30% deposit before production and balance 70% should be paid before delivery.

3.Western Union, Money Gram, Paypal, all available.

4.L/C: for large order.
High CFM Circular Cooling Fan

Shipping:

1.ln general, we use international express, DHL, UPS,FedEx,EMS,TNT, etc.Large order: by air or sea, you should choose it.

2. if you have your own forwarder, please tell us the detailed information.

High CFM Circular Cooling Fan

FAQ

1.How about the lifetime of a fan?

Life Expectancy:

Dual Ball Bearing:50000 hours

Sleeve Bearing:30000 hours

2.What affects the quoted price for the fan?

The specification(size),bearing type and voltage.

3.Delivery time?

Sample lea time:3-5 days

Delivery lead time:2 weeks

4.Payment of terms?

Payment by T/T.

100% payment for sample orders.

30% deposit 70% balance before shipment.

5. Delivery ways?

FedEx, DHL, UPS, TNT Door to Door service, By Air, By Sea, etc.
