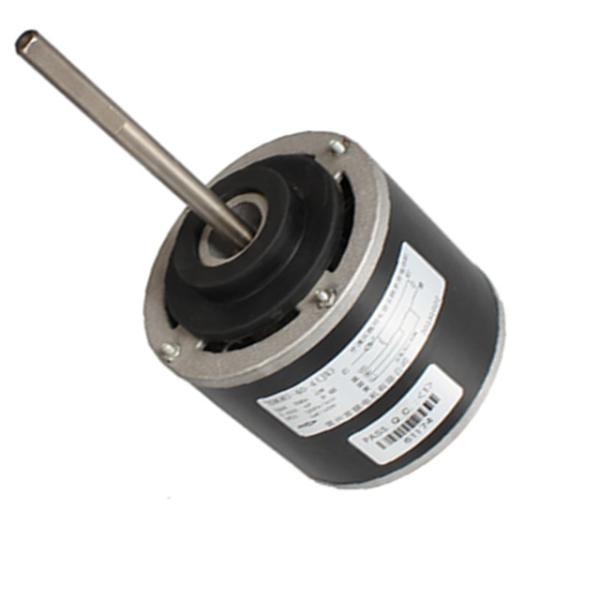

Thermal Protection Single Phase Ac Motor for Air Purifier / Heat Pump Fan Motor for HVAC System
Thermal Protection Single Phase Ac Motor for Air Purifier / Heat Pump Fan Motor for HVAC System
Thermal Protection Single Phase Ac Motor for Air Purifier / Heat Pump Fan Motor for HVAC System
Thermal Protection Single Phase Ac Motor for Air Purifier / Heat Pump Fan Motor for HVAC System
Thermal Protection Single Phase Ac Motor for Air Purifier / Heat Pump Fan Motor for HVAC System
Thermal Protection Single Phase Ac Motor for Air Purifier / Heat Pump Fan Motor for HVAC System
Specifications
Place of Origin :
Made in China
Brand Name :
CPMDJ
Model Number :
YDK84-40-4
Certification :
CCC
Supply Ability :
10000000
Packaging Details :
Foam+Carton
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
TT, LC
Delivery Time :
15-35 days
Type :
Asynchronous Motor
Frequency :
50/60Hz, 50/60HZ
Phase :
Single-phase
Protect Feature :
Totally Enclosed
AC Voltage :
208-230 / 240 V
Efficiency :
IE 1
Product Name :
Thermal Protection Single Phase Ac Motor for Air Purifier
Voltage :
220v
Speed :
1200RPM
Protection class :
IP21
Insulation :
B
Capacitor :
10uF
Output power :
40W
Winding :
Cooper Wire
Rotation :
CW-LE
Port :
SHANGHAI
Description
Thermal Protection Single Phase AC Motor for Air Purifier / Heat Pump Fan Motor for HVAC System

Product Feature of Heat Pump Fan Motor:

1. Steel housing, designed for cooling system, evaporative cooler etc, suit for hot weather environments.

2. High quality winding with excellent insulation and heat transmission properties.
3. Nice appearance, high starting torque, low starting current, smooth turning, low temperature rise, low vibration, low noise and great overload performance.
4. Saving Energy, higher efficiency.
5. Long life, Equipped with overheating protection, good Protection against Humidity.

Technical Parameters of Heat Pump Fan Motor:

Rated Voltage 110/115/127/140V/208V/220/230V/380V/440V
Output Power 40W
Speed R. P. M 500-2600r/min
Frequency 50/60HZ
Protection Class IP21
Insulation Class BF
Type Asynchronous air conditioner fan motor
Efficiency IE1, IE2, IE3, IE4
Input Power 10-1500W
Insulation Class E, B, F
Phase Single-phase
current 0.2A-2A
Poles 2/4/6/8/10
air conditioner fan motor Air Conditioning
Use Fan Motor for Air Conditioner, air cooler, cleaner,Fan Coil Unit and Other HVAC Systems
Certification CCC, CE, RoHS, UL, VDE

About us

Changzhou Changpeng Motor Co., Ltd. is an ac motor manufacture. We not only can produce high quality goods, but also have good relationship with all our customers.

For us, we not only business partner, as a matter of fact,we are family. Therefore, welcome all of you back home! We are expecting you!

Our Service of Heat Pump Fan Motor:

● Online service: we can talk on Trade manger , Email, Phone, Wechat and so on.
● Customer service: we accept OEM,with your own design, brand and label.
● Sample service:we will send samples for free, if you decide to buy our product
● Presale service: We will try our best to answer you every question in time.

● In-sale service: We will produce the goods with high quality; and pack carefully. We will also keep contact with you when the goods are ready for delivery until it reached safely.

● After-sale service:If you have any question, please contact us at any time

Thermal Protection Single Phase Ac Motor for Air Purifier / Heat Pump Fan Motor for HVAC System

WHY CHOOSE US
1. Silicon lamination--Wuhan 800
2. Rotor die-casting and balancing
3. Winding and inserting – both manual and semi-automatically
4. Machining shaft, housing, end shields, etc…
5. Motor assembly
6. Inspecting spare parts every processing

7. 100% test after each process and final test before packing

8. Competitive price and quality from our own factory

9. Best service with 24 hour’s reply

10.100% Copper Wire

11. Welcome OEM/ODM

12. Long life bearing, and lowest dB level

Packing and Delivery of Heat Pump Fan Motor:

All our goods will be delivered 1 month after receiving your payment. The goods will be packed in a container, which one container including 5000pcs.We will inform you before we send out the product.

FAQ of Heat Pump Fan Motor:

Q1. What is your MOQ?

A: 500sets of heat pump fan motor.

Q2. What kind of bearing?

A: Ball/Sliding bearing of heat pump fan motor.

Q3. When is your delivery time?

A: 30days after receiving the prepayment.

Q4. What is your package?

A: 1set/carton 5000sets/container.

Q5. What is your payment /trade term?

A: T/T,FOB of heat pump fan motor.
