Single Phase 4 Poles Air Conditioner Motor Air Cooler Fan Motor
Single Phase 4 Poles Air Conditioner Motor Air Cooler Fan Motor
Single Phase 4 Poles Air Conditioner Motor Air Cooler Fan Motor
Single Phase 4 Poles Air Conditioner Motor Air Cooler Fan Motor
Single Phase 4 Poles Air Conditioner Motor Air Cooler Fan Motor
Single Phase 4 Poles Air Conditioner Motor Air Cooler Fan Motor
Single Phase 4 Poles Air Conditioner Motor Air Cooler Fan Motor
Single Phase 4 Poles Air Conditioner Motor Air Cooler Fan Motor
Single Phase 4 Poles Air Conditioner Motor Air Cooler Fan Motor
Single Phase 4 Poles Air Conditioner Motor Air Cooler Fan Motor
Specifications
Brand Name :
CPMDJ
Model Number :
YDK139-200-4
Certification :
CCC
Place of Origin :
Made in China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
TT, LC
Supply Ability :
10000000
Delivery Time :
15-35 days
Packaging Details :
Foam+Carton
Product name :
Single Phase 4 Poles Air Conditioner Motor Air Cooler Fan Motor
Model :
YDK139-200-4
Voltage :
220V
Waterproof :
IP21
Insulation :
B
Material :
Cooper wire
Type :
Asynchronous Motor,Induction Motor
Frequency :
50/60Hz
Ac voltage :
208-230 / 240 V,Can be customized
Application :
refrigerator/fan,fan motor for air cooler( air cooler )
Description

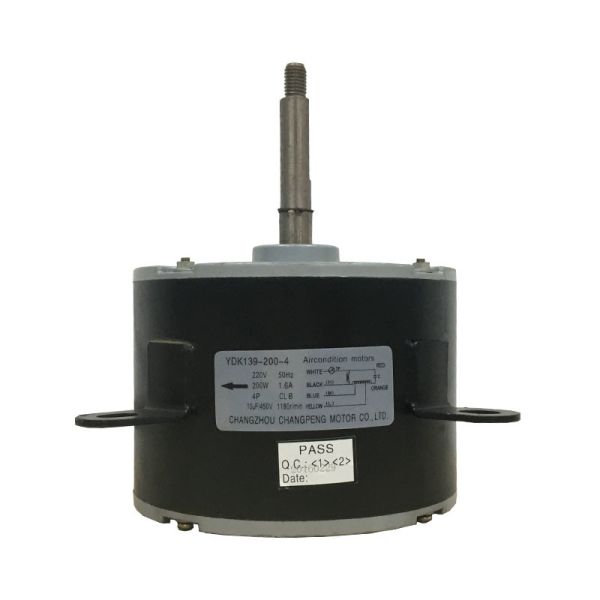

Single Phase 4 Poles Air Conditioner Motor Air Cooler Fan Motor

YDK series motor confirm to CCC standard ,with high efficiency ,good proformance,energy saving , lowest noise, big air flow, waterproof , anticorrosion ,long service time .

Output power : 200W

Direction of rotation : CW or CCW

Bearing : Ball bearing

Rotation :300—1200 r/min

Speed : 1 , 2 , 3 speeds

Voltage: 110-120V/60Hz , 220-240V/50hz

Specifications of Air Cooler Fan Motor:

1) Material: Class B
2) Protection class: IP21(waterproof)
3) Rated Speed:1180rpm
4) Certification :CCC
5) Flange:80*80mm
With professional dipping process, 33 seconds dipping and a set of motors for 5 minutes

Single Phase 4 Poles Air Conditioner Motor Air Cooler Fan Motor

Single Phase 4 Poles Air Conditioner Motor Air Cooler Fan Motor

Category of Air Cooler Fan Motor

Model Voltage Frequency Output speed Capacitor
YDK139-150-6 220 50 150 930 10
YDK139-200-4 220 50 200 1180 10
YDK139-350-4 220 50 350 930 12
YSK139-350-4 220 50 350 1200 10
YDK139-100-10 220 50 100 520 6
YDK139-150-4 220 50 100 1100 6

The above mentioned specification is representative specification,The specification can also be designed and manufactured
according to customers requirement.
The products of 100-120V,200-240V,60Hz can also be supplied as requested.
We will not give special notice on changes,please contact our technical department for further information.

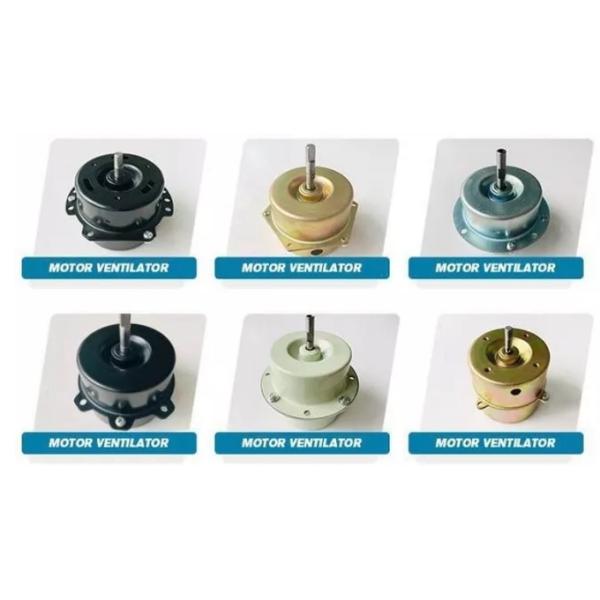

More Choices of Air Cooler Fan Motor:

Single Phase 4 Poles Air Conditioner Motor Air Cooler Fan Motor

The fan motor is one of the most important components of your air conditioning system. Often referred to as the “heart” of HVAC equipment, fan motors work hard and under tough conditions for years. While fan motors don’t need much, overlooking maintenance can have a serious impact on your air conditioning system and the comfort of your home.

Our Service

● Online service: we can talk on Trade manger , Email, Phone, Wechat and so on.
● Customer service: we accept OEM,with your own design, brand and label.
● Sample service:we will send samples for free, if you decide to buy our product
● Presale service: We will try our best to answer you every question in time.

● In-sale service: We will produce the goods with high quality; and pack carefully. We will also keep contact with you when the goods are ready for delivery until it reached safely.

● After-sale service:If you have any question, please contact us at any time

Also we can offer OEM/ODM service.

Single Phase 4 Poles Air Conditioner Motor Air Cooler Fan Motor

FAQ of Air Cooler Fan Motor

Q1. What is your MOQ?

A: 500sets of air cooler fan motor.

Q2. What kind of bearing?

A:Ball/Sliding bearing of air cooler fan motor.

Q3. When is your delivery time?

A: 30days after receiving the prepayment.

Q4. What is your package?

A: 1set/carton 5000sets/container.

Q5. What is your payment /trade term?

A: T/T,FOB of air cooler fan motor.
