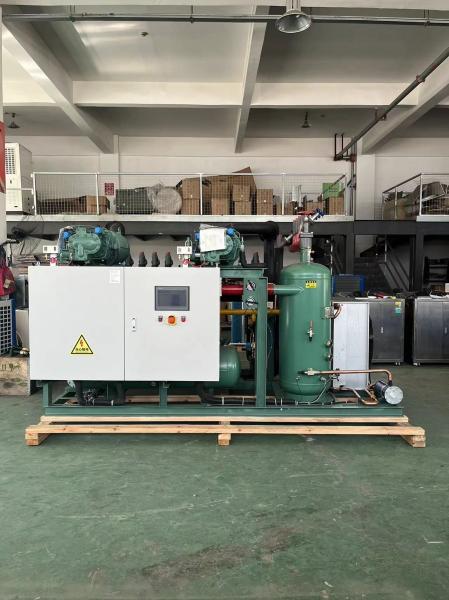

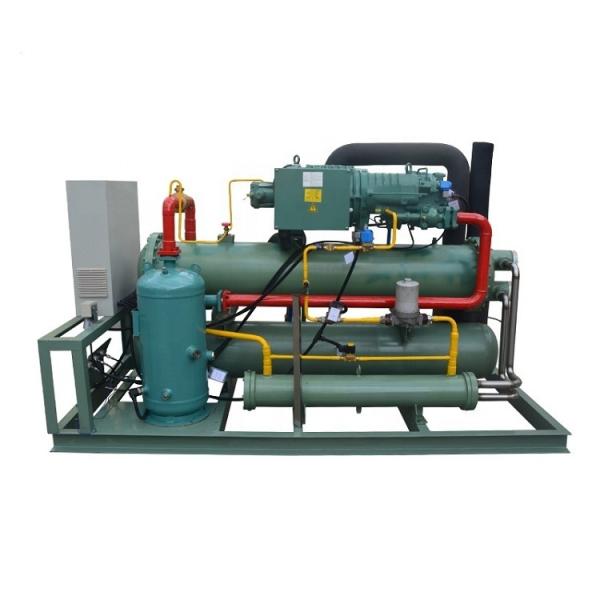

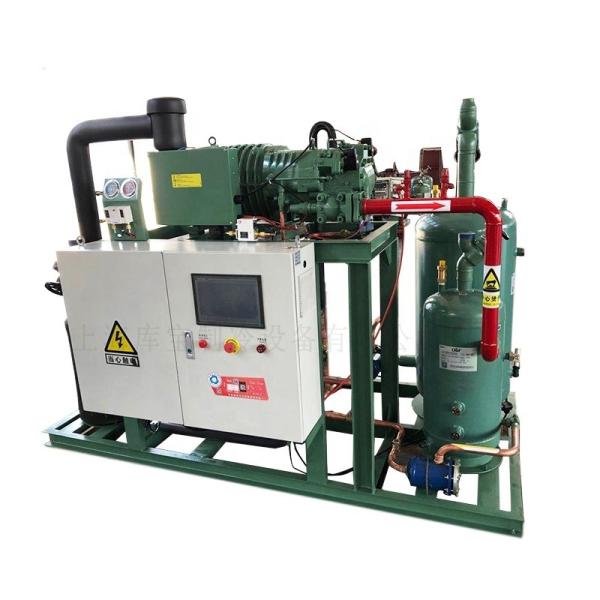

KBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw Compressor
KBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw Compressor
KBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw Compressor
KBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw Compressor
KBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw Compressor
KBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw Compressor
KBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw Compressor
KBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw Compressor
KBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw Compressor
KBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw Compressor
KBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw Compressor
KBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw Compressor
Specifications
place of origin :
Shanghai, China
model number :
KBD1-125
voltage :
380V
dimension(l*w*h) :
Customizable
warranty :
1 Year
key selling points :
Easy to Operate, Competitive Price, Long Service Life, Energy saving, Famous brand PLC, Low Maintenance Cost, Accurate temperature control
Compressor brand :
international brand
Cooling Capacity :
low temperature
video outgoing-inspection :
Provided
core components :
Compressor
Refrigerant :
R507, R22, R-404A, R404A/R22
Temperature :
0 to-35
Weight (KG) :
5000
Compressor type :
Screw, Screw
After-sales Service Provided :
Online support
Compressor :
screw compressor
Product name :
cold room condensing unit
Voltage :
380V 50HZ
Application :
Quick-freezing
Horse power :
125HP
Key words :
refrigeration unit
Usage :
Refrigeration Freezer Cold Room
Price :
$22,100/sets 1-9 sets
Description

KBD1-125 Cold Room Refrigeration Unit Cool Room Condensing Unit HSN8571-125 Screw Compressor Condensing Unit Prices

Condensing Unit configuration list

screw compressor KUB brand Air cooled condensing unit module
KBD1-125
Number Name Specification model or image Quantity unit

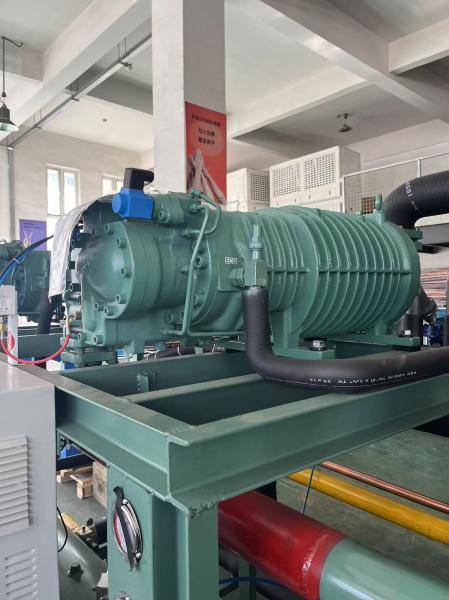

1.1 semi hermetic screw compressor HSN8571-125 1 piece
1.2 Exhaust valve 3-1/8 1 piece
1.3 Dual pressure control KP15 1 piece
1.4 CEOjoint valve 1 piece
1.5 suction valve DN65 1 piece
2.1 exhaust header DN65 1 set
2.2 High pressure meter 0-3.6Mpa 1 piece
2.3 Steel angle valve F-T1 1 piece
2.4 Steel seat 1/4 1 piece
2.5 safety valve 3/8 NPT 1 piece
2.6 safety valve ball valve 3/8 NPT 1 piece
2.7 hand valve 1/4 2 piece
2.8 High voltage sensor 1 piece
2.10 Exhaust stop check valve DN65 1 piece
3.1 Horizontal reservoir 200L 1 piece
3.2 Liquid supply pipe DN40 1 Set
3.3 Dry filter barrel 9613G steel interface 1 piece
3.4 Liquid supply solenoid valve 1-5/8"with coil 1 piece
3.5 filter element D48 2 piece
3.6 Economizer main in and out 1-5/8,branch in and out 1-1/8” 1 piece
3.7 Economizer Ball Valve 5/8" 1 piece
3.8 Economizer filter KUB165S 5/8" 1 piece
3.9 Economizer Solenoid Valve SV78-5 5/8"with coil 1 piece
3.10 Economizer Expansion Valve TGE5(5/8"X7/8") 1 piece
3.11 Economizer check valve XFV-18 1 -1/8
3.12 Liquid line stop valve DN40 2 piece
4.1 Return trachea DN100 1 set
4.2 Suction Gas-liquid separator DN100 Gas-liquid separator 1 set
4.3 Suction filter barrel 10034G steel interface 1 piece
4.4 Suction filter element FRE-100 1 piece
4.5 Suction filter element 1 FRE-100W 1 piece
4.6 Low pressure pressure sensor PP11 1 piece
4.7 Steel angle valve F-T1 1 piece
4.8 Steel seat 1/4 1 piece
4.9 Low pressure meter 0-1.6Mpa 1 piece
4.10 Shut-off valve DN100 1 piece
5.1 oil tubing 1-3/8" 1 piece
5.2 External oil separator CXYF180L 1 piece
5.3 Coarse oil filtration 9611 copper interface 1 piece
5.4 filter element OLX-48W 1 piece
5.5 oil flow switch 1 piece
5.6 Air-cooled oil-cooled FNH49 1 set
5.7 Bypass Solenoid Valve 1-3/8" with coil 1 piece
5.8 oil sight glass 1 piece
5.9 oil valve XFP-27207 7/8" 2 piece
1-3/8" 1 piece

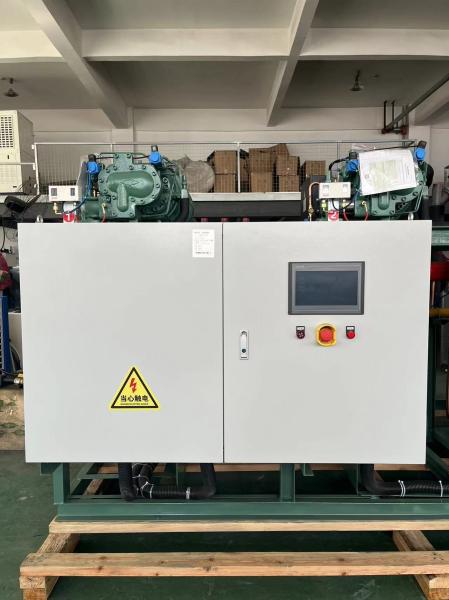

Electric control box Chint air switch, Schneider contactor, PLC, Kunlun on-state touch screen 1
Unit model compressor model compressor quantity Condensing temperature
(℃)		 Evaporation temperature(℃)
-45 -40 -35 -30
Cooling capacity/input power(KW)
KBD1-50 HSN6461-50 1 35 26.7 27.3 34.6 28.5 43.7 29.6 54.1 30.8
40 25.5 30.2 33.3 31.5 42.3 32.8 52.5 34
45 24 33.4 31.7 34.9 40.5 36.3 50.6 37.6
KBD1-60 HSN7451-60 1 35 31.4 33.6 41.2 34.8 52.7 36 65.9 37.3
40 29.8 37.8 39.5 39 50.7 40.3 63.6 41.7
45 27.9 42 37.4 43.5 48.4 45 61 46.6
KBD1-75 HSN7471-75 1 35 40.1 39.8 51.8 41.5 65.3 43.1 80.8 44.8
40 38.3 44.1 49.8 45.9 63.1 47.6 78.3 49.4
45 36.1 48.8 47.4 50.8 60.4 52.7 75.3 54.5
KBD1-125 HSN8571-125 1 35 69.3 61.4 88.5 64.7 110.7 67.9 136.3 71.1
40 65.7 66.9 84.7 70.9 106.6 74.6 131.9 78.3
45 61.4 72.9 80.2 77.8 101.8 82.3 126.6 86.5
KBD-160 HSN8591-160 1 35 86.4 84.1 111 88.1 139 91.7 172.3 95.3
40 82.7 92.7 106.9 97.3 134.8 101.5 167.5 105.4
45 78.2 101.9 102 107.4 129.5 112.3 161.2

116.8
Unit model Reservoir(L) Liquid supply pipe
interface		 Suction pipe
interface		 exhaust pipe
interface		 Liquid return pipe
interface		 Dimensions(mm)
KBD1-50 80 Φ28 Φ54 Φ42 Φ28 1750×1250×1640
KBD1-60 100 Φ35 Φ76 Φ54 Φ35 1750×1250×1640
KBD1-75 120 Φ35 Φ76 Φ54 Φ35 1750×1250×1640
KBD1-125 200 Φ42 Φ108 Φ76 Φ42 2150×1400×1870
KBD1-160 250 Φ42 Φ108 Φ76 Φ42 2150×1400×1870
Company Information
KBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw CompressorKBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw CompressorKBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw CompressorKBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw CompressorKBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw Compressor
KBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw CompressorKBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw CompressorKBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw Compressor
KBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw CompressorKBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw Compressor
KBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw CompressorKBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw CompressorKBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw CompressorKBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw Compressor

KBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw Compressor

KBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw Compressor

FAQ

KBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw Compressor

Q1: Are you a manufacturer or trading company?

A1:This compressor we are agent , But we are factories that produce condensing units, chillers,Evaporator.

Q2: What about the shipping methods?

A2: By express/By air/By sea.

Q3: What about the payment methods &payment terms

A3: We accept T/T ,Paypal, Western Union, Cash and etc.After 30% deposit,and 70%balance before the shipment.

Q4: What's your delivery time?Where is the loading port?

A4: Usually within 35-60 days after receiving the payment. Loading port:Shanghai,other place in china according your requirement.

Q5:Can I have a sample first ?

A5:You have to pay sample cost.

Q6: How do you ship the goods and how long does it take arrive?

A6: We usually ship goods by LCL or FCL by sea, by air or express delivery. Usually it takes 30 days by sea, 5-7 days by air or express delivery.

The delivery time is according to the way of shipping.

Packaging & Shipping

KBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw CompressorKBD1-125 Cold Room Refrigeration Unit with HSN8571-125 Screw Compressor

A. Individuation & Customization

Refrigeration industry, cold storage engineering;

Agriculture,food, restaurant, chemical industry; we can undertake designs according to customer's requirements.

B. Excellent warranty

KUB provides up to one year warranty period.

If there is any product quality problems, we will return processing, and is responsible in the end.

We provide excellent service to solve your worries.
