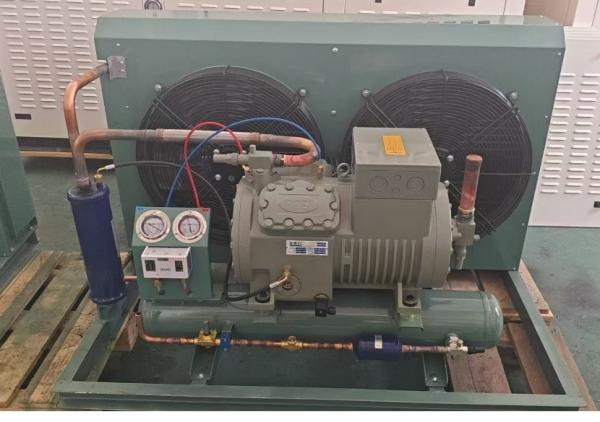

5HP Refrigeration Condensing Unit with DMZL Compressor Model FUBZ-005/L
5HP Refrigeration Condensing Unit with DMZL Compressor Model FUBZ-005/L
5HP Refrigeration Condensing Unit with DMZL Compressor Model FUBZ-005/L
5HP Refrigeration Condensing Unit with DMZL Compressor Model FUBZ-005/L
5HP Refrigeration Condensing Unit with DMZL Compressor Model FUBZ-005/L
5HP Refrigeration Condensing Unit with DMZL Compressor Model FUBZ-005/L
5HP Refrigeration Condensing Unit with DMZL Compressor Model FUBZ-005/L
5HP Refrigeration Condensing Unit with DMZL Compressor Model FUBZ-005/L
5HP Refrigeration Condensing Unit with DMZL Compressor Model FUBZ-005/L
5HP Refrigeration Condensing Unit with DMZL Compressor Model FUBZ-005/L
5HP Refrigeration Condensing Unit with DMZL Compressor Model FUBZ-005/L
5HP Refrigeration Condensing Unit with DMZL Compressor Model FUBZ-005/L
Specifications
place of origin :
Shanghai, China
model number :
FUBZ-005/L
voltage :
380V 50HZ
dimension(l*w*h) :
Customizable
warranty :
1 Year
key selling points :
Competitive Price, Easy to Operate, Long Service Life, Energy saving, Low Maintenance Cost
Compressor brand :
DMZL
Cooling Capacity :
low temperature
video outgoing-inspection :
Provided
core components :
compressor
Refrigerant :
R404, R22/R404A
Temperature :
0 to -35
Weight (KG) :
240
Compressor type :
semi-hermetic, Semi-hermetic Piston Compressors
Certification :
CE
After-sales Service Provided :
Online support
Product name :
Air Cooled Refrigeration Condensing Unit
Application :
Cold Storage Room Freezer Room
Compressor :
Oil-less
Voltage :
380V/3Ph/50Hz
Horse power :
5HP
Condenser type :
Air Cooler Condenser
Price :
$1,250/sets 1-4 sets
Description

FUBZ-005/L DMZL Compressor Model 4YD-5.2 5HP Refrigeration Condenser Unit 5HP Compressor Condensing Unit for Sale

Descrition

a, Compact structure and good apperance;

b, Scientific design with steady air flow;

c, Convenient design for maintain---front board can be easily taken down;

d, Rational performance design of high energy efficiency;

Parts
Refrigeration unit configuration list
FUBZ-005/L
Model Quantity
Compressor 4YD-5.2 1
Oil separator KUB-55855 1
shock absorber tube φ16
Box sheet metal 1
Air cooler condenser 55m² 1
Fan motor 1
Reservoir 6L 1
Filter drier 164S 1
Solenoid valve SV68-4,12mm 1
Pressure controller P830E 1
Oil gauge 2
Junction box 1

Features:

1, Compact structure, strong and durable

2, Uses high efficiency air-cooled condenser and realizes high heat exchange; Low power consumption

3, Uses R22, R134A, R404A and R507A as refrigerant

4, Used in medium, low and super low working condition

5, Widely used in foods, chemical, pharmaceutical, display cases, supermarket and industrial refrigeration

6, Easy operation: Design of unit almost considers installation of users, site installation only needs simple works and machine can be put in operation

7, Engineering practice conditions, design and assemble all types air-cooled condensing unit

8, Warranty period: 1 year

9. Semi-hermetic compressor / air cooled condensor. U Type condensing unit


Characteristics:

1.Condensing unit for medium & high temperature (environment +12oC~ -10 oC)

2.Condensing unit for low temperature & frozen environment (-10 oC ~ -30 oC)

3.Equipped with semi-hermetic piston compressor

4.Air cooled condensers are punched by high velocity ram machine. Folded by secondary operation :condenser coils are expanded by mechanical tube expansion to obtain high heat exchanging capacity.

5.Equipped with well-known brand of refrigeration parts:

1)Normal configuration: filter drier, solenoid valve, double pressure controller, high & low pressure meter.

2)Standard configuration :vibration absorber, oil separator, filter drier, sight glass. solenoid valve, double pressure controller, high & low pressure meter.

6.We offer additional parts to meet your special requests.

Other components:

Receiver, solenoid valve, dry filter, sight glass, higher pressure meter, low pressure meter, pressure controller, unit frame

Optional components:

Shock absorber, oil separator, gas liquid separator

If you need any further information, please feel free to contact us.

We offer customize service, OEM welcomed!

Company Information
5HP Refrigeration Condensing Unit with DMZL Compressor Model FUBZ-005/L

5HP Refrigeration Condensing Unit with DMZL Compressor Model FUBZ-005/L

5HP Refrigeration Condensing Unit with DMZL Compressor Model FUBZ-005/L

FAQ

5HP Refrigeration Condensing Unit with DMZL Compressor Model FUBZ-005/L

Q1: Are you a manufacturer or trading company?

A1:This compressor we are agent , But we are factories that produce condensing units, chillers,Evaporator.

Q2: What about the shipping methods?

A2: By express/By air/By sea.

Q3: What about the payment methods &payment terms

A3: We accept T/T ,Paypal, Western Union, Cash and etc.After 30% deposit,and 70%balance before the shipment.

Q4: What's your delivery time?Where is the loading port?

A4: Usually within 35-60 days after receiving the payment. Loading port:Shanghai,other place in china according your requirement.

Q5:Can I have a sample first ?

A5:You have to pay sample cost.

Q6: How do you ship the goods and how long does it take arrive?

A6: We usually ship goods by LCL or FCL by sea, by air or express delivery. Usually it takes 30 days by sea, 5-7 days by air or express delivery.

The delivery time is according to the way of shipping.

Packaging & Shipping

5HP Refrigeration Condensing Unit with DMZL Compressor Model FUBZ-005/L5HP Refrigeration Condensing Unit with DMZL Compressor Model FUBZ-005/L

A. Individuation & Customization

Refrigeration industry, cold storage engineering;

Agriculture,food, restaurant, chemical industry; we can undertake designs according to customer's requirements.

B. Excellent warranty

KUB provides up to one year warranty period.

If there is any product quality problems, we will return processing, and is responsible in the end.

We provide excellent service to solve your worries.
