1.1L PVE Oil 3.5HP Scroll Cold Storage Compressor AC Power
1.1L PVE Oil 3.5HP Scroll Cold Storage Compressor AC Power
1.1L PVE Oil 3.5HP Scroll Cold Storage Compressor AC Power
1.1L PVE Oil 3.5HP Scroll Cold Storage Compressor AC Power
Specifications
Brand Name :
Maneurop
Model Number :
MLZ026
Certification :
CE
Place of Origin :
Shanghai, China
MOQ :
1
Price :
Consult
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Year
Delivery Time :
20days
Packaging Details :
Pallet packaging
Power :
3.5HP
Weight [kg :
2
Oil type :
PVE
Oil charge: :
1.1L
Power Source: :
AC
Displacement [m3/h :
2
Warranty :
1 Year
Description

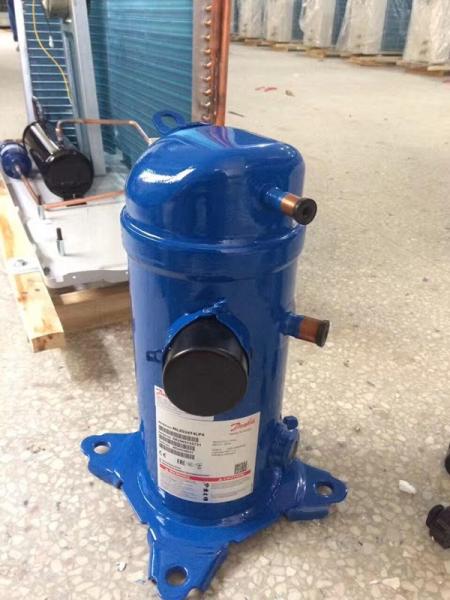

France famous brand 3.5HP Maneurop Scroll Compressor Model MLZ026

MLZ026T4A. Cooling capacity [kW]
Tc/Te -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0
10.0 4.034 4.984 6.144 7.538 9.185 　 　 　 　
15.0 3.800 4.710 5.815 7.138 8.700 10.52 　 　 　
20.0 3.575 4.443 5.493 6.744 8.218 9.939 11.93 　 　
25.0 3.356 4.183 5.174 6.353 7.739 9.356 11.22 13.37 　
30.0 3.142 3.925 4.858 5.962 7.260 8.772 10.52 12.53 14.81
35.0 2.930 3.669 4.542 5.571 6.778 8.184 9.811 11.68 13.82
40.0 　 3.411 4.223 5.176 6.291 7.591 9.095 10.83 12.81
45.0 　 3.150 3.900 4.776 5.798 6.989 8.370 9.964 11.79
50.0 　 　 3.570 4.367 5.295 6.377 7.634 9.087 10.76
55.0 　 　 　 3.948 4.781 5.752 6.883 8.196 9.711
60.0 　 　 　 　 4.254 5.113 6.117 7.287 8.645

MLZ026T4A. Power consumption [kW]
Tc/Te -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0
10.0 1.231 1.249 1.265 1.279 1.292 　 　 　 　
15.0 1.386 1.405 1.423 1.438 1.451 1.463 　 　 　
20.0 1.559 1.580 1.598 1.614 1.627 1.639 1.650 　 　
25.0 1.756 1.778 1.796 1.811 1.824 1.835 1.844 1.852 　
30.0 1.981 2.002 2.020 2.034 2.046 2.055 2.062 2.067 2.071
35.0 2.237 2.257 2.274 2.287 2.296 2.303 2.307 2.309 2.31
40.0 　 2.548 2.563 2.573 2.580 2.584 2.585 2.583 2.579
45.0 　 2.879 2.891 2.898 2.902 2.902 2.899 2.893 2.884
50.0 　 　 3.262 3.266 3.265 3.261 3.253 3.242 3.228
55.0 　 　 　 3.680 3.675 3.665 3.652 3.635 3.615
60.0 　 　 　 　 4.135 4.120 4.100 4.077 4.05

MLZ026T4A. Heating capacity [kW]
Tc/Te -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0
10.0 5.231 6.205 7.389 8.813 10.48 　 　 　 　
15.0 5.107 6.049 7.177 8.519 10.11 11.99 　 　 　
20.0 5.011 5.923 6.999 8.264 9.754 11.52 13.58 　 　
25.0 4.940 5.826 6.853 8.046 9.437 11.07 13.00 15.22 　
30.0 4.892 5.755 6.738 7.863 9.160 10.67 12.44 14.55 16.88
35.0 4.863 5.709 6.651 7.713 8.922 10.31 11.94 13.86 16.13
40.0 　 5.683 6.589 7.594 8.722 10.01 11.49 13.23 15.32
45.0 　 5.676 6.551 7.503 8.557 9.741 11.09 12.67 14.54
50.0 　 　 6.532 7.437 8.424 9.519 10.75 12.17 13.85
55.0 　 　 　 7.397 8.325 9.341 10.47 11.76 13.26
60.0 　 　 　 　 8.264 9.213 10.22 11.36 12.7

MLZ026T4A. Current [A]
Tc/Te -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0
10.0 3.842 3.729 3.621 3.520 3.426 　 　 　 　
15.0 3.829 3.756 3.687 3.624 3.568 3.521 　 　 　
20.0 3.866 3.825 3.787 3.754 3.728 3.711 3.704 　 　
25.0 3.963 3.946 3.932 3.922 3.918 3.923 3.937 3.961 　
30.0 4.133 4.132 4.133 4.138 4.149 4.168 4.195 4.233 4.283
35.0 4.388 4.395 4.403 4.416 4.433 4.458 4.490 4.533 4.588
40.0 　 4.745 4.754 4.765 4.782 4.804 4.835 4.875 4.926
45.0 　 5.196 5.196 5.199 5.206 5.219 5.239 5.269 5.309
50.0 　 　 5.742 5.728 5.718 5.714 5.716 5.727 5.748
55.0 　 　 　 6.365 6.330 6.300 6.276 6.261 6.255
60.0 　 　 　 　 7.053 6.990 6.932 6.882 6.841

MLZ026T4A. Mass flow [kg/h]
Tc/Te -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0
10.0 3.28 3.99 4.86 5.89 7.11 　 　 　 　
15.0 2.74 3.35 4.09 4.96 5.99 7.19 　 　 　
20.0 2.29 2.81 3.44 4.18 5.05 6.06 7.23 　 　
25.0 1.91 2.35 2.88 3.51 4.24 5.10 6.09 7.22 　
30.0 1.59 1.96 2.41 2.93 3.55 4.27 5.10 6.06 7.15
35.0 1.31 1.63 2.00 2.44 2.95 3.55 4.25 5.06 5.98
40.0 　 1.34 1.65 2.01 2.44 2.94 3.52 4.19 4.97
45.0 　 1.09 1.35 1.65 2.00 2.41 2.89 3.45 4.09
50.0 　 　 1.09 1.34 1.62 1.96 2.35 2.80 3.33
55.0 　 　 　 1.07 1.30 1.57 1.89 2.25 2.69
60.0 　 　 　 　 1.03 1.24 1.49 1.79 2.14

MLZ026T4A. Mass flow [kg/h]
Tc/Te -30.0 -250 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0
10.0 81.34 100.8 125.0 154.3 189.3 　 　 　 　
15.0 79.86 99.42 123.4 152.4 187.1 228.2 　 　 　
20.0 78.52 98.05 121.8 150.6 184.9 225.6 273.6 　 　
25.0 77.28 96.77 120.4 148.8 182.7 223.0 270.5 326.5 　
30.0 76.11 95.56 119.0 147.1 180.6 220.3 267.4 322.8 388.4
35.0 74.98 94.38 117.6 145.3 178.4 217.6 264.2 319.3 384.5
40.0 　 93.22 116.2 143.5 176.1 214.9 260.9 315.6 380.6
45.0 　 92.03 114.8 141.7 173.8 212.0 257.5 311.9 376.7
50.0 　 　 113.3 139.8 171.4 209.1 254.2 308.3 373.3
55.0 　 　 　 138.0 169.1 206.4 251.2 305.2 370.6
60.0 　 　 　 　 167.3 204.3 249.0 303.5 370.1

Te = Evaporating temperature [°C]

Tc = Condensing temperature [°C]
