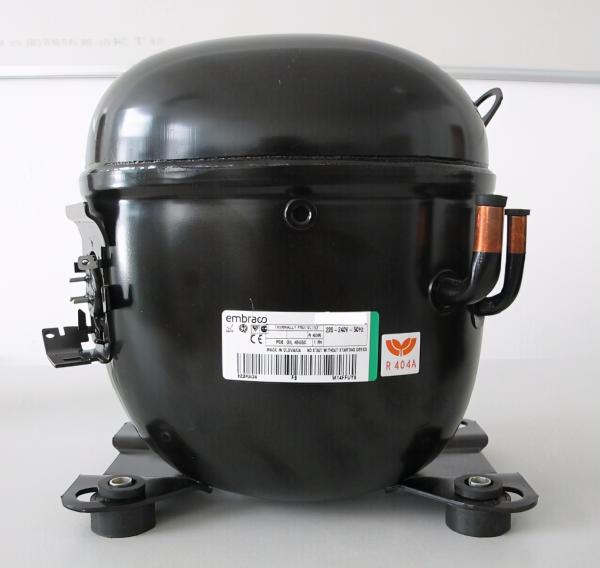

1HP R404A Cold Storage Compressor 220-240V 50Hz
1HP R404A Cold Storage Compressor 220-240V 50Hz
Specifications
Brand Name :
Embraco
Model Number :
NT2178GK
Certification :
CE
Place of Origin :
Shanghai, China
MOQ :
1
Price :
Consult
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Year
Delivery Time :
20days
Packaging Details :
Pallet packaging
Voltage :
220-240V/50Hz
Refrigerant: :
R404A
After-sales Service Provided: :
Online support
Packing :
Wooden Case
Description

Rated Points

Condensing Temperature Evaporating Temperature Cooling Capacity Power Consumption Current Gas Flow Rate Efficiency
54.40°C -23.30°C 804 W 564 W 2.56 A 18.61 kg/h 1.43 W/W

Test Condition: ASHRAELBP32, Fan/NotControled/220, Return Gas 32.2°C, Evaporation -23.30°C, Condensing 54.40°C, Ambient 32.2°C , Liquid 32.2°C, Subcooling 22.2K. Data in accordance to EN
12900:2013 and AHRI 540:2015 polynomial equation and uncertainty guidance.

Performance Curve Data
Condensing Temperature 35°C

Evaporating
Temperature °C		 Cooling
Capacity W		 Power W Current A Gas Flow
Rate kg/h		 Efficiency
W/W
-40 355 355 1.67 8.15 1
-35 501 411 1.89 11.53 1.22
-30 675 466 2.12 15.58 1.45
-25 876 520 2.37 20.30 1.68
-20 1103 574 2.62 25.71 1.92
-15 1357 627 2.89 31.81 2.16
-10 1636 679 3.17 38.61 2.41

Test Condition: ASHRAELBP32, Fan/NotControled/220, Return Gas 32.2°C, Ambient 32.2°C , Liquid 32.2°C. Data in accordance to EN 12900:2013 and AHRI 540:2015 polynomial equation and uncertainty guidance.


Condensing Temperature 45°C

Evaporating
Temperature °C		 Cooling
Capacity W		 Power W Current A Gas Flow
Rate kg/h		 Efficiency
W/W
-35 440 400 1.86 10.10 1.1
-30 609 465 2.13 14.03 1.31
-25 806 531 2.41 18.65 1.52
-20 1032 599 2.71 23.99 1.72
-15 1285 667 3.02 30.06 1.93
-10 1564 736 3.35 36.85 2.12

Test Condition: ASHRAELBP32, Fan/NotControled/220, Return Gas 32.2°C, Ambient 32.2°C , Liquid 32.2°C. Data in accordance to EN 12900:2013 and AHRI 540:2015 polynomial equation and uncertainty guidance.

Condensing Temperature 55°C

Evaporating
Temperature °C		 Cooling
Capacity W		 Power W Current A Gas Flow
Rate kg/h		 Efficiency
W/W
-30 539 462 2.13 12.39 1.17
-25 731 537 2.45 16.87 1.36
-20 952 615 2.79 22.09 1.55
-15 1202 695 3.15 28.07 1.73
-10 1480 779 3.52 34.80 1.9

Test Condition: ASHRAELBP32, Fan/NotControled/220, Return Gas 32.2°C, Ambient 32.2°C , Liquid 32.2°C. Data in accordance to EN 12900:2013 and AHRI 540:2015 polynomial equation and uncertainty guidance.

External Dimensions

1HP R404A Cold Storage Compressor 220-240V 50Hz

1HP R404A Cold Storage Compressor 220-240V 50Hz
