Microcomputer intelligent digital display automatic temperature controller 220V STC-8080AX-01
Microcomputer intelligent digital display automatic temperature controller 220V STC-8080AX-01
Microcomputer intelligent digital display automatic temperature controller 220V STC-8080AX-01
Microcomputer intelligent digital display automatic temperature controller 220V STC-8080AX-01
Microcomputer intelligent digital display automatic temperature controller 220V STC-8080AX-01
Microcomputer intelligent digital display automatic temperature controller 220V STC-8080AX-01
Microcomputer intelligent digital display automatic temperature controller 220V STC-8080AX-01
Microcomputer intelligent digital display automatic temperature controller 220V STC-8080AX-01
Microcomputer intelligent digital display automatic temperature controller 220V STC-8080AX-01
Microcomputer intelligent digital display automatic temperature controller 220V STC-8080AX-01
Microcomputer intelligent digital display automatic temperature controller 220V STC-8080AX-01
Microcomputer intelligent digital display automatic temperature controller 220V STC-8080AX-01
Microcomputer intelligent digital display automatic temperature controller 220V STC-8080AX-01
Microcomputer intelligent digital display automatic temperature controller 220V STC-8080AX-01
Specifications
Brand Name :
Elitech
Model Number :
STC-8080AX
Certification :
CE
Place of Origin :
Shanghai, China
MOQ :
1days
Price :
Consult
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Year
Delivery Time :
10days
Packaging Details :
Carton
Place of Origin: :
Shanghai, China
Model Number: :
STC8080AX
Temperature: :
-50℃ to 99℃
Product: :
temperature controller
After-sales Service Provided: :
Overseas third-party support available
Condition: :
New
Type: :
Temperature controller
Brand Name: :
Elitech
temperature controller: :
BLACK
Name: :
Elitech temperature controller
Brand: :
Elitech
Certification: C :
CE
Operating Voltage: :
220VAC +10%-15%,50/60HZ
Description

Elitech STC8080AX DIGITAL THERMOSTAT

Refrigeration, automatic defrost timer, manual defrost, defrost function canceled, temperature correction, press delayed three minutes, over-temperature limit and fault alarm, waterproof panel design, should be for a variety of needs refrigeration and defrost management of hypothermia refrigerator, air-cooled freezers, refrigerated console and other equipment
Technical Parameters:

STC-8080AX thermostat heat pump thermostat

General:
STC-8080AX is a universal temperature controller with single sensor, spcify
all the functions as refrigerating,defrosting, alarming when temperature
exceeds setting limit.
Compressor delay protection time is solidified as 3 minutes, controlled
start up and close accoring to the solidified proportional time when sensor
error, which can be applied to the industries such as cold storage, refrigerator car,etc.

Main Functions:
1. To measure, display and control temperature
2. Defrosting cycle and defrosting time is adjustable
3. Alarm when temperature exceeds settling temperature limit value.
4. Compressor start up delay protection
5. Compressor work as scheduled time when sensor error

Specification and Size:
Front panel size: 75mm( length) x 34.5mm (width)
Installing hole size: 71mm( length) x 29mm ( width)
Product size: 71mm (length) x 34.5mm (width) x 85mm (depth)

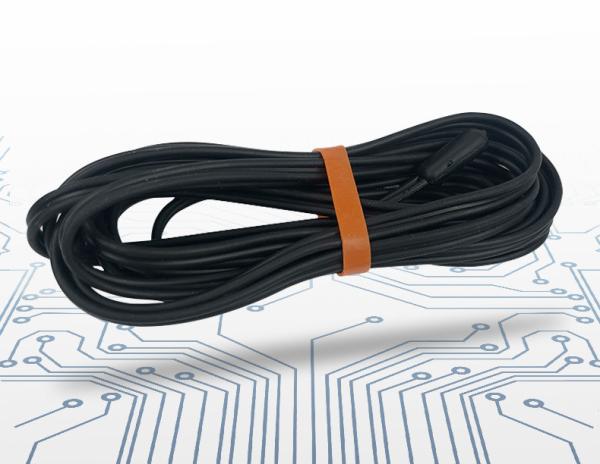

Sensor wire length: 2 meters (including the probe)

Technical Parameters:
Power supply: 220VAC +10%-15%,50/60HZ
Power consumption: ≤3W
Temperature measuring range:-50℃ to 99℃
Temperature controlling range: -40℃ to 50℃
Resolution: 1℃
Accuracy: ±1℃ when tempeature -40℃ to 50℃, ±2℃ at others
Relay capacity of compressor: 7A/220VAC
Relay capacity of defroster: 7A/220VAC
Sensor type: NTC sensor
Front panel safa level: IP64
Operating temperature: 0℃ to 60℃
Relative humidity: 20% to 85% ( No condensate)
Storage temperature :-30℃ to 75℃

thermostat heat pump thermostat

Elitech temperature controller

Good quality and competitive price among the same area.

Powerful production ability, quick delivery!

Stable and reliable through the EMCI industry level 4 test

Microcomputer intelligent digital display automatic temperature controller 220V STC-8080AX-01

High precision sensor
High-precision imported chips that can withstand 3000 high and low temperature shocks
Small drift, more stable performance

Microcomputer intelligent digital display automatic temperature controller 220V STC-8080AX-01

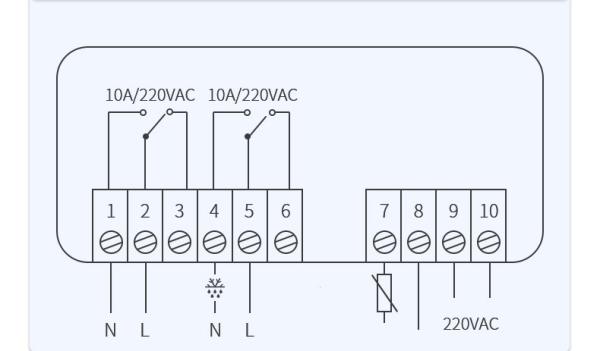

Product parameters and wiring diagrams

STC-8080AX technical parameters and wiring diagram

Measuring range -50°C~+99°C
Temperature control range -45℃~50℃
Measurement accuracy ±1℃
Resolution 1℃
Power supply voltage 220VAC 50/60HZ
Installation size 71*29mm
Working environment temperature 0℃~60℃
Shell material ABS flame retardant plastic

Microcomputer intelligent digital display automatic temperature controller 220V STC-8080AX-01

Microcomputer intelligent digital display automatic temperature controller 220V STC-8080AX-01Microcomputer intelligent digital display automatic temperature controller 220V STC-8080AX-01

Microcomputer intelligent digital display automatic temperature controller 220V STC-8080AX-01

Microcomputer intelligent digital display automatic temperature controller 220V STC-8080AX-01
