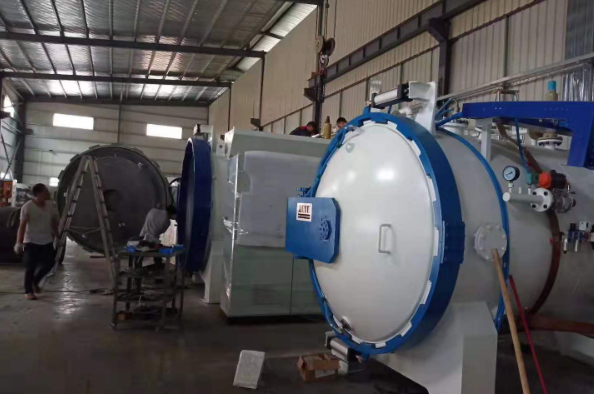

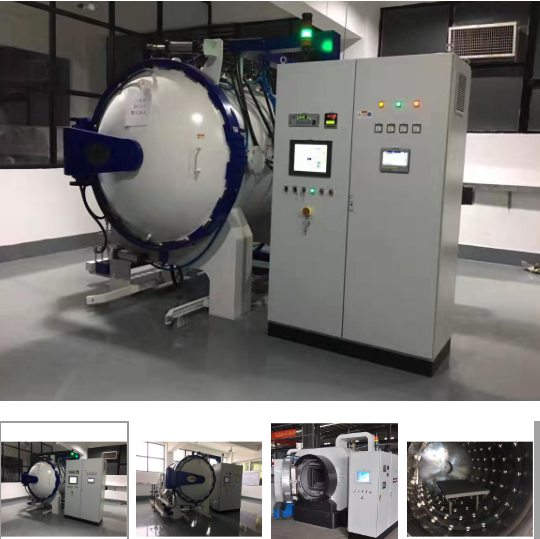

Industrial Furnace Equipment With Multi Process Adaptability For Vacuum Heat Treatment
Industrial Furnace Equipment With Multi Process Adaptability For Vacuum Heat Treatment
Industrial Furnace Equipment With Multi Process Adaptability For Vacuum Heat Treatment
Industrial Furnace Equipment With Multi Process Adaptability For Vacuum Heat Treatment
Industrial Furnace Equipment With Multi Process Adaptability For Vacuum Heat Treatment
Industrial Furnace Equipment With Multi Process Adaptability For Vacuum Heat Treatment
Specifications
Brand Name :
Star Power
Model Number :
380KW
Certification :
CU,ISO
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
100 Set/Sets per Month
Delivery Time :
1 month
Packaging Details :
metal frame with film
System :
PLC
Voltage :
380V/220V Optional
Dimension(L*W*H) :
5000*5000*2000mm
Weight (T) :
9T
Power (kw) :
450kw
Description
The vacuum heat treatment electric furnace equipment has the following significant advantages:
Anti oxidation and decarburization: Heat treatment in a vacuum environment can effectively prevent surface oxidation and decarburization of metal workpieces, maintaining the surface quality and chemical composition stability of the workpieces.
Improving workpiece performance: Accurate temperature control and uniform heating help improve the microstructure of the metal, thereby significantly enhancing the hardness, strength, toughness, and wear resistance of the workpiece.
Reduce deformation: The heating and cooling process of vacuum heat treatment is relatively uniform, which can effectively reduce the thermal deformation of the workpiece and improve the dimensional and shape accuracy.
Clean and environmentally friendly: Processing workpieces in a vacuum environment produces almost no harmful gases or waste residue, making it environmentally friendly.
Can handle special materials: suitable for some special materials that require extremely high surface quality and performance, such as titanium alloys, high-temperature alloys, etc.
Energy saving and efficient: Good insulation and sealing performance reduce heat loss and improve energy utilization efficiency.
Strong controllability: able to accurately control the time and temperature of heating, insulation, and cooling, achieving complex heat treatment processes.
Purification treatment: avoids the mixing of impurities and helps to obtain pure metal structure.
Improving service life: Workpieces that have undergone vacuum heat treatment often have an extended service life, reducing production and maintenance costs.

Allocation list of the furnace body part

order number

Package number / item number

description

 Specifications and models quantity Manufacturer name
1 furnace body 1
2 trolley 1
3 Aluminum silicate fiber cotton STD 1 Shanxi Baojie fire-resistant thermal insulation material
4 heating element 0Cr25Al5 resistance band, internal ceramic string sleeve fixed 1 Shanghai tree green
5 Furnace fan 3.0KW 4
6 Truck with force cycloidal motor 5.5KW 1
7 Went line motor with power of furnace door 3KW 1
8 Electric cabinet control box 1
9 pond 1

  • List of main accessories (wearing parts)
order number ts name quantity place of production
1 SCR-160 Tuning module 4 block
2 WRNK-130 Φ5mm thermocouple Four Zhaoqing, Guangdong
3 AI518E3JO Intelligent digital display power control temperature control table One Xiamen udian
