Deep Throat Press Machine Punching for Prebending Kitchen Sink Press Machine
Deep Throat Press Machine Punching for Prebending Kitchen Sink Press Machine
Deep Throat Press Machine Punching for Prebending Kitchen Sink Press Machine
Deep Throat Press Machine Punching for Prebending Kitchen Sink Press Machine
Deep Throat Press Machine Punching for Prebending Kitchen Sink Press Machine
Deep Throat Press Machine Punching for Prebending Kitchen Sink Press Machine
Deep Throat Press Machine Punching for Prebending Kitchen Sink Press Machine
Deep Throat Press Machine Punching for Prebending Kitchen Sink Press Machine
Deep Throat Press Machine Punching for Prebending Kitchen Sink Press Machine
Deep Throat Press Machine Punching for Prebending Kitchen Sink Press Machine
Deep Throat Press Machine Punching for Prebending Kitchen Sink Press Machine
Deep Throat Press Machine Punching for Prebending Kitchen Sink Press Machine
Specifications
Model NO. :
J21S-63T
Type :
Deep Throat Punching Machine
Punch Shape :
Open Punch
Slider Movement :
Single Action
Slider Drive Mechanism :
Crank Press
Controlling Mode :
Artificial
Automatic Grade :
Manual
Power Source :
Electric
Precision :
High Precision
Certification :
CE, ISO 9001
Condition :
New
Nominal Pressur :
630kn
Slide Stroke :
100mm
Max Closing Height :
360mm
Workbench Size Front and Back*Leftandrig :
430*700mm
Transport Package :
Film
Specification :
40T
Trademark :
Star Power
Origin :
China
HS Code :
8462490000
Production Capacity :
50units/Month
MOQ :
1
Price :
6000
Description
Product Description
Deep throat press machine Punching for Prebending kitchen sink press machine.We can provide supporting molds

Working principle and usage of presses
This press is crank as a working mechanism,crank for the steel,so the movement of the  slider is mandatory,slider per minute trips  and  slide
motion curve is constant.
The pressure machine is suitable for cutting,punching,blanking,bending and shallow drawing,stamping,but it does not apply to printed works.
When working in all kinds of stamping presses,stamping force required  (including RMA)is less than the maximum nominal power of the press, so  as not to  damage the parts may be  calculated by reference to the relevant information.

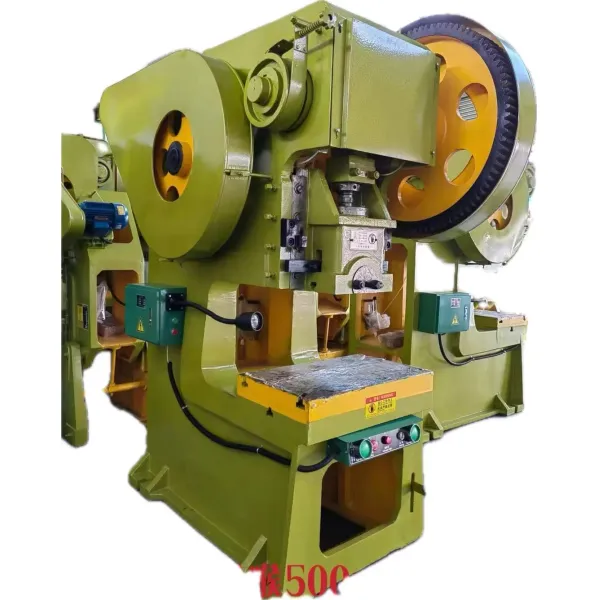

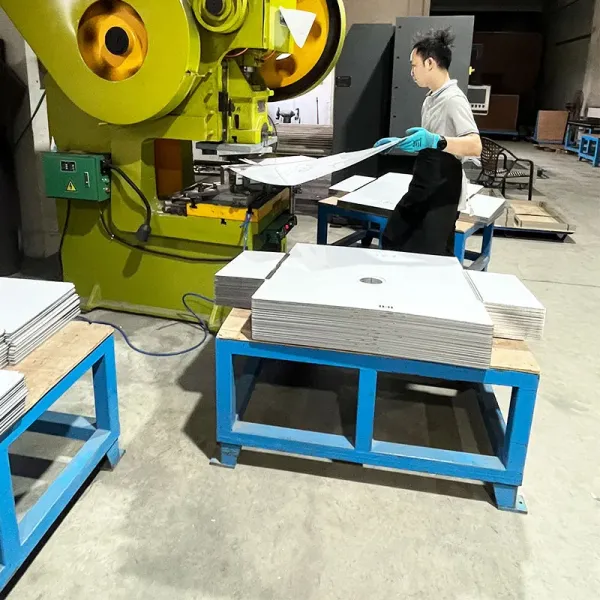

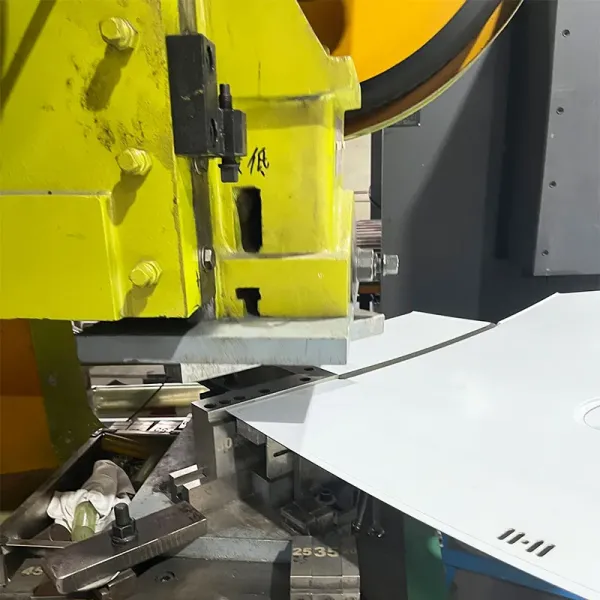

Detailed Photos

Deep Throat Press Machine Punching for Prebending Kitchen Sink Press Machine

Deep Throat Press Machine Punching for Prebending Kitchen Sink Press Machine
Deep Throat Press Machine Punching for Prebending Kitchen Sink Press Machine


Â

Product Parameters
Â
Name Unit Specification
 Nominal Pressur  Kn  630
 Slide Stroke  mm  100
 Number of Stroke  Times/min  50
Max Closing Height  mm  360
Distance adjustment betweenslider bottomand worktable  mm  60
Distance fromslider centertobody  mm  500
Workbench Size front and back*leftandright  mm  430*700
 Motor power  kw  4
Our Advantages

Foshan is a famous metal manufacturing city with mature and advanced machine technology and reasonable prices,We focus on providing kitchen supplies production solutions, including providing production machines, plant layout, production technology output, for you to save worry, labor and money, we wholeheartedly escort your career success.
Â

After Sales Service

Sufficient spare parts inventory: provide users with complete parts inventory of parts, any parts, vulnerable parts can be replaced in time, to escort the daily production of users.

 Provide 7*24 hours of after-sales online service, maximize the guarantee of users' daily production plan, after-sales problems worry worry.

Lifetime service: establish the unique coded user file of the equipment, track and record the applicable details of the equipment, and provide lifelong maintenance service for cooperative users.
