Industrial Oil Coating Machine 950mm Width 0.01-0.5mm Thickness
Industrial Oil Coating Machine 950mm Width 0.01-0.5mm Thickness
Industrial Oil Coating Machine 950mm Width 0.01-0.5mm Thickness
Industrial Oil Coating Machine 950mm Width 0.01-0.5mm Thickness
Industrial Oil Coating Machine 950mm Width 0.01-0.5mm Thickness
Industrial Oil Coating Machine 950mm Width 0.01-0.5mm Thickness
Industrial Oil Coating Machine 950mm Width 0.01-0.5mm Thickness
Industrial Oil Coating Machine 950mm Width 0.01-0.5mm Thickness
Specifications
Brand Name :
Star Power
Model Number :
PAP - ASM500
Certification :
CU, ISO
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
30 Set/Sets per Year
Delivery Time :
30-50 working days
Packaging Details :
Seaworthy Packing
Specification :
According to sinks
Description

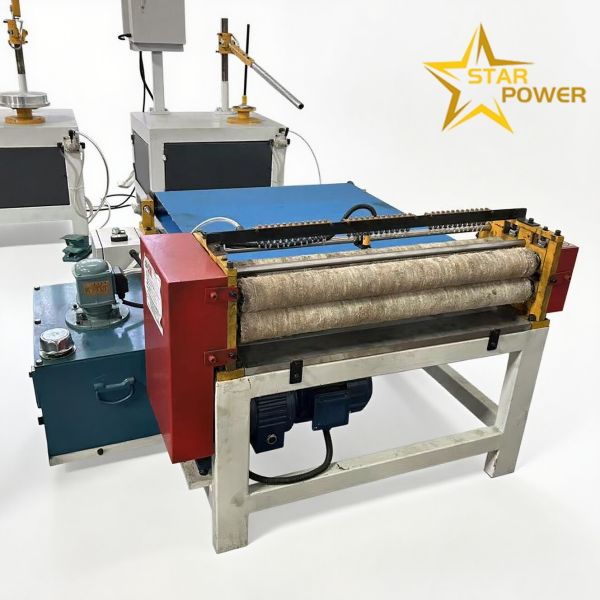

Industrial Precision Oil Spreading & Coating Machine

Product Description
The Industrial Precision Oil Spreading & Coating Machine represents a cutting-edge solution for automated, uniform oil application across diverse industrial substrates. Engineered with advanced micro-adjustment technology, this equipment delivers consistent oil spreading and thin-film coating on materials including metal alloys, composite sheets, non-woven fabrics, and plastic membranes.
Featuring a dual-roller application system with variable pressure control, the machine ensures precise oil distribution—from ultra-thin coatings (0.01mm) to medium-viscosity spreads—while minimizing waste through its integrated recirculation system. The intuitive touchscreen interface allows operators to program custom parameters, including spreading speed, oil flow rate, and roller pressure, with 0.1mm precision in width adjustment.
Constructed with corrosion-resistant stainless steel frames and high-torque servo motors, it operates reliably in high-temperature (up to 60°C) and humid industrial environments. Safety features include emergency stop buttons, overload protection, and a protective casing to prevent oil splatters. Compatible with mineral oils, synthetic lubricants, and food-grade oils, this machine is ideal for automotive part manufacturing, packaging production, textile finishing, and metal processing lines, enhancing product longevity and surface quality through controlled oil application.


Industrial Oil Coating Machine 950mm Width 0.01-0.5mm Thickness

Parameter Specification
Maximum Spreading Width 950 mm
Oil Viscosity Compatibility 5 - 500 cSt
Adjustable Coating Thickness 0.01 - 0.5 mm
Operating Speed 5 - 30 m/min
Power Supply 380V, 3-phase, 50/60Hz
Total Power Consumption 3.2 kW
Machine Dimensions (L×W×H) 1500×1000×1200 mm
Net Weight 350 kg
Production Line
Industrial Oil Coating Machine 950mm Width 0.01-0.5mm Thickness
Packing
Certifications
Industrial Oil Coating Machine 950mm Width 0.01-0.5mm Thickness
Delivery
Industrial Oil Coating Machine 950mm Width 0.01-0.5mm Thickness
