Specifications
Brand Name :
CONWIN
Model Number :
P5
Certification :
CE,ROHS
Place of Origin :
CHINA
MOQ :
1sqm
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000sqm/month
Delivery Time :
5-8 working days
Packaging Details :
wooden box or carton
Displaying Color :
281 trillion colors
Cabinet Weight :
≈ 26KG/SQM
Flatness Error :
≤0.5mm
Screen Size :
W 960× H 960 mm
Port :
Yantian(Shenzhen) Shekou(Shenzhen)
High Ligh :
Outdoor Fixed Screen P5 led screen
Viewingangle :
140° horizontal / 140° vertical
Control Mode :
Synchronous Or Asynchronous
Driving Scan :
static
Installations :
Hanging, floor-mounted, side-installing
Ip Grade :
IP65
Grey Scale :
≥16bit
Operatingtemperature :
-20°C to 50°C
Description

IP65 Outdoor Aluminum LED Screen: Lightweight & Rust-Free for Easy Installation

Outdoor IP65 Aluminum LED Display Ultra Thin Light Fixed Pantalla LED Exterior All Aluminum Panel Big AD Display Screen

Feature Description


- High brightness and super energy saving
- Ultra-light and ultra-thin
- Simple structure, full wireless, hard link, front and rear maintenance
- Good heat dissipation, no need for air conditioning
- V0 Fire-Retardant Material
- Modular aluminum bottom shell, flame retardant and fireproof, waterproof grade IP65

​

Save 30% Energy – Dual power supply + optimized circuits. Our outdoor aluminum LED display delivers exceptional brightness while consuming up to 30% less energy. Lower bills, greener operation, zero compromise.

Outdoor IP65 Aluminum LED Display Ultra Thin Light Fixed Pantalla LED Exterior All Aluminum Panel Big AD Display Screen

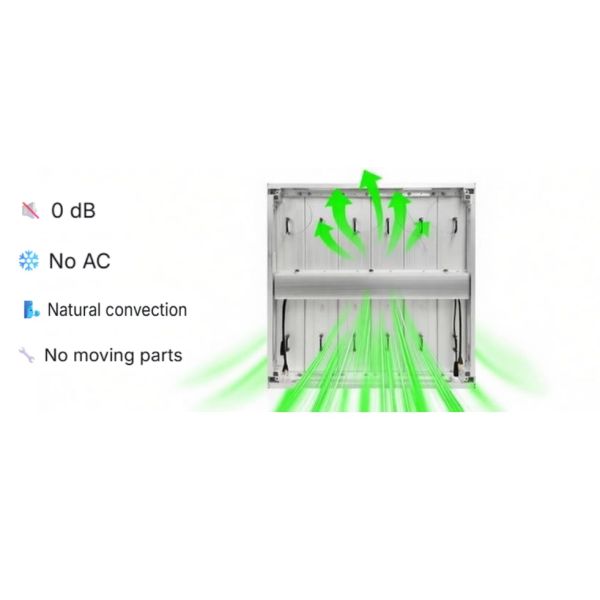

Fanless Self-Cooling – Modular design + silent thermal convection. No fans, no AC, no noise. Runs cool and quiet naturally – saving you energy and maintenance costs.

Outdoor IP65 Aluminum LED Display Ultra Thin Light Fixed Pantalla LED Exterior All Aluminum Panel Big AD Display Screen

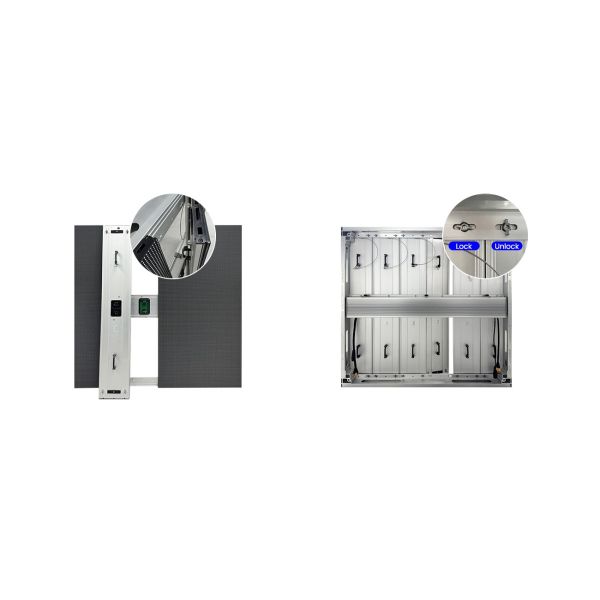

Front & Rear Maintenance – Service from either side. Simplify operation, slash installation complexity, and cut maintenance time in half. Works anywhere – even in tight spaces.

Outdoor IP65 Aluminum LED Display Ultra Thin Light Fixed Pantalla LED Exterior All Aluminum Panel Big AD Display Screen

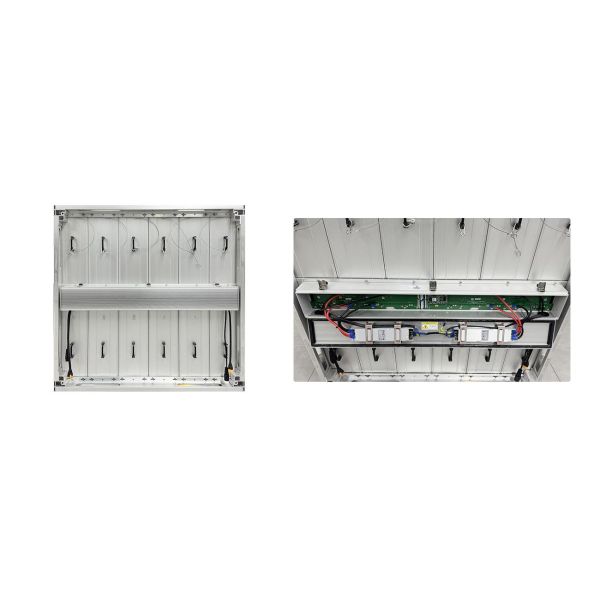

Integrated Power Box – All-in-one design. Hidden interfaces. Zero cable clutter. Clean front, clean back, clean install. Professional appearance with professional protection.

Outdoor IP65 Aluminum LED Display Ultra Thin Light Fixed Pantalla LED Exterior All Aluminum Panel Big AD Display Screen

IP65 Dustproof & Waterproof – Front & Rear

<h2 color:#333333;line-height:1;font-size:0.48rem;resize:none;position:relative;text-align:center;border-width:medium;border-style:none;border-color:currentcolor;border-image:initial;white-space:normal;background-color:#ffffff;"="" style="margin: 0px 0px 0.5rem; padding: 0px 0px 10px; box-sizing: border-box;">

Ultra-Lightweight – <26KG/m². 40% lighter than competitors. Less structural stress. Lower shipping costs. Faster installation. Light weight, heavy performance.

Outdoor IP65 Aluminum LED Display Ultra Thin Light Fixed Pantalla LED Exterior All Aluminum Panel Big AD Display Screen

Specifications

Cabinet size 640(W)*640(H)*80mm(T) 960(W)*640(H)*80mm(T) 960(W)*960(H)*80mm(T)
Cabinet resolution 256*256dots 208*208dots 384*256dots 312*208dots 240*240dots 192*192dots 144*144dots 120*120dots 96*96dots
Pixel pitch 2.5mm 3.076mm 2.5mm 3.076mm 4mm 5mm 6.67mm 8mm 10mm
Pixel sensity 160000dots/m² 105625dots/m² 160000dots/m² 105625dots/m² 62500dots/m² 40000dots/m² 22500dots/m² 15625dots/m² 10000dots/m²
LED specification 1415 SMD 1415 SMD 1415 SMD 1415 SMD 1921 SMD 1921 SMD 2727 SMD 2727 SMD 2727 SMD
Module size 160*640mm 160*640mm 160*640mm 160*640mm 160*960mm 160*960mm 160*960mm 160*960mm 160*960mm
Unit resolution 64*256dots 52*208dots 64*256dots 52*208dots 40*240dots 32*192dots 24*144dots 20*120dots 16*96dots
Weight 13kg±2kg 13kg±2kg 19kg±2kg 19kg±2kg 21.5kg±2 kg 21.5kg±2 kg 21.5kg±2 kg 21.5kg±2 kg 21.5kg±2 kg
Material Aluminum
Maintenance mode Front and rear maintenance
Best viewing distance ≥2.5m ≥3.076m ≥2.5m ≥3.076m ≥4m ≥5m ≥6.67m ≥8m ≥10m
Pixel configuration 1R1G1B
Best viewing angle 120°(H)/120°(V)
Brightness of while balance ≥4500cd/㎡ ≥6000cd/㎡
Color temperature 3500-9300K adjustable
Correcting Support correction
Deviation ≤3%
Homogeneity ≥97%
Max Power consumption 750W/㎡
Average power consumption 250W/㎡
Drive type 1/16 Scanning 1/13 Scanning 1/16 Scanning 1/13 Scanning 1/10 Scanning 1/8 Scanning 1/6 Scanning 1/5 Scanning 1/2 Scanning
Driving device IC Constant Current driver
Working voltage AC200-240V
operating environment Outdoor
Refresh frequency ≥3840Hz
Framing frequency 50/60Hz
IP Grade IP65
Storage temperature -40℃~60℃
Working temperature -20℃~50℃
Operation humidity 10%～90%
MTBF ≥5000 hours
Life span ≥50000 hours
Blind spot rate ≤1/10000
