Specifications
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
The Best Perspective :
160°(W) 120°(H)
Gray Scale :
16 bits
Delivery Time :
5-8 working days
Cabinet Material :
Die casting aluminum
Display Function :
Video,picture,Outdoor,text,graphics
Certification :
CE,ROHS
Driver Mode :
1/4 scan
Brand Name :
CONWIN
Power Supply :
Meanwell 200W
Waterproof Level :
IP65
Supply Ability :
2000sqm/month
Specification :
Video Wall
Packaging Details :
wooden box or carton
Cabinet Size :
1600*960, customzied.
Pixel Pitch :
6.67mm
Place of Origin :
CHINA
MOQ :
1sqm
Description

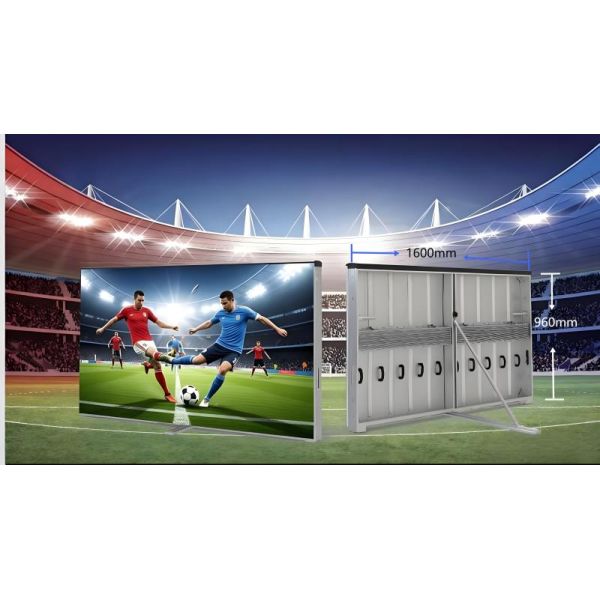

Massive 1600x960mm LED Perimeter Display – QA Series

Go big, stay slim. With a massive 1600x960mm active area and an ultra-slim 104mm depth, the QA Series delivers high-impact visibility – from dynamic advertisements to live game scores – without occupying valuable space.

Outdoor P4 P5 P6.67 P8 P10 Stadium Perimeter LED Screen 1600*960 mm Advertising Wall LED Display Panels

Game-Ready. Weather-Proof. Impact-Tough

The QA Series is purpose-built for the intensity of live sports. High brightness defeats glare; full dust/water protection braves the elements; and reinforced impact resistance handles stray balls with ease. Count on rock-solid performance, play after play.

Outdoor P4 P5 P6.67 P8 P10 Stadium Perimeter LED Screen 1600*960 mm Advertising Wall LED Display Panels

Zero Gaps. Infinite Possibilities

With precision seamless splicing technology, the QA Series eliminates unsightly gaps between cabinets. Enjoy an uninterrupted, ultra-smooth viewing surface where content flows freely—without lines breaking up the picture.

Outdoor P4 P5 P6.67 P8 P10 Stadium Perimeter LED Screen 1600*960 mm Advertising Wall LED Display Panels

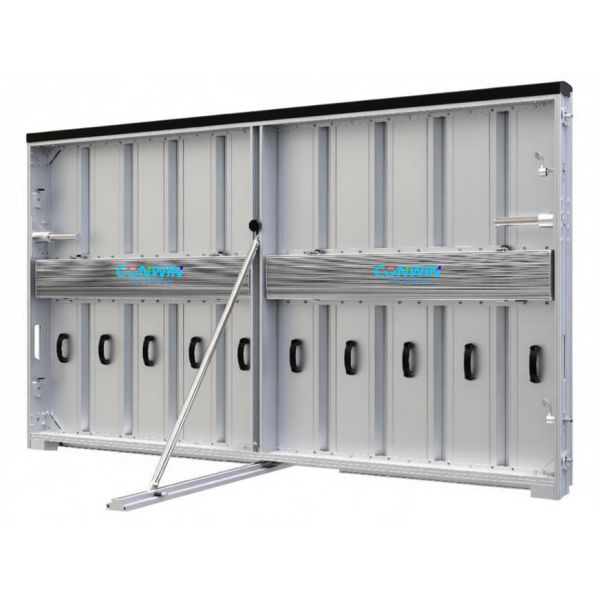

0-90° Adjustable Bracket – QA Series


One display, countless angles. The QA Series features an adjustable bracket that tilts from 0 to 90 degrees, allowing you to optimize the viewing angle for any venue or scenario. Whether it's a stadium, arena, or temporary event space, audiences always get the most comfortable and clear view.

Outdoor P4 P5 P6.67 P8 P10 Stadium Perimeter LED Screen 1600*960 mm Advertising Wall LED Display Panels

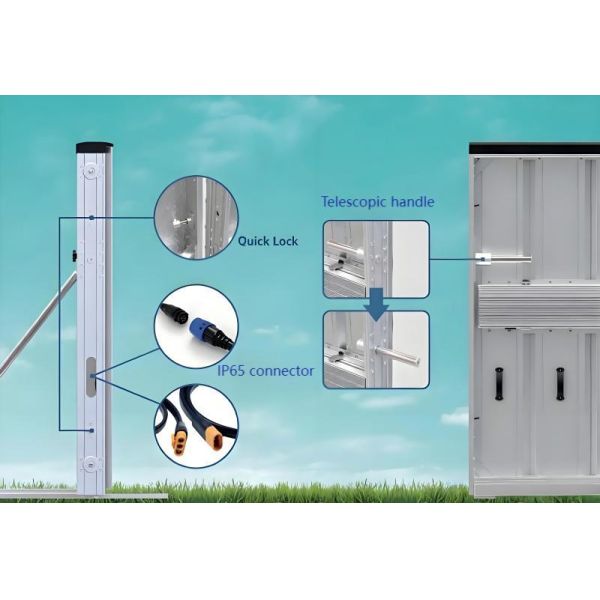

IP65 Waterproof

Rated IP65 for superior water and dust resistance. Rain, snow, or high humidity—nothing stops the QA Series from delivering crisp, reliable visuals in any outdoor environment.

Outdoor P4 P5 P6.67 P8 P10 Stadium Perimeter LED Screen 1600*960 mm Advertising Wall LED Display Panels

Specifications

Pixel pitch 6.67mm 8mm 10mm
Panel Resolution 240x144dots 200x120dots 160x96dots
LED 2727 SMD 2727 SMD 2727 SMD
Cabinet Size 1600*960mm
Cabinet Resolution 144x24dots 120x20dots 96x16dots
Material Light metal alloy material
Service Way Front and Rear
Brightness ≥6000 cd/㎡
Max Power consumption 800W/㎡
Avg Power consumption 350-400W/㎡
Working voltage 100-240V / 50-60Hz
Operating Environment Outdoor
Refresh rate ≥3840Hz
Operation power voltage 100-240V / 50-60Hz
Operational temperature -40°C to +60°C / 14°F to 104°F
Operational humidity 10-80%
IP rating IP65
Warranty 3 years
