Product Description:

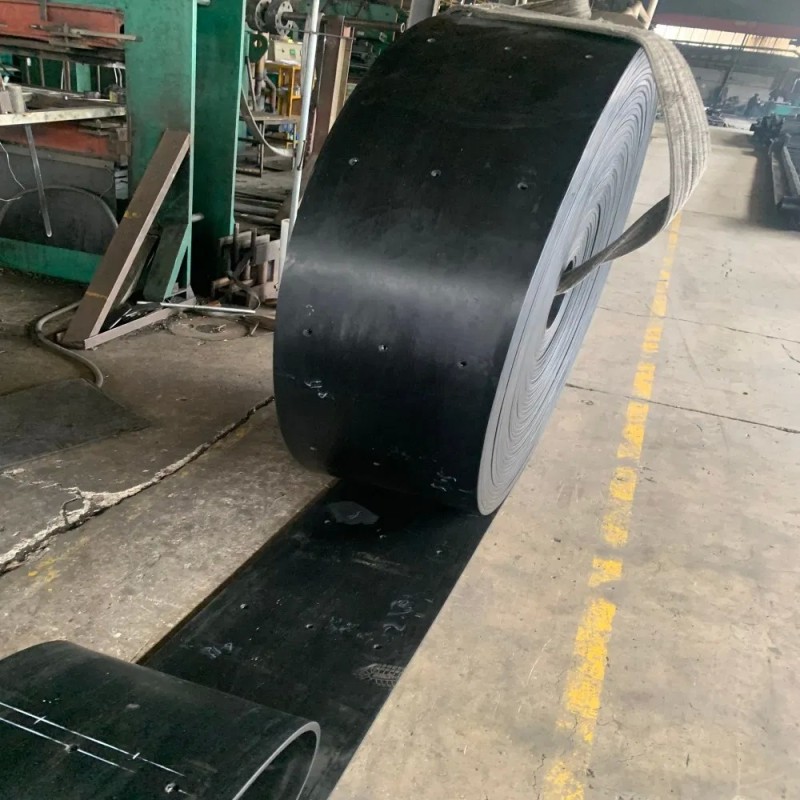

The steel cord elevator conveyor belt is a high-strength, heavy-duty rubber conveying component specially designed for vertical bucket elevators and large-inclination lifting conveyor systems. Unlike conventional fabric-layer conveyor belts, its main load-bearing structure consists of densely and parallelly arranged high-tensile steel cords embedded in a special rubber matrix.

This type of belt features extremely high tensile strength, ultra-low elongation, excellent flexural fatigue resistance and superior structural stability. It is mainly used for vertical lifting and steep-angle transportation of bulk granular materials such as coal, ore, limestone, cement clinker and chemical granules. It is widely applied in cement plants, mining, thermal power plants, chemical industry and port bulk material handling systems, serving as the core supporting component of high-altitude and heavy-load elevator equipment.

Features:

1. Extreme Tensile Strength: Handles the highest tension loads for long‑distance, single‑flight conveying without intermediate drives.
2. Minimal Elongation: Requires very short take‑up travel and maintains consistent tension, reducing downtime and maintenance.
3. Superior Adhesion: Steel cords are fully bonded to rubber, eliminating cord pull‑out and extending service life.
4. Excellent Flex Fatigue Resistance: Performs reliably around small‑diameter pulleys, enabling compact conveyor design.
5. Outstanding Impact & Tear Resistance: Absorbs heavy impacts and resists cutting from sharp materials.
6. Uniform Tension Distribution: Balanced cord layout prevents belt wandering, edge wear, and premature failure.
7. Versatile Environmental Resistance: Available in fire‑retardant, heat‑resistant, cold‑resistant, oil‑resistant, and acid/alkali‑resistant grades.
8. Easy Splicing & Repair: Compatible with mechanical clamps and vulcanized splices for fast field maintenance.

Applications:

1. Cement Industry: The most widely used scenario, applied to vertical bucket elevators for raw meal, cement clinker and finished cement lifting.
2. Mining Industry: Vertical lifting of iron ore, copper ore, non-ferrous metal ore, mineral powder and coal raw materials.
3. Thermal Power Industry: Lifting and conveying of raw coal, fly ash, desulfurized limestone powder and other materials.
4. Chemical & Building Materials Industry: Vertical transportation of granular chemical raw materials, fertilizer particles, building materials powder and other bulk materials.

Key Technical Specifications:

Strength Grade: Marked by ST series, including ST800, ST1000, ST1250, ST1600, ST2000, ST3500 etc. The higher the ST value, the greater the tensile strength and the higher the applicable lifting height.

Standard Belt Width: 250mm, 300mm, 350mm, 400mm, 500mm, 650mm, 800mm,1000mm,1200mm,1600mm,1800mm; non-standard customized widths are available according to equipment requirements.

Cover Rubber Thickness: Working side (material carrying side): 4.0–8.0mm; Running side (pulley contact side): 4.0–6.5mm. The thickness can be thickened for heavy and sharp material working conditions.

Steel Cord Structure: Uniform parallel arrangement with fixed pitch, ensuring uniform stress of the whole belt and no local stress concentration.

FAQ:

Q1: What is the brand and model number of the steel cord rubber conveyor belt?

A1: The steel cord rubber conveyor belt is branded MWIN and the model number is ST1600.

Q2: Where is the MWIN steel cord rubber conveyor belt manufactured?

A2: This conveyor belt is manufactured in China.

Q3: What certifications does the MWIN ST1600 conveyor belt have?

A3: The MWIN ST1600 steel cord rubber conveyor belt is ISO90001 certified.

Q4: What is the minimum order quantity and price range for this conveyor belt?

A4: The minimum order quantity is 100 meters, and the price ranges from USD 20 to 130 per meter depending on specifications.

Q5: What are the packaging and delivery details for the MWIN ST1600 conveyor belt?

A5: The belt is packed in export packaging and the delivery time is typically between 10 to 30 working days.

Q6: What payment terms does MWIN accept for the steel cord rubber conveyor belt?

A6: Payment can be made via T/T (Telegraphic Transfer) or L/C (Letter of Credit).

Q7: What is the monthly supply capacity for the MWIN ST1600 conveyor belt?

A7: MWIN can supply up to 20,000 meters of the steel cord rubber conveyor belt per month.
