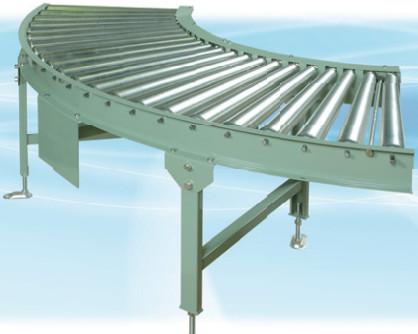

CTS150 150kg/M 90 Degree Turning 0.2KW Live Roller Conveyor
CTS150 150kg/M 90 Degree Turning 0.2KW Live Roller Conveyor
CTS150 150kg/M 90 Degree Turning 0.2KW Live Roller Conveyor
CTS150 150kg/M 90 Degree Turning 0.2KW Live Roller Conveyor
CTS150 150kg/M 90 Degree Turning 0.2KW Live Roller Conveyor
CTS150 150kg/M 90 Degree Turning 0.2KW Live Roller Conveyor
Specifications
Brand Name :
pengya
Model Number :
CTS150
Certification :
ISO
Place of Origin :
shanghai
MOQ :
one unit
Price :
Please Contact Us For The Price
Supply Ability :
For more than a week
Delivery Time :
about week days
Packaging Details :
wood
Payment Terms :
TT,TLC,
Description

CTS150 Maximum handling weight(150kg/m) steel material the most suitable 90° turning chain conveyor for carrying boxes

Standard style:

Type CTS150
Transporting conveyor

Main style

 Maximum handling weight(kg/m) 150
Wheel size D×t(mm) Φ42.7*2
Shaft diameter d(mm) φ12(pipe)
Frame sizeF×G×T(mm) [124(110)×30×3.2
Actual wheel size, width(mm) W-3.5
Machine width MW(mm) W＋103
Machine internal width NW(mm) W＋43
Sprocket size(mm) No.40×N10
Sprocket material steel

Production range

 Roller width W(mm) 400-500-600-700-800
Roller interval P(mm) 75-100
Machine length L(mm) R900-A90°
Machine height H(mm) 480~1000
Motor capacity (kW) 0.2・0.4
Handling speed(m/min) 5~32
Power supply (v) 200・220


Dimensions:

CTS150 150kg/M 90 Degree Turning 0.2KW Live Roller Conveyor

Product Description:
1. The main structure of the equipment is made of high-strength plate bending and robot welding;
2. The rollers adopt galvanized pipe, which has high corrosion resistance .
3. Adopt the most advanced CNC bending machine to bend;
4, Suitable for conveying all kinds of flat materials, the transmission is flexible and not deviation. Such as: carton, wood, ceramics, etc.;
5, The main beam feet spray plastic, roller surface electroplate, with good anti-rust effect,and more durable;
6, The height of the feet can be adjusted to meet the uneven ground demand.

Note:If you are the ultimate owner,You can contact us to choose the model.
